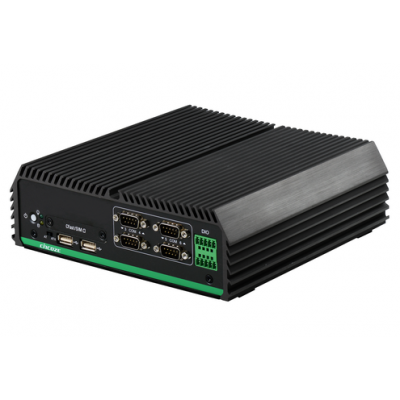

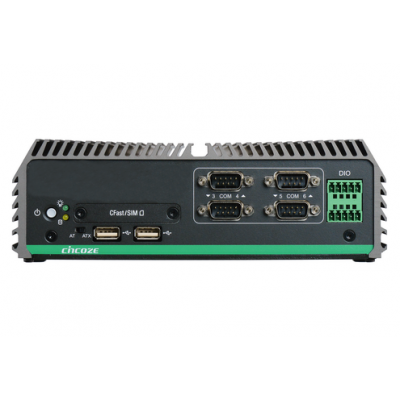

Endüstriyel Mobil Bilgisayar

DE-1000

Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer

ÜRÜN ÖZELLİKLERİ

  • Onboard Intel® Atom™ E3845 Processor Quad Core 1.91GHz
  • 2x DDR3L SO-DIMM Max. up to 8GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Port Support Wake-on-LAN and PXE
  • 1x USB 3.0 and 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay
  • 1x mSATA (Shared by Mini-PCIe Socket)
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi GSM or I/O Expansion
  • Power Ignition Control
  • Compliant with EN50155 for Rail Transportation Applications
DE-1000
DE-1000
DE-1000
Teklif Al
PDF
Endüstriyel Mobil Bilgisayar

DE-1000

DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability.

Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.

Supporting up to 6x LAN or 4x PoE versions, and power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.

DE-1000 series supports wide temperature range from -25°C to 70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50155 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.

DE-1000
DE-1000
DE-1000
Teklif Al
PDF
Available Models
Model No. Product Description
DE-1000 Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer
Package Checklist
DE-1000
√ DE-1000 Embedded System x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1
Optional Accessories
Model No. Description
GSM60A12-CIN Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M
VESA-DE DE series VESA Mount Kit
SIDE-DE DE series SIDE Mount Kit
DINRAIL Diamond series DIN-RAIL Mount Kit
59381560000E MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM
N0307-140507-01 DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm
Endüstriyel Mobil Bilgisayar

DE-1000

Daha Fazla
DE-1000
DE-1000
DE-1000
Teklif Al
PDF

Ürün Özellikleri

Model Name DE-1000
Processor System
CPU Intel® Atom™ E3845
Frequency 1.91 GHz
Core Number 4
BIOS AMI 64Mbit SPI
Chipset –
Memory
Technology DDR3L 1066 / 1333MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 2x 204-Pin SO-DIMM
Display
VGA Yes (with optional split cable)
DDI (HDMI/DVI/DisplayPort) 1x DVI-I

1x DisplayPort
Multiple Display Support Dual Display
Expansion
PCI –
PCIe –
Mini PCIe 2x Full-size Mini PCIe
Ethernet
Controller GbE1: Intel® i210-AT

GbE2: Intel® i210-AT

Support Wake-on-LAN and PXE
PoE –
Speed 10/100/1000 Mbps
Audio
Codec Realtek ALC888S
Connector 1x Mic-in, 1x Line-out
WatchDog Timer Software Programmable Supports 1~255 sec. System Reset
Storage
SSD / HDD 2x 2.5″ SATA HDD Bay
mSATA 1x mSATA (shared by Mini-PCIe socket)
CompactFlash/CFast 1x CFast
SIM Socket 1
I/O Ports
USB 3.0 1
USB 2.0 4
DIO 4 in/4 out
COM Port 6x RS-232/422/485
PS/2 1x KB/MS
Antenna Hole 2
Power Switch 1
AT/ATX Switch 1
External Fan Connector –
Remote Power On/Off and

Remote Power Reset

 Yes
Universal I/O Bracket –
Power
Power Type AT, ATX
Power Supply Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Environment
Operating Temperature Ambient with air flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -30°C to 85°C
Relative Humidity 10%~95% (non-condensing)
Physical
Dimension (WxDxH) 203 x 200 x 65 mm
Weight 2.84 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mounting (Optional Side / VESA / DIN-Rail Mounting)
Operating System
Microsoft® Windows® Windows® 10

Windows® 8

Windows® Embedded 8 Standard

Windows® 7

Windows® Embedded Standard 7
Linux® Linux® Ubuntu 14.04
Regulations
Safety Certifications CE

FCC Class A

EN 50155

EN 50121-3-2
