Endüstriyel Mobil Bilgisayar

CV-W121 / P2002

Intel® 6th Generation Core™ U Series (Skylake)


  • 21.5″ Full HD TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • 2x DDR4 SO-DIMM Socket Support Up to 32 GB
  • Integrated Intel® HD Graphics 520 Support Triple Display
  • 2x 2.5” SATA HDD Bay 1x mSATA and 1x CFast Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Support CFM Technology for PoE and Ignition Sensing Functions
  • Rich I/O (2x GbE LAN 6x COM 5x USB 16x Isolated DIO)
  • Support Instant Reboot Technology
  • Wide Operating Temperature (0°C to 60°C)
  • SuperCap integrated for CMOS Battery Maintenance-Free
Endüstriyel Mobil Bilgisayar

CV-W121 / P2002

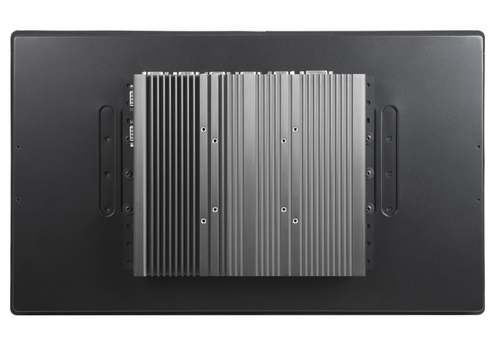

Cincoze CV-W121/P2000 Series is a 21.5” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.

The CV-W121/P2000 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. Inaddition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-W121/P2000 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.

The CV-W121/P2000 Series is a truly rugged computing system supporting wide operating temperature from 0°C to 60°C, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-W121/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.

Available Models
Model No. Product Description
CV-W121R-R10/P2002-i5-R10 21.5″ TFT Full HD 16:9 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer,CFM Interface,CDS Interface
CV-W121C-R10/P2002-i5-R10 21.5″ TFT Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
Package Checklist
√Panel PC x 1
√Utility DVD Driver x 1
√Power Terminal Block Connector x 1
√Screw Pack x 1
√Panel Mounting Kit x 1
√Fan Terminal Block Connector x 1
√DIO Terminal Block Connector x 2
√Power On/Off Terminal Block Connector x 1
Optional Modules
Model No. Description
CFM-IGN100 CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100 PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For CV-100/P2002 only)
MEC-COM-M212-0503 Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (154 x 17 mm)
MEC-COM-M334-0504 Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm)
MEC-FIR-M003-0501 Mini-PCIe module with 1x 1394A Port, 2x 1394B Ports, 1x Universal bracket (154 x 17 mm)
MEC-LAN-M002-R1-0511 Mini-PCIe module with 2x LAN Ports, 1x Universal bracket (154 x 17 mm)
MEC-USB-M002-0514 Mini-PCIe module with 2x USB 3.0 Ports, 1x Universal bracket (154 x 17 mm)
RC-E4-01 Riser Card 1 x PCIex4
RC-PI-101 Riser Card 1 x PCI

Optional Accessories

Model No. Description
GS120A24-CIN1 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3 US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M

Ürün Özellikleri

Model Name CV-W121/P2002
LCD Size 21.5″ (16:9)
Max. Resolution 1920 x 1080
Brightness (cd/m2) 300
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF 50,000 hrs (LED Backlight)
Resistive 5-wire V
Projected Capacitive V
Processor System
  • Onboard 6th Intel® Core™ U processors (Skylake)
  • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
  • TDP: 15 W
  • 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type)
  • Intel® HD Graphics 520
  • Triple display with 1x VGA, 1x DVI-D and 1x CDS interface
  • Realtek® ALC888-GR
  • High Definition Audio
I/O Interface
  • 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15
  • 1x DVI-D (Up to 1920 x 1080 @ 60Hz)
  • 1x CDS Interface, Compact PCI Connector
  • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45
    •  GbE1: Intel I219LM
    • GbE2: Intel I210AT
  • 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
  • 4x USB 3.0, Type-A
  • 1x USB 2.0, Type-A
  • 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x Power On/Off Switch
  • 1x Reset Button
  • 1x AT/ATX Switch
  • 1x Remote Power On/Off Connector, 2-Pin Terminal Block
  • 1x External FAN Connector, 4-Pin Terminal Block
  • 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
  • 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
  • 1x CFast Socket (Gen3)
  • 1x CFM PoE interface
  • 1x CFM IGN interface
  • 2x Full-size Mini-PCIe Socket
  • 1x Universal I/O Bracket
  • 1x SIM Socket
  • 4x Antenna Hole
Other Function
  • Support CDS Technology
  • Support CFM Technology
  • Support Instant Reboot Technology (0.2 sec)
  • Support Power Ignition Sensing (IGN)
  • Support OSD Function
  • (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module)
  • Internal Speaker AMP 2W + 2W
  • SuperCap Integrated
  • Watchdog Timer:
  • Software Programmable Supports 1~255 sec. System Reset
Power Requirement
  • Support AT/ATX Power Mode
  • Power Input Voltage 9~48VDC
  • One 3-pin Terminal Block ConnectorOptional Power Adapter AC/DC 24V/5A 120W
  • Dimension (WxHxD): 550 x 330.5 x 88.5 mm
  • Weight: 8.48 kg
  • Die-cast Flat Surface
  • Support Panel/Wall /Arm/ VESA / Mounting
  • Fanless Design
  • Jumper-less Design
  • Reverse Power Input Protection
  • Over Voltage Protection: 58V
  • Over Current Protection: 15A
  • ESD Protection: +/-15kV (air), +/-8kV (contact)
  • Surge Protection: 3kW
Operating Stystem
  • Windows® 10
  • Windows® 8.1
  • Windows® 7
  • Linux® Kernel 4.4
  • Operating Temperature: 0°C to 60°C
  • (With extended temperature peripherals; Ambient with air flow
  • According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 80% RH @ 50°C (Non-condensing)
  • IP Level: IP65 Compliant Front Panel
  • EMC: CE, FCC Class A
