Endüstriyel Mobil Bilgisayar



  • High brightness ultra-low power LED backlight
  • Sun-readable available
  • Resistive touch IP54
  • Projected Capacitive touch IP65 Waterproof
  • 10 Steps configurable backlight dimmer and autodimmer
  • Autopower on/off by VGA signal
  • Native resolution 800x600px
  • 2xComposite Video
  • one Composite input with autopower/autoswitch
  • Power 9-36V
  • meets car/truck requirements
  • including noise/spikes filters
  • Ultra low power consumption
  • Wide temperature range
  • Shock/Vibration proof
  • Aluminium chassis and rear side

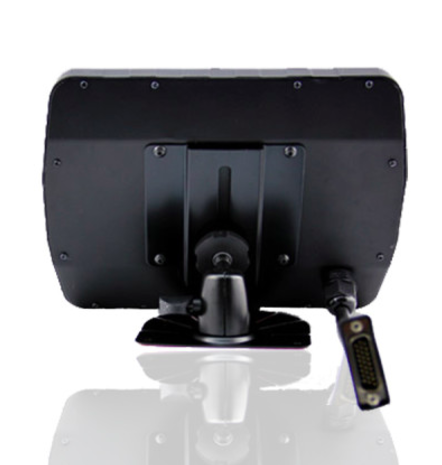

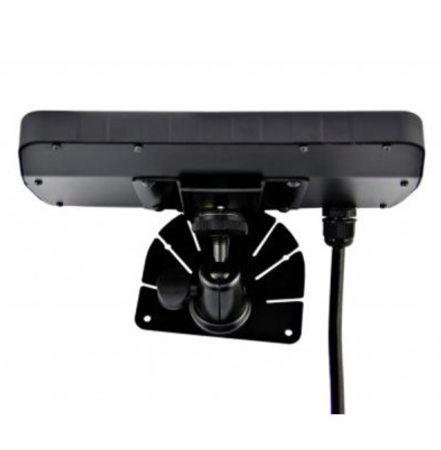

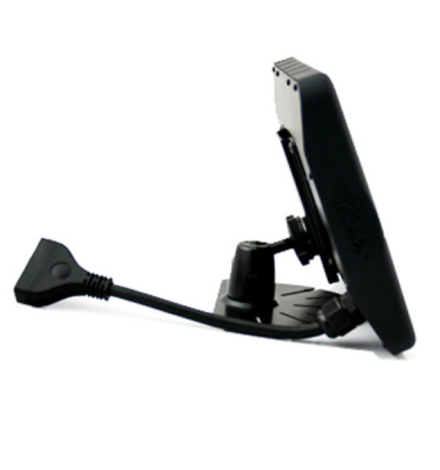

  • Headrest and stand alone mount accessories
  • Customization available for small qty
Endüstriyel Mobil Bilgisayar


XF800 series by Inelmatic Electronics, brings the possibility of installing a display which realizes a computer application in a restricted space. It’s a perfect Human Machine Interface (HMI) for restricted space and harsh environments, like personal vehicles, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sun light.

It includes a video scaler chipset supporting VESA from 640x480px up to 1920x1440px, for the most demanding image accuracy, with factory choice VGA, DVI or HDMI input.

The optional touch panel with USB or RS232 interface adds an efficient human interface which brings full interactivity and high reliability.

In addiction, the XF800 includes the last generation of LED backlight with passive enhancement, to achieve a high brightness keeping the lowest power consumption. Besides, the manual dimmer bring the possibility of match the brightness to the ambient light, it makes the display able to work from darkest conditions without disturb the driver’s visibility, up to high brightness for the strongest light environments. The waterproof robust enclosure provides IP65/EMEA4 dust/water tightness.

XF800 XX – X X X X X
    350 nits N No touch N Normal N No video N No audio 2.5 Cable 2.5m
HB 500 nits G Protecting glass D Daylight V Video input A Stereo Audio 4.5 Cable 4.5m
SHB 1000nits U USB touch S Sunlight         C Custom length
    R RS232 touch
    UP USB PCAP touch

VGA(DSUB/SCSI) / HDMI(DSUB) / DVI(DSUB) All-in-one cable avaiable

Ürün Özellikleri

Size 8 inches
Aspect 4:3
Colors 256K
Native resolution 800x600px
Resolutions 640x480px to 1920x1440px
Contrast 500:1
Storage Temp. -40ºC to 85ºC
Operation Temp. -35ºC to 70ºC
Drop 10cm max. (1cm collision to display area)
Vibrations 1G 2-500Hz
Shock 20G 11ms
Input VGA, HDMI, DVI optional
Audio input Opional
Video input 2xComposite, optional
Touch panel USB/RS232
Rear camera input Optional
Power supply 9-36V DC
