Endüstriyel Mobil Bilgisayar

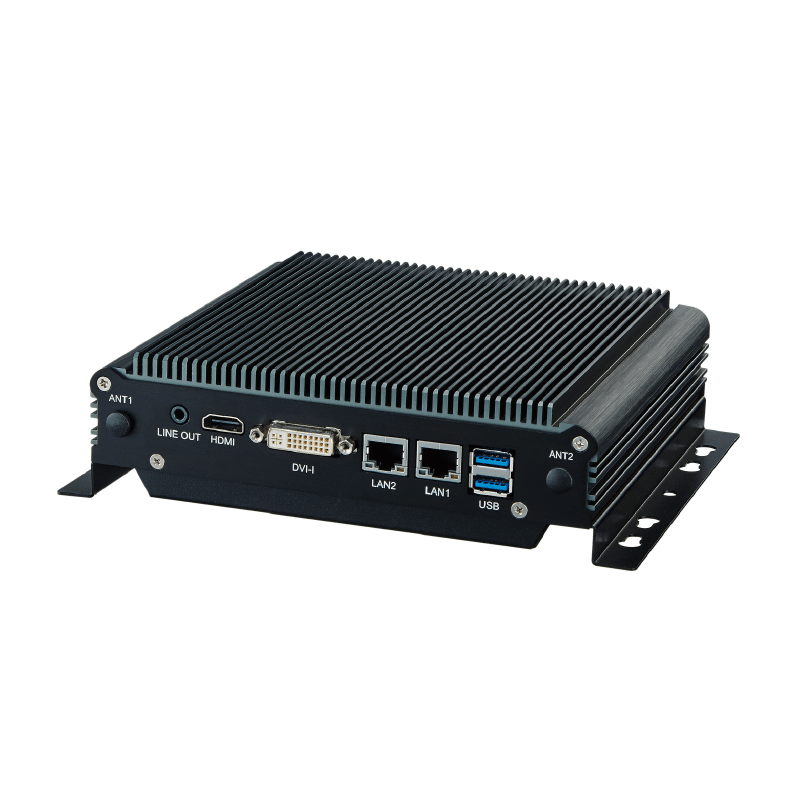

VBOX-3130

Intel Braswell N-Series Atom CPU In-Vehicle Computer with 9~36V DC Input

ÜRÜN ÖZELLİKLERİ

  • Intel N3160 Quad Core CPU up to 2.24GHz
  • Wireless support LTE 3.5G WLAN GPS GSM/GPRS Bluetooth
  • 9V – 36V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • 3 x RS-232 (COM1 & COM2 with RS232/422/485)
  • 2 x DI / 2 x DO (12V / 100mA)
  • EMark Compliance
Part Number

VBOX-3130-000

Description

Intel Braswell N-Series Atom CPU In-Vehicle Computer with 9~36V DC Input

Ürün Özellikleri

CPU Intel N3710 Quad Core CPU up to 2.56GHz

Intel N3160 Quad Core CPU up to 2.24GHz

Intel N3060 Dual Core CPU up to 2.48GHz

Memory 1 x DDR3L-1600MHz SO-DIMM up to 8GB
Graphics Intel HD Graphics
ATA 2 x Serial ATA 2.0 ports with 6GB/s HDD Transfer Rate
LAN Chipset 2 x Intel i210-AT Gigabit Ethernet
Watchdog 1 ~ 255 Level Reset
POWER REQUIREMENT
Power Input 9V -36V DC Power Input
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)

Patent No. : M447854 – Build-in Battery

I/O
Serial Port 3 x RS-232 (COM1 & COM2 with RS-232/422/485)
USB Port 3 x USB 2.0
LAN 2 x RJ45 ports for GbE
Video Port 1 x HDMI and 1 x DVI-I
GPIO Port 2 In and 2 Out (12V / 100mA)
Audio Mic-in / Line-out
Expansion Bus 3 x Mini-Card Slots
Antenna 4 x SMA-type External Antenna Connectors for WLAN/ UMTS/ GSM/ GPRS/ GPS/ Bluetooth
SIM Card Socket 2 x SIM Card sockets supported onboard with eject
MECHANICAL & ENVIRONMENTAL
Dimensions (LxWxH) 182 x 167.6 x 54 mm
Mounting Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight 1406g
Relative Humidity 10 ~ 90% (non-condensing)
Operating Temp. -40 ~ 70°C (SSD), ambient w/ air
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EMark Compliance
Patent No. (Taiwan) M447854
