Endüstriyel Mobil Bilgisayar

DA-1100

Intel® Pentium® N4200 / Celeron® N3350 Processor Affordable Fanless Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
  • Supports Triple Independent Display
  • Supports PoE+ Function (with optional CFM module)

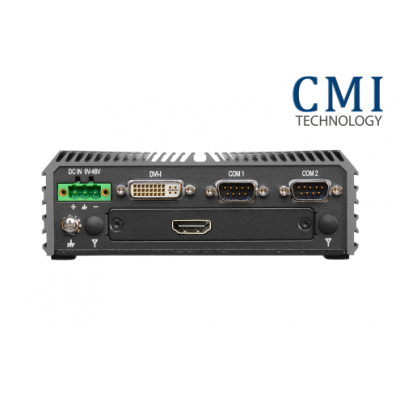

  • Supports CMI Interface for I/O Expandability
  • Ultra Compact Size (150 x 105 x 52.3 mm)
  • Wide Operating Temperature -40°C to 70°C
Endüstriyel Mobil Bilgisayar

DA-1100

Cincoze’ DA-1100 affordable fanless embedded computer is based on the Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel® SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple display support in 4K/2K UHD resolution. DA-1100 supports both Combined Multiple I/O (CMI) and Control Function Module (CFM) which are specially designed for flexible I/O and function expandabilities, such as COM ports, optical isolated digital I/O, LPT/PS2, HDMI, DisplayPort, DVI-D, VGA, and Power over Ethernet (PoE).

Leveraging a reliable fanless and durable cable-free design in an ultra-compact aluminum housing, DA-1100 is ideally for deployment in space-constrained place and continuous operation under harsh environments.

Available Models
Model Name Product Description
DA-1100  Intel® Pentium® N4200 Affordable Fanless Embedded Computer
Package Checklist
DA-1100
√ DA-1000 Embedded System x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ Remote Power On/Off Terminal Block Connector x 1
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1 (For HDD/Mini-PCIe/Wall & VESA Mounting)
√ Wall Mount Kit x 1
Optional Modules & Accessories
Model No. Description
CMI-COM102/UB0403 CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x 15 mm)
CMI-DIO100/UB0415 CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x Universal Bracket (96 x 15 mm)
CMI-DP101/UB0406 CMI Module with 1x DisplayPort, 1x Universal Bracket (96 x 15 mm)
CMI-DVI101/UB0407 CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96 x 15 mm)
CMI-LPPS102/UB0409 CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket (96 x 15 mm)
CMI-VGA101/UB0416 CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15 mm)
MEC-LAN-M002-R1/UB0411 Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96 x 15 mm)
MEC-USB-M002/UB0414 Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (96 x 15 mm)
SIDE-DA DA Series Side Mount Kit
DINRAIL Diamond Series DIN-Rail Kit

Ürün Özellikleri

Model Name DA-1100
Processor System
CPU -Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
-Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz
Frequency 1.46 GHz
Core Number 2
BIOS AMI 64Mbit SPI
Chipset
Memory
Technology DDR3L 1066MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 1x 204-Pin SO-DIMM
Display
Dual Display Supported 1x DVI-I

(1x DVI-D and 1x VGA with optional split cable)

Expansion
PCI
PCIe
Mini PCIe 2x Full-size Mini-PCIe
Ethernet
Controller 2x Intel® GbE1: Intel I210-AT GbE LAN Port.

Support Wake-on-LAN, Jumbo Frame and PXE

PoE
Speed 10/100/1000 Mbps
Audio
Codec Realtek ALC888S
Connector 1x Mic-in and 1x Line-out
WatchDog Timer
Software Programmable Supports 1~255 sec. System Reset
Storage
SSD / HDD 1x 2.5″ SATA Bay
mSATA 1x Internal mSATA / Internal SIM Socket (shared by one Mini-PCIe socket)
SIM Socket
I/O Ports
USB 3.0 4
USB 2.0 1
COM Port 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)
Antenna Hole 2
Power Switch 1
AT/ATX Switch 1
External Fan Connector
Remote Power On/Off and

Remote Power Reset

Yes
Universal I/O Bracket 1
Power Requirement
Power Type AT / ATX
Power Supply Voltage 9~48VDC
Connector 1x 3-pin Terminal Block

1x 2-pin Terminal Block Connector (For Remote Power On/Off)

Power Adaptor Optional AC/DC 12V/5A, 60W
Power Consumption Typical 8.3W, Max.15W
Environment
Operating Temperature Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 40˚C (Non-condensing)
Shock 50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
Vibration Random: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Physical
Dimension (WxDxH) 150 x 105 x 56.02 mm
Weight 0.86kg
Construction Aluminum Chassis with Fan-less Design
Mounting VESA/Wall Mounting (Optional DIN-Rail/Side Mounting)
Operating System
Windows • Windows® 10

• Windows® 8.1

• Windows® 7

Certification
EMC • CE

• FCC Class A
