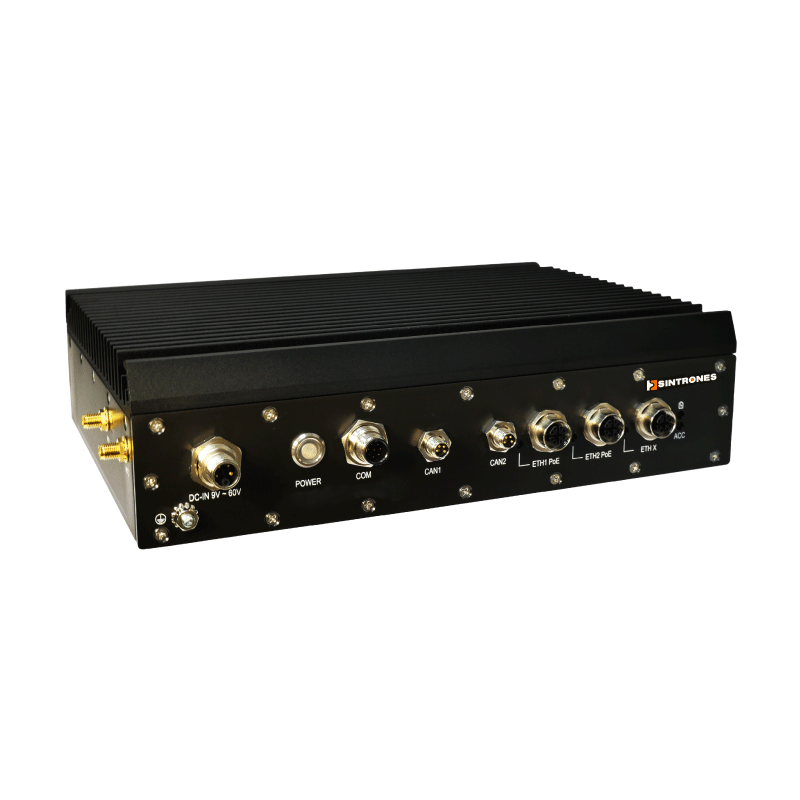

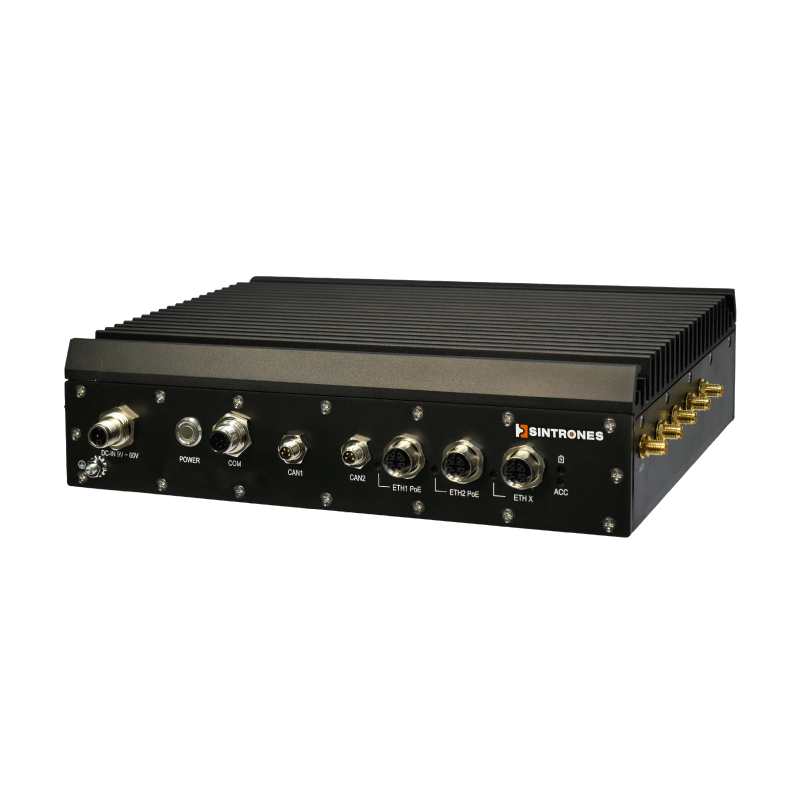

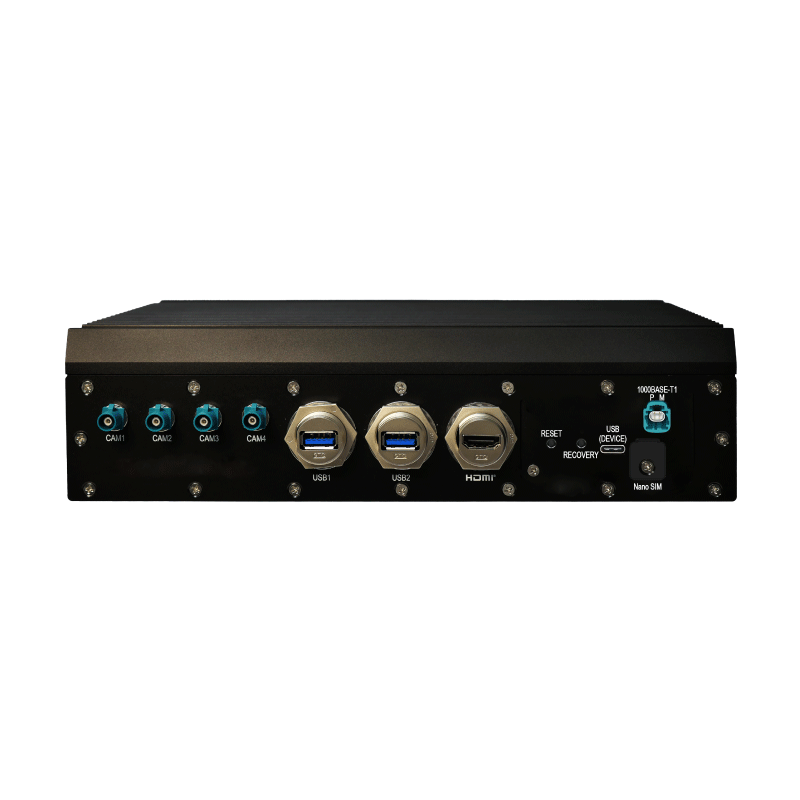

Edge AI Jetson PC

IBOX-650P-T1

NVIDIA® Jetson AGX Orin™

The IBOX-650P-T1leverages NVIDIA® Jetson AGX Orin™ module, which offers high-speed data processing with a maximum AI performance of 275 TOPS, to provide real-time response for complex problem-solving. In addition to the robust connectors carefully selected for all interfaces including power, Ethernet with PoE, USB, CAN FD, serial port, and camera, the IBOX-650P-T1is also equipped with an HCMTD connector, supporting 100BASE-T1 (IEEE 802.3bw) and 1000BASE-T1 (IEEE 802.3bp) Single Pair Ethernet (SPE) standards for automotive applications.

Edge AI Jetson PC

IBOX-650P-T1

The IBOX-650P-T1leverages NVIDIA® Jetson AGX Orin™ module, which offers high-speed data processing with a maximum AI performance of 275 TOPS, to provide real-time response for complex problem-solving. In addition to the robust connectors carefully selected for all interfaces including power, Ethernet with PoE, USB, CAN FD, serial port, and camera, the IBOX-650P-T1is also equipped with an HCMTD connector, supporting 100BASE-T1 (IEEE 802.3bw) and 1000BASE-T1 (IEEE 802.3bp) Single Pair Ethernet (SPE) standards for automotive applications.

Sipariş Bilgileri

IBOX-650P-T1 : 01-JAO64 NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE / VDB-101 / 4 x GMSL-2

IBOX-650P-T1-01-JAO32 : NVIDIA® Jetson AGX Orin™ 32GB / 1 x T1 / 1 x 10GbE / 2 x PoE / VDB-101 / 4 x GMSL-2

IBOX-650P-T1-JAO64-LE : NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE

IBOX-650P-T1-JAO32-LE : NVIDIA® Jetson AGX Orin™ 32GB / 1 x T1 / 1 x 10GbE / 2 x PoE

Description

NVIDIA® Jetson AGX Orin™ 64GB SoM w/ 1 x T1 / 1 x 10GbE / 2 x 2.5GbE / 2 x PoE / 4 x GMSL-2 / 2 x CAN FD / DC 9-60V Edge AI Computer

Optional Accessories

Storage : M.2 2280 NVMe SSD 240GB / 480GB / 960GB

Wi-Fi : M.2 2230 Wi-Fi Module

WWAN : M.2 3042/3052 WWAN Modem

GNSS : mPCIe GNSS Module

BBU : BAT-2300v2 (Operating Temp.: -10°C to 60°C /-4°F to 140°F)

Power Adapter : AC/DC 100-240V/24V 160W C14 DC plug power adapter

USB Type-A Cable : USB3.0 Waterproof (M) to USB3.0 (F); cable length: 1000mm

HDMI Type-A Cable : HDMI Waterproof (M) to HDMI (M); cable length: 2000mm
