VBOX-3611-4L

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

Intel Core i7-6600U
Wireless support LTE w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT(Optional)
9V~48V DC Power Input
Smarter Vehicle Power Ignition for Variety Vehicle
Dual Hot Swappable SATA Storage, RAID 0, 1, 5
1 x CAN Bus 2.0B (Optional)
E13 and EN50155 certified

Destekleyen İşlemciler

Teklif Al

PDF

Endüstriyel Mobil PC

VBOX-3611-4L

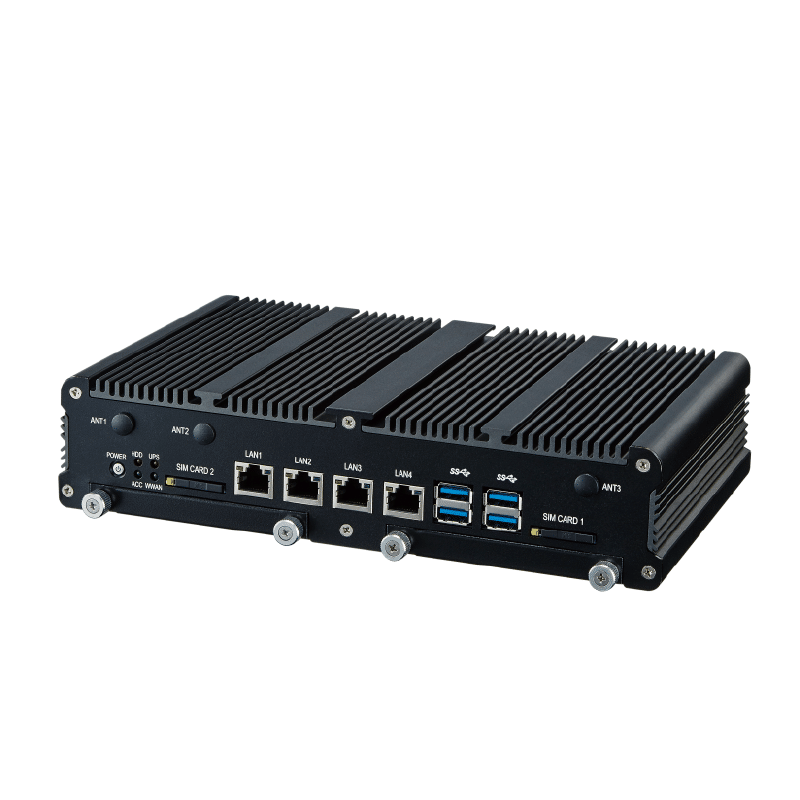

The VBOX-3611-4L is powered by Intel Gen six Core i7-6600U CPU with four GbE LAN In-Vehicle Comptuer. It is designed for a wide range of DC power inputs 9V~48V DC which are isolated for power, serial and I/O port. It features an optional CAN Bus 2.0B port and wireless communication technology, offers wireless support LTE with SIM card, WLAN, GPS Dead Reckoning, and BT (Optional). It is E13 and EN50155 certified. VBOX-3611-4L provides four GbE, including one with iAMT. It features smart vehicle power ignition, power management for a variety of vehicles, and it can be adapted to the needs of any vehicle management systems, tracking the trains’, cars’, or trucks’ internal hardware and software states, usage and movement.

Teklif Al

PDF

Sipariş Bilgileri

VBOX-3611-4L

Endüstriyel Mobil PC

VBOX-3611-4L

VBOX-3611-4L Datasheet

Daha Fazla

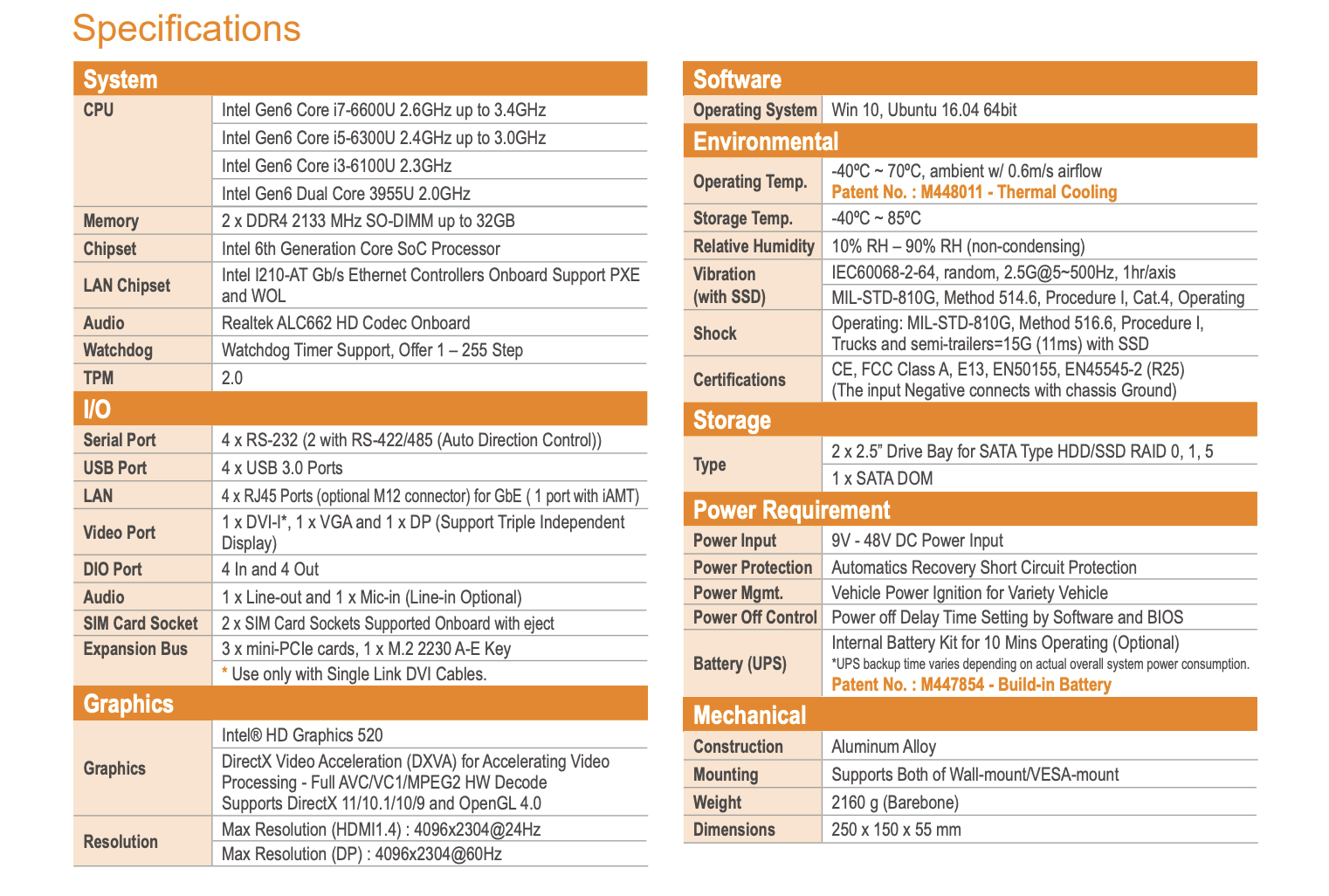

Ürün Özellikleri
