VBOX-3131-2S

Ürünlere Dön

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

Endüstriyel Mobil PC

Intel® N3060 Dual Core CPU up to 2.48GHz

• Intel Celeron Processor N3060, Up to 2.48 GHz

• Wireless support 5G / LTE / GPS, Wi-Fi + Bluetooth (by optional M.2 modules)

• 9V – 60V DC Power Input

• Smarter Vehicle Power Ignition for Variety Vehicle

• Ultra-compact Design 150 x 135 x 55.3 mm

• Battery Backup (optional)

Teklif Al

PDF

Endüstriyel Mobil PC

VBOX-3131-2S

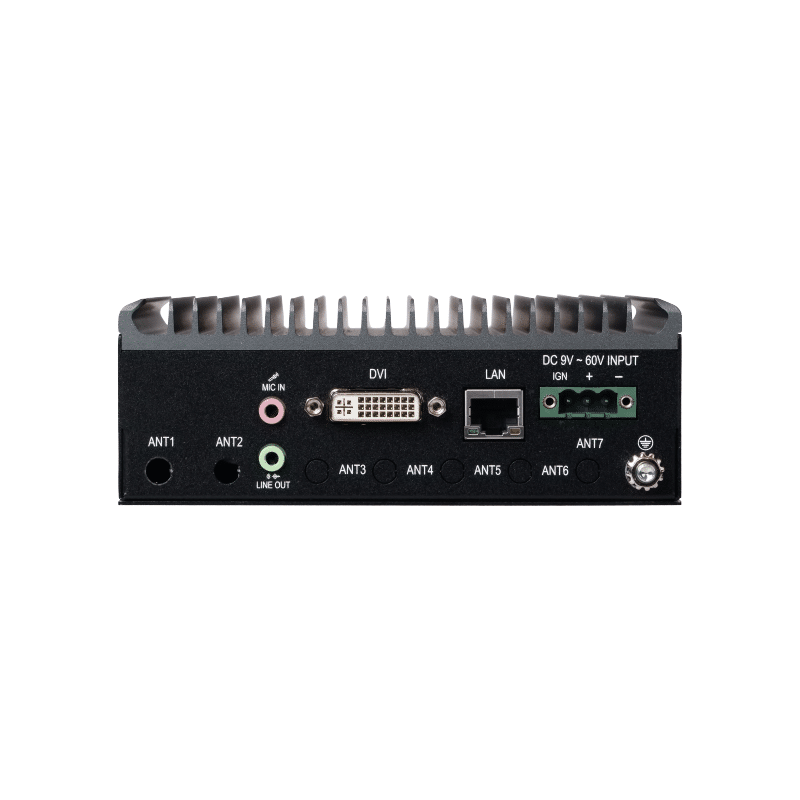

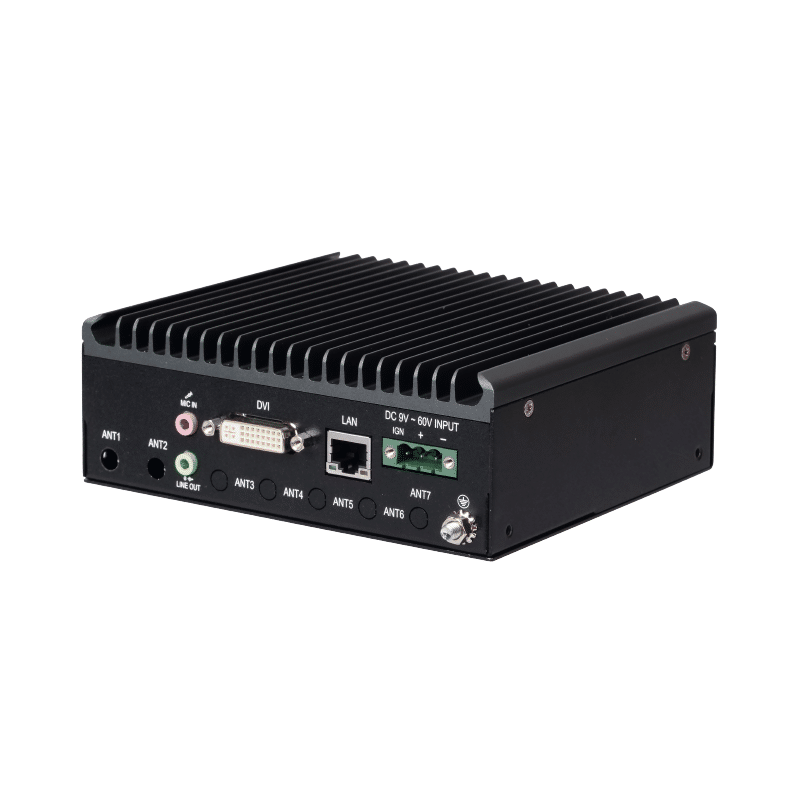

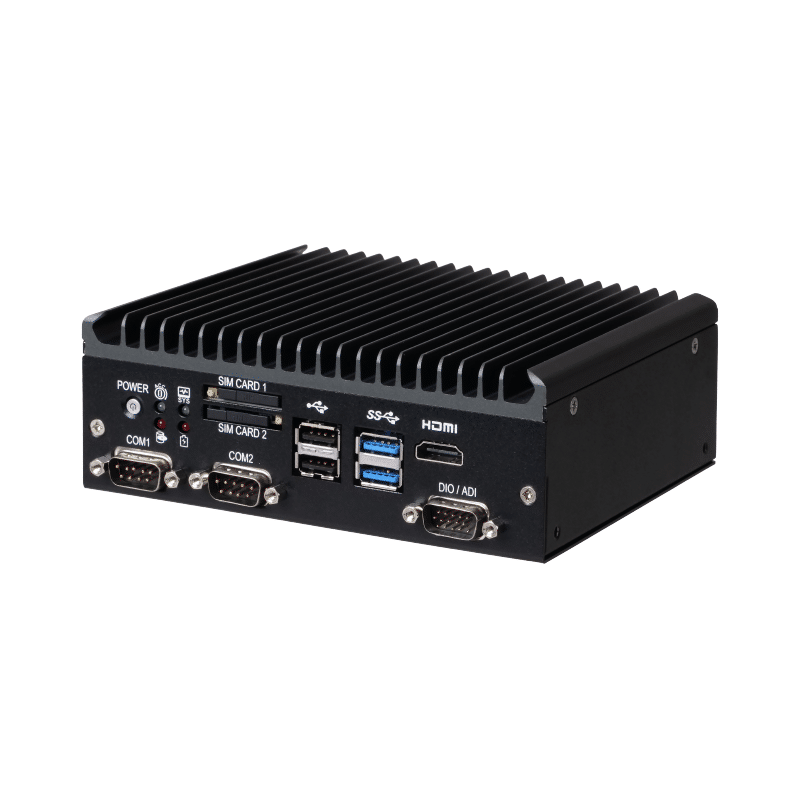

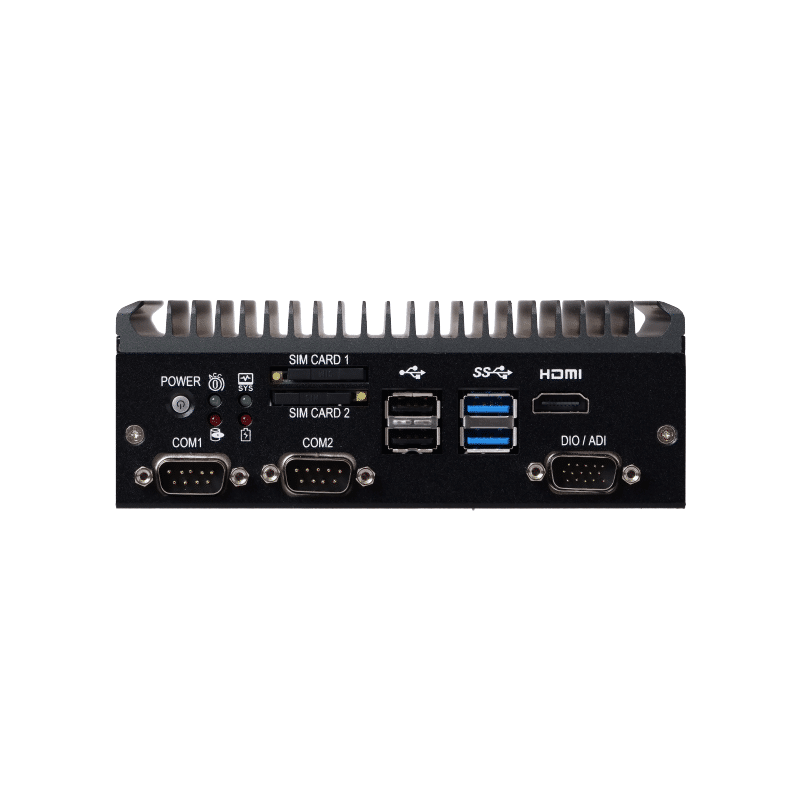

VBOX-3131 is an ultra-compact size fanless In-Vehicle Computer with 5G connectivity. It utilizes Intel® Celeron® N3060 Dual-Core CPU up to 2.48GHz. VBOX-3131 features an ultra-compact design measuring 150 x 120 x 53mm, which can easily fit into restricted spaces. As robust connectivity, the system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth by M.2 modules. It is a building-in dual independent DVI-D, audio line out, and microphone In, the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in variety of vehicles.VBOX-3131 can effectively support cars in extreme weather and operating conditions, such as snowplows, Trucks, Buses, taxis, and Forklifts. With Intel® N3060, VBOX-3131 has wireless connectivity such as 5G, LTE, Wi-Fi, Bluetooth, and an ultra-compact enclosure with dual DVI-D and Audio. Sintrones’ VBOX-3131 is a compact and versatile in-vehicle computer that can fuel various transportation systems.

Teklif Al

PDF

Sipariş Bilgileri

VBOX-3131-2S

Endüstriyel Mobil PC

VBOX-3131-2S

VBOX-3131-2S Datasheet

Daha Fazla

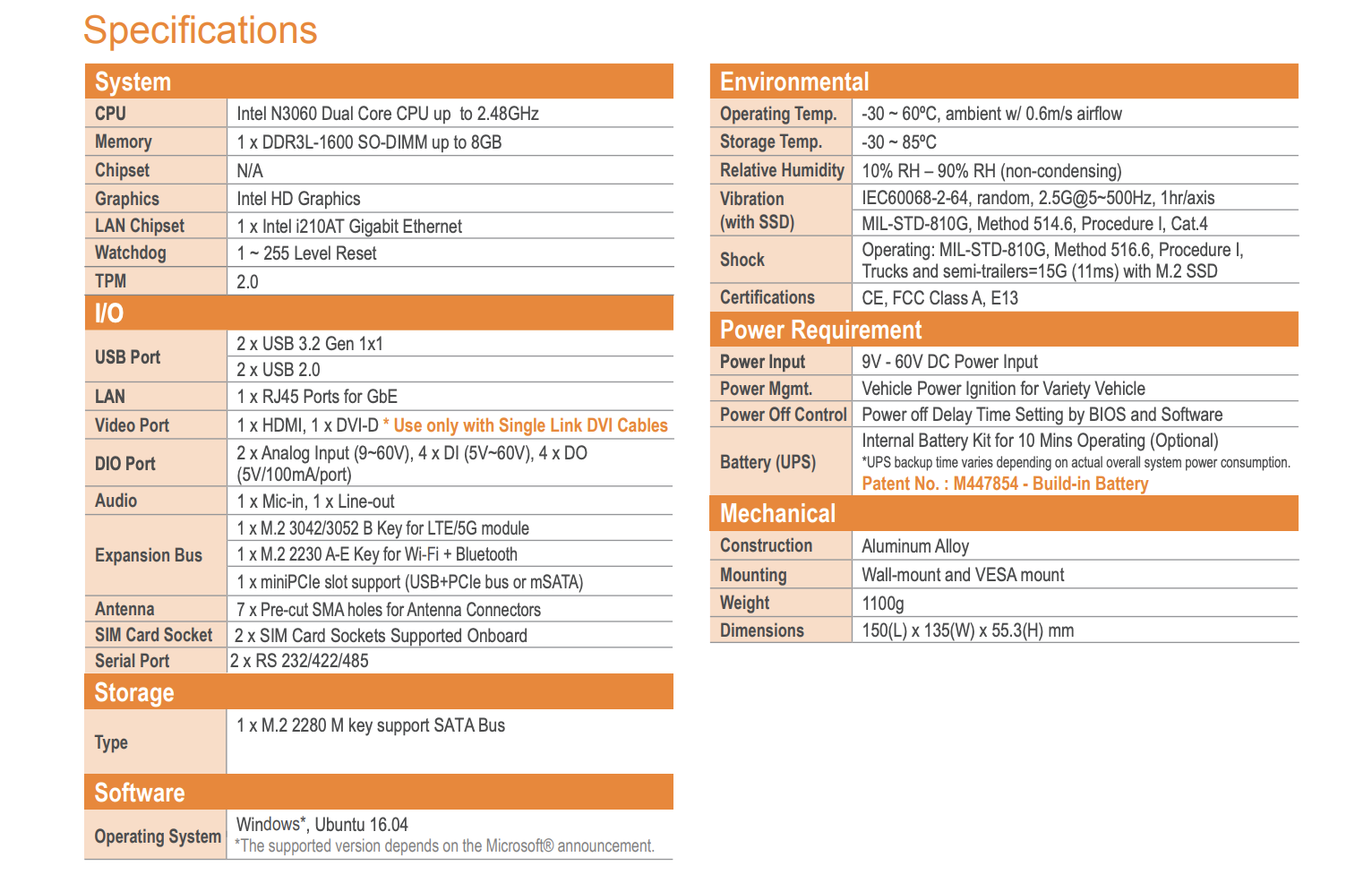

Ürün Özellikleri
