Askeri PC

ABOX-5200(P)

Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz) Intel® Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz) Intel® Gen8 Core i3-8100T (6M Cache 3.1GHz) Intel® Gen8 Celeron G4900T (2M Cache 2.9GHz)

  • Intel® 8th Gen Core i7/i5/i3
  • 10 x GbE LAN (Optional for 8 x PoE)
  • 8 x GPI, 4 x GPO and 3 x RS-232/422/485
  • 3 x Display Ports
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40°C~70°C
  • TPM 2.0
ABOX-5200(P)
ABOX-5200(P)
Teklif Al
PDF
Askeri PC

ABOX-5200(P)

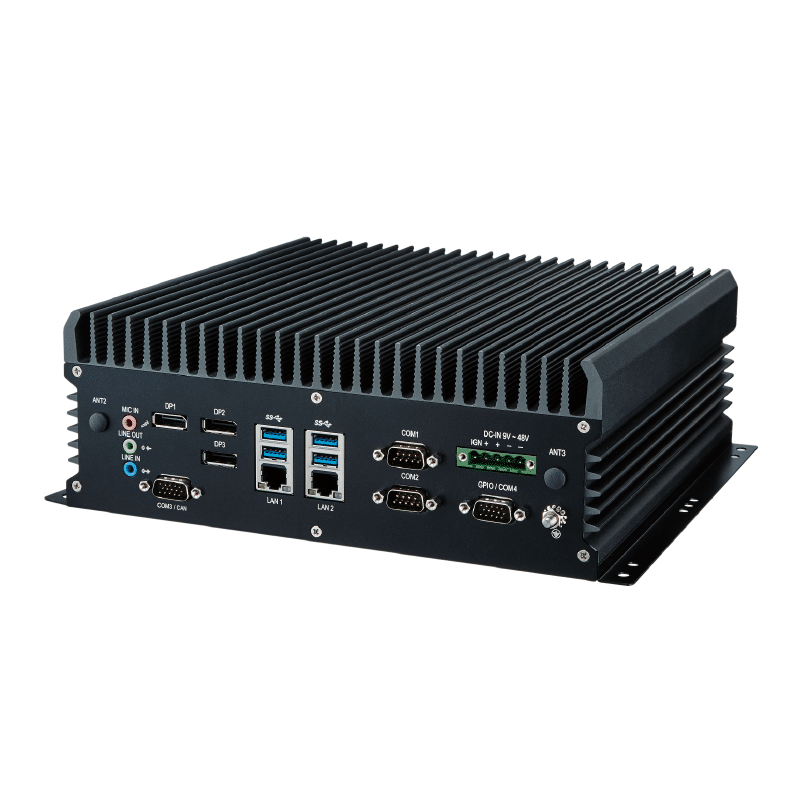

The ABOX-5200 is powered by Intel® Coffee Lake 8th Gen Core i7/i5/i3 CPU with 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer. It can provide high computing performance on graphic processing by harnessing the power of its graphics processing unit (GPU). ABOX-5200 fanless box computers feature the Dual Hot Swappable SATA Storage RAID 0,1,5, which allows more flexibility for hardware maintenance and expansion. ABOX-5200 offers the best solution for customers and it can be adapted to various industrial requirements, including: Smart solutions (Smart Patrol, Smart Factory Automation Control System), Surveillance system (Bus Surveillance Fleet Management, Outdoor Video Surveillance System), and Visual management (Automatic License Plate Recognition, Vision Control System, Mining Machines).
