Askeri PC

ABOX-5100(P)

AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHZ)

  • AMD RyzenTM Embedded V1000 Platform
  • Vega GPU with up to 11 Compute Units and 4 x DP 1.4
  • 8 x GPI, 4 x GPO and 3 x RS-232/422/485
  • Dual Hot Swappable SATA Storage
  • 9-48V DC Input and Operating Temp.: -40°C~70°C
  • 8 x GbE LAN (Optional for 8 x PoE)
ABOX-5100(P)
ABOX-5100(P)
Teklif Al
PDF
Askeri PC

ABOX-5100(P)

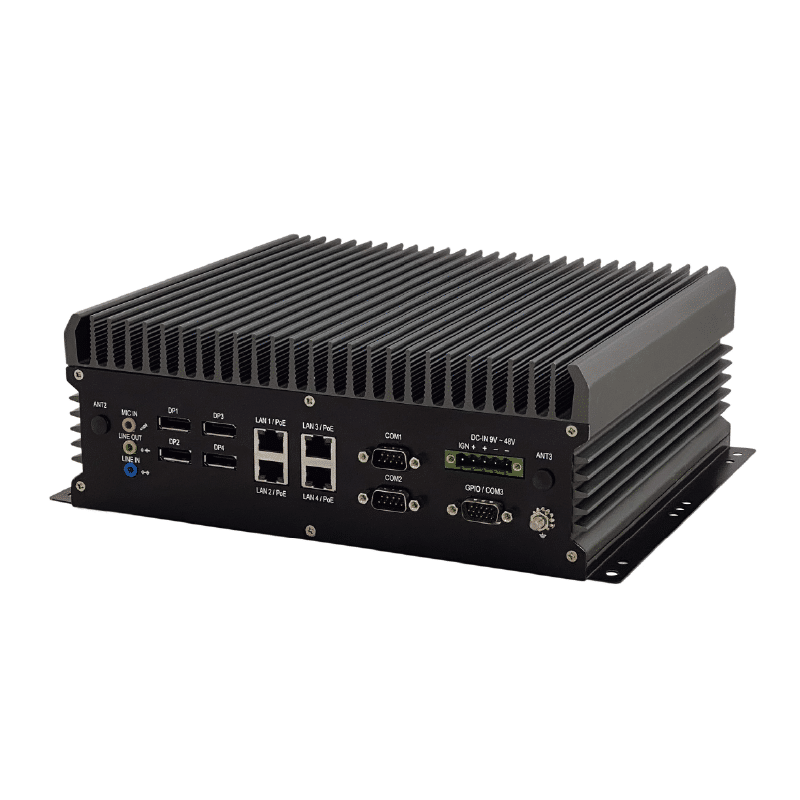

The ABOX-5100(P) is powered by AMD Ryzen Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer. ABOX-5100(P) provides the Dual Hot Swappable SATA Storage RAID 0,1,5, which provides more flexibility for hardware maintenance and expansion. These computers can be operated in extreme weather conditions (operating temperature: -40°C ~ 70° C) and can be adapted to various industrial requirements such as Smart Patrol, Smart Factory Automation Control System, Surveillance System as well as Visual Management System such as Automatic License Plate Recognition, Mining Machines, and Vision Control System.

ABOX-5100(P)
ABOX-5100(P)
Teklif Al
PDF
Sipariş Bilgileri

ABOX-5100(P)

Askeri PC

ABOX-5100(P)

Daha Fazla

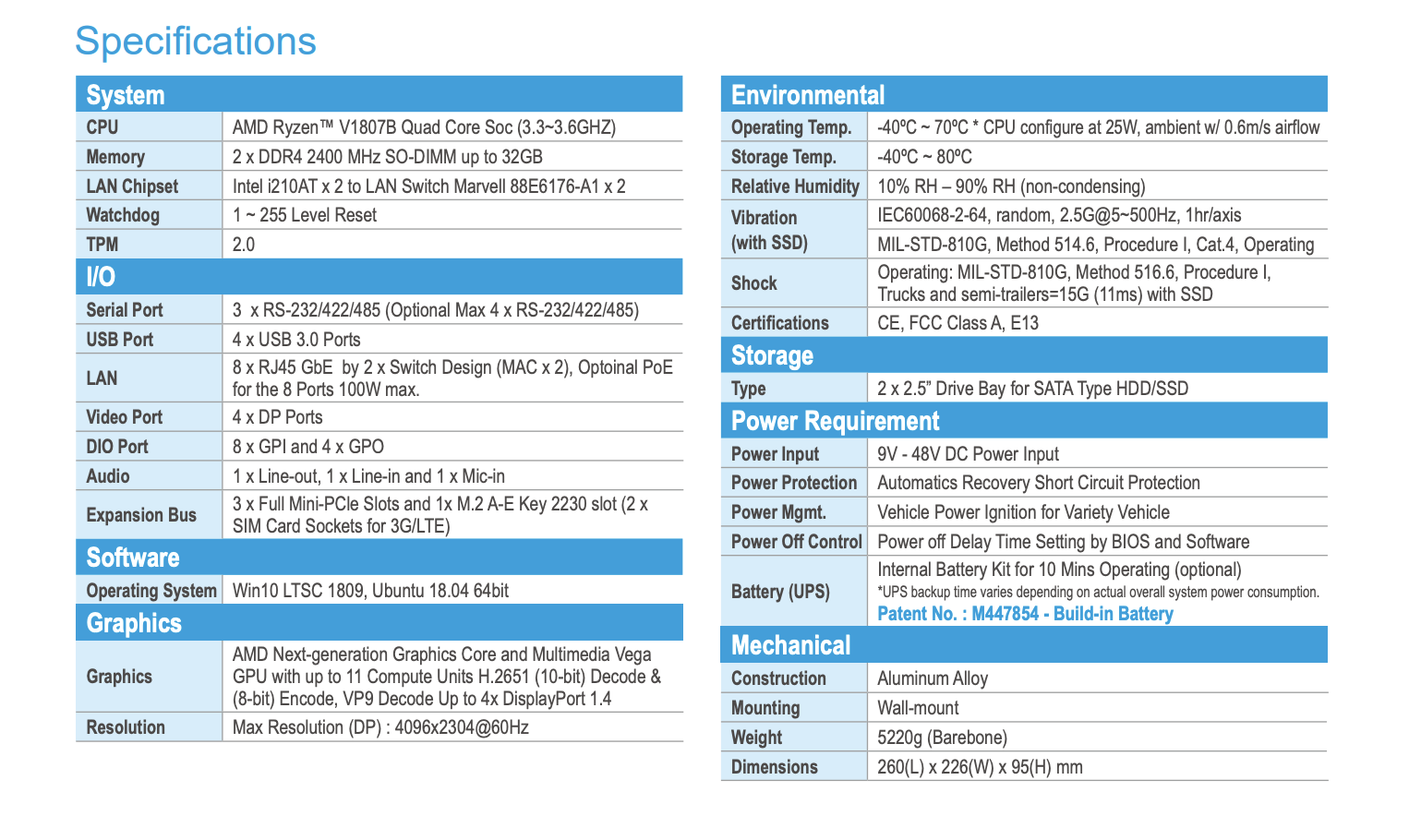

Ürün Özellikleri

Benzer Ürünlerimiz

ABOX-5200(P)

ABOX-5200(P)

Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz) Intel® Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz) Intel® Gen8 Core i3-8100T (6M Cache 3.1GHz) Intel® Gen8 Celeron G4900T (2M Cache 2.9GHz)

The ABOX-5200 is powered by Intel® Coffee Lake 8th Gen Core i7/i5/i3 CPU with 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer.

ABOX-5100(P)

ABOX-5100(P)

AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHZ)

The ABOX-5100(P) is powered by AMD Ryzen Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer.
ABOX-5211(P)

ABOX-5211(P)

10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) 10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) 10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) 10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

The ABOX-5211(P) Series is powered by the 10th Gen Intel® Core™ i9-10900TE processor and boasts 8 x DI, 4 x DO, and 4 x RS-232/422/485 support.
ABOX-5210(P)(G)

ABOX-5210(P)(G)

Intel Gen10 Xeon W-1290TE (20M Cache 1.8GHz up to 4.6GHz)* Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) Intel Gen10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel Gen10 Core G5900TE (4M Cache 3.0GHz)

10th Gen Intel® Xeon®/Core™ i9 10-cores processor and NVIDIA® Quadro® GPU both powers ABOX-5210G Series in AI GPU computing. It can provide high computing performance on graphic processing by harnessing the power of its graphics processing unit (GPU).

ABOX-5220(P)(G)

ABOX-5220(P)(G)

• Intel® Core™ i9 processor 14900T • Intel® Core™ i7 processor 14700T • Intel® Core™ i5 processor 14500T • Intel® Core™ i3 processor 14100T

14th Generation Intel® Core™ Processor with Discrete NVIDIA and Intel GPU Options for Edge AI Solution
GM-1100

GM-1100

BTL-S/14/13/12. Nesil Intel® Core™ Serisi Gömülü GPU Bilgisayar, 1x MXM 3.1 GPU Genişletme Soketini Destekler

Supports 1x MXM 3.1 Type A/B form factor GPU module expansion. 1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector 1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
DV-1100

DV-1100

14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
DX-1200

DX-1200

14/13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB Quad Independent Display (HDMI / DP / DVI-I) 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
DS-1400 , DS-1401 , DS-1402

DS-1400
DS-1401
DS-1402

BTL-S/14/13/12. Nesil Intel Core Serisi İşlemciler, Yüksek Performanslı ve PCIe Genişletilebilir Dayanıklı Gömülü Bilgisayar, 2 adede kadar PCI/PCIe Genişletme Kartını Destekler

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB 2x GbE LAN and optional 2x 10GbE LAN 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD Up to 2x PCI/PCIe expansion slots
