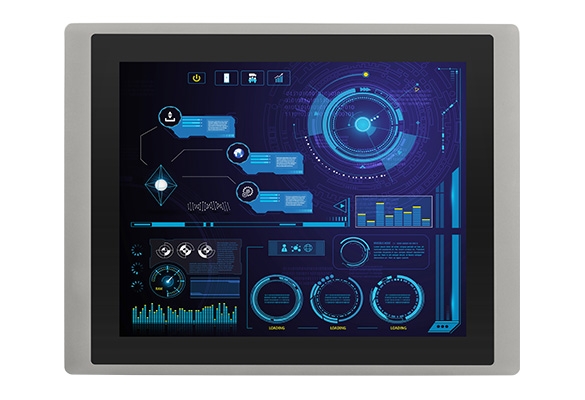

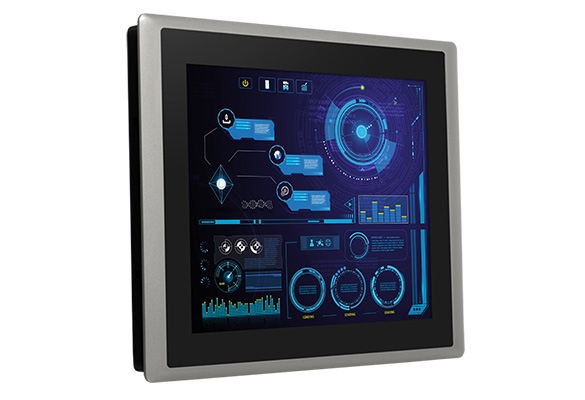

CV-115 / P2202 Series

Ürünlere Dön

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

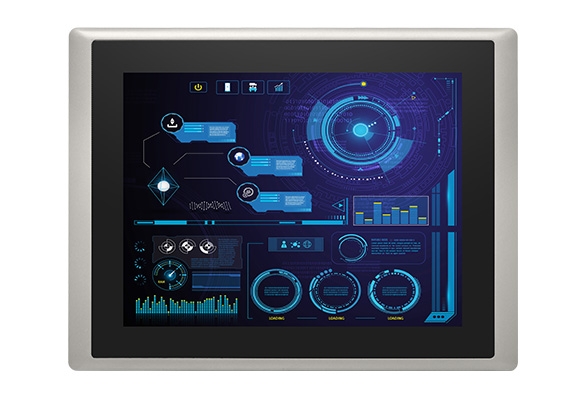

Yüksek Performanslı Panel PC

Intel® Core™ i5 - Intel® Core™ i3

15″ TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
Onboard Intel® Alder Lake-P U-Series Core™ Processor
2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
Quad Independent Display (CDS / HDMI / DP / VGA)
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Designed with Aluminum Die-cast Front Bezel
Front Panel IP65 Compliant

Destekleyen İşlemciler

Teklif Al

PDF

Yüksek Performanslı Panel PC

CV-115 / P2202 Series

The CV-100/P2202 series is a high-performance modular industrial panel PC with an Intel® Core™ U-series (Alder Lake-P) processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (1 GbE LAN, USB 3.2 Gen 2×1, COM, and DIO), has Mini PCIe, M.2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements. The rugged CV-100/P2202 series can meet the diverse applications of equipment machine HMI and production process visualization.

Teklif Al

PDF

Available Models

Model No.	Product Description
CV-115R-R10/P2202-i5-R10	15″ TFT XGA 4:3 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch
CV-115R-R10/P2202E-i5-R10	15″ TFT XGA 4:3 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch
CV-115C-R11/P2202-i5-R10	15″ TFT XGA 4:3 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CV-115C-R11/P2202E-i5-R10	15″ TFT XGA 4:3 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CV-115R-R10/P2202-i3-R10	15″ TFT XGA 4:3 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch
CV-115R-R10/P2202E-i3-R10	15″ TFT XGA 4:3 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch
CV-115C-R11/P2202-i3-R10	15″ TFT XGA 4:3 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch
CV-115C-R11/P2202E-i3-R10	15″ TFT XGA 4:3 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

Package Checklist

• CV-115/P2202 Series Panel PC x1	• Thermal Pad x1
• Power Terminal Block x1	• Screws Pack x5
• Remote Power On/Off Terminal Block Connector x1	• Panel Mounting Kit x1
• DIO Terminal Block Connector x2	• DIN Rail Mounting Kit x1
• PCI / PCIe Card Installation Kit x 1 (For P2202E Only)

Model Configuration

	CV-115R	CV-115C	P2202 (i3/i5)	P2202E (i3/i5)
CV-115R/P2202	V	—	V	—
CV-115C/P2202	—	V	V	—
CV-115R/P2202E	V	—	—	V
CV-115C/P2202E	—	V	—	V
