Askeri PC

ABOX-5211(P)

10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) 10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) 10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) 10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

  • 10th Gen Intel® Core™ Processor
  • 8 x DI, 4 x DO and 4 x RS-232/422/485
  • 3 x M.2 2280 Key M Support NVMe SSD Storage
  • 9-60V DC Power Input
  • Operating Temp.: -40°C~70°C
  • 8 x GbE RJ45 (Optional 8 x PoE)
Destekleyen İşlemciler
  • ABOX-5211(P)
  • ABOX-5211(P)
  • ABOX-5211(P)
  • ABOX-5211(P)
ABOX-5211(P)
ABOX-5211(P)
ABOX-5211(P)
ABOX-5211(P)
Teklif Al
PDF
Askeri PC

ABOX-5211(P)

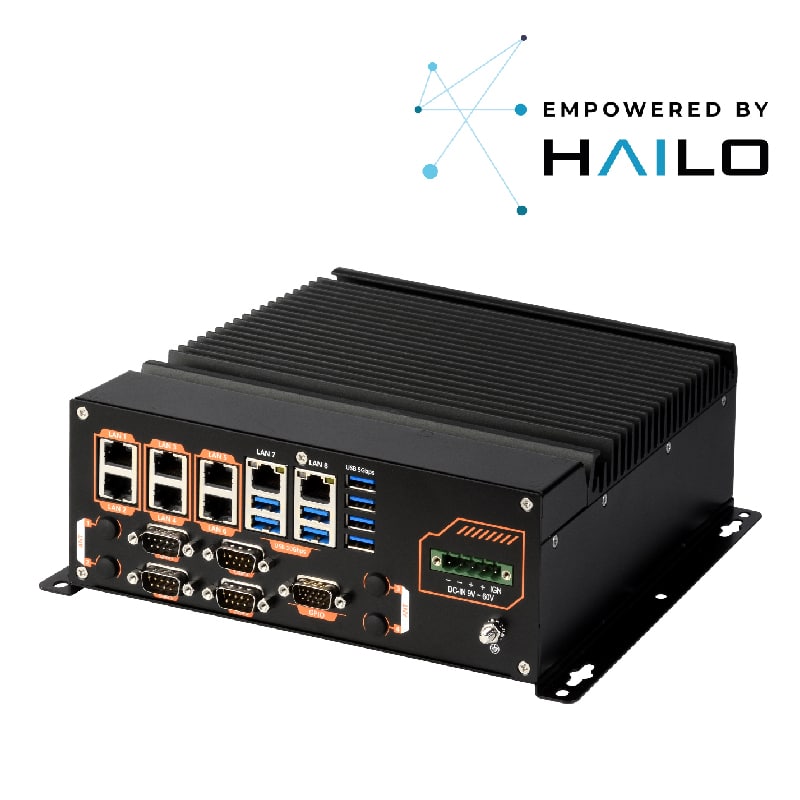

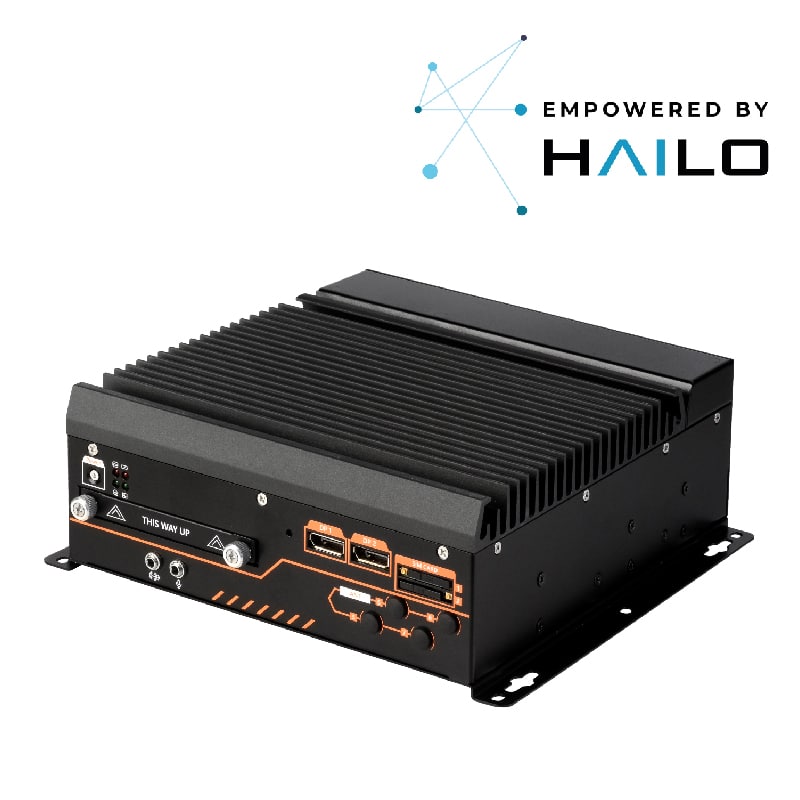

The ABOX-5211(P) Series is powered by the 10th Gen Intel® Core™ i9-10900TE processor and boasts 8 x DI, 4 x DO, and 4 x RS-232/422/485 support. It is perfect for Industrial loT deployments, with high-performance computing and real-time capabilities certified by Intel® ESDQ (Edge Software Device Qualification) for Autonomous Mobile Robots (AMR). The Intel® UHD Graphics 630 Graphics and single-side I/O panel design, along with 9~60VDC power input, make it ideal for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AloT/Industry 4.0 applications. Moreover, it is suitable for industrial automation, digital signage, outdoor video surveillance, and AGV/AMR. In addition, ABOX-5211(P) Series accelerates AI inferencing for Edge Computing applications by equipping up to two Hailo-8™ AI Accelerators, and a single Hailo-8™ AI Accelerator offers 26 TOPS inference performance.

ABOX-5211(P)
ABOX-5211(P)
ABOX-5211(P)
ABOX-5211(P)
Teklif Al
PDF
Sipariş Bilgileri

ABOX-5211(P)

Askeri PC

ABOX-5211(P)

Daha Fazla

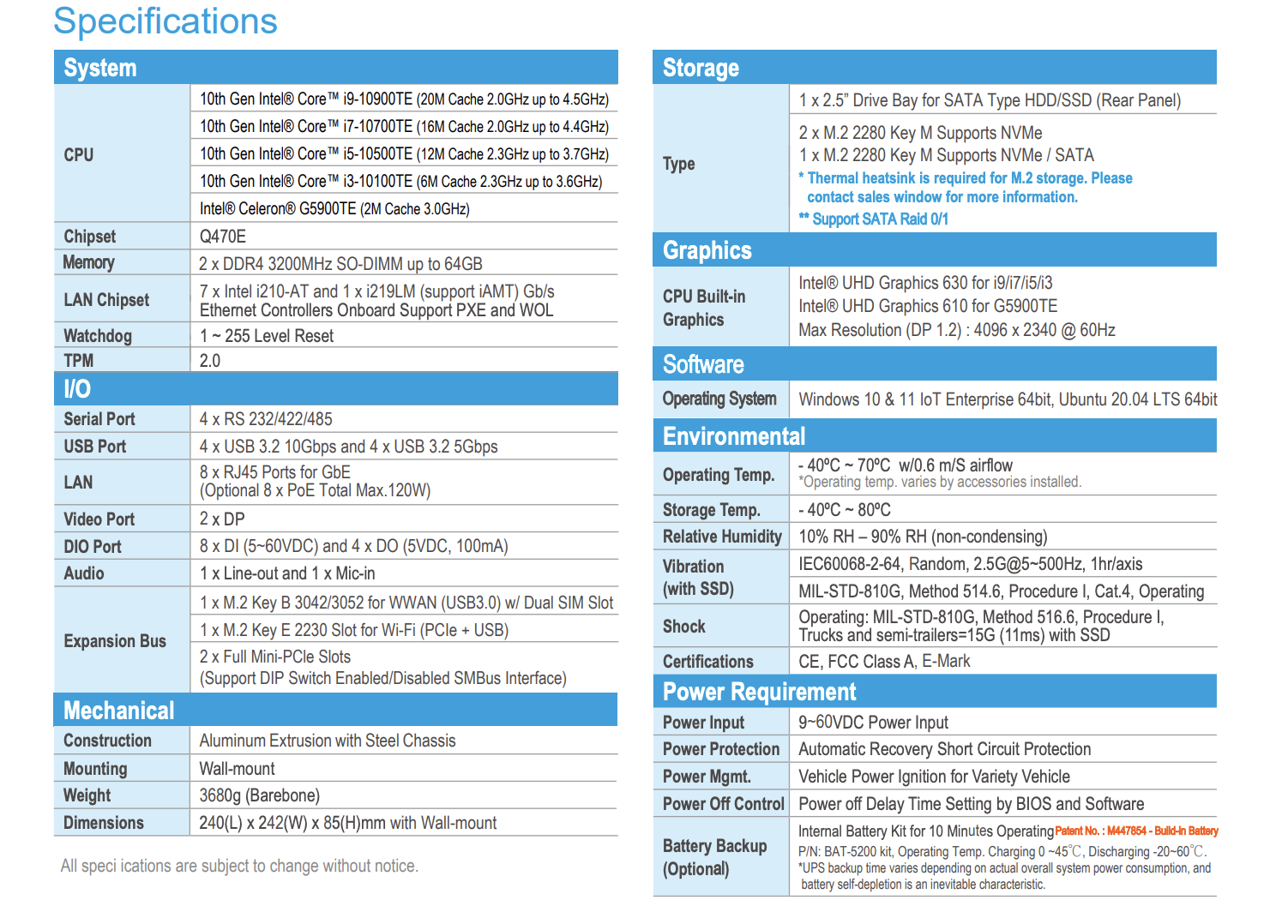

Ürün Özellikleri

Benzer Ürünlerimiz

ABOX-5200(P)

ABOX-5200(P)

Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz) Intel® Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz) Intel® Gen8 Core i3-8100T (6M Cache 3.1GHz) Intel® Gen8 Celeron G4900T (2M Cache 2.9GHz)

The ABOX-5200 is powered by Intel® Coffee Lake 8th Gen Core i7/i5/i3 CPU with 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer.

ABOX-5100(P)

ABOX-5100(P)

AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHZ)

The ABOX-5100(P) is powered by AMD Ryzen Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer.
ABOX-5211(P)

ABOX-5211(P)

10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) 10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) 10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) 10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

The ABOX-5211(P) Series is powered by the 10th Gen Intel® Core™ i9-10900TE processor and boasts 8 x DI, 4 x DO, and 4 x RS-232/422/485 support.
ABOX-5210(P)(G)

ABOX-5210(P)(G)

Intel Gen10 Xeon W-1290TE (20M Cache 1.8GHz up to 4.6GHz)* Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) Intel Gen10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel Gen10 Core G5900TE (4M Cache 3.0GHz)

10th Gen Intel® Xeon®/Core™ i9 10-cores processor and NVIDIA® Quadro® GPU both powers ABOX-5210G Series in AI GPU computing. It can provide high computing performance on graphic processing by harnessing the power of its graphics processing unit (GPU).

ABOX-5220(P)(G)

ABOX-5220(P)(G)

• Intel® Core™ i9 processor 14900T • Intel® Core™ i7 processor 14700T • Intel® Core™ i5 processor 14500T • Intel® Core™ i3 processor 14100T

14th Generation Intel® Core™ Processor with Discrete NVIDIA and Intel GPU Options for Edge AI Solution
GM-1100

GM-1100

BTL-S/14/13/12. Nesil Intel® Core™ Serisi Gömülü GPU Bilgisayar, 1x MXM 3.1 GPU Genişletme Soketini Destekler

Supports 1x MXM 3.1 Type A/B form factor GPU module expansion. 1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector 1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
DV-1100

DV-1100

14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
DX-1200

DX-1200

14/13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB Quad Independent Display (HDMI / DP / DVI-I) 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
DS-1400 , DS-1401 , DS-1402

DS-1400
DS-1401
DS-1402

BTL-S/14/13/12. Nesil Intel Core Serisi İşlemciler, Yüksek Performanslı ve PCIe Genişletilebilir Dayanıklı Gömülü Bilgisayar, 2 adede kadar PCI/PCIe Genişletme Kartını Destekler

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB 2x GbE LAN and optional 2x 10GbE LAN 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD Up to 2x PCI/PCIe expansion slots
