ABOX-5221

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

Intel® Core™ (14. nesil) i9-14900T 24C/32T işlemci / Intel® Core™ (14. nesil) i7-14700T 20C/28T işlemci / Intel® Core™ (14. nesil) i5-14500T 14C/20T işlemci

• Intel® Core™ İşlemci (14. Nesil)

• Ölçeklenebilir Yapay Zeka Hızlandırma Çözümü için NVIDIA RTX™ Embedded ve Intel® Arc™ GPU Seçenekleri

• Yüksek Bant Genişliği Yukarı Bağlantı ve Toplu Aşağı Bağlantı için 2 x Marvell 10GbE

• PoE+ Seçeneğiyle 4 x 2,5 GbE, Kenar Cihazlarına Basitleştirilmiş Bağlantı Sağlar

• Kolay Bakım için Önden Çıkarılabilir RTC Pil Tasarımı

Destekleyen İşlemciler

Teklif Al

PDF

Gömülü GPU / AI / Görüntü İşleme PC

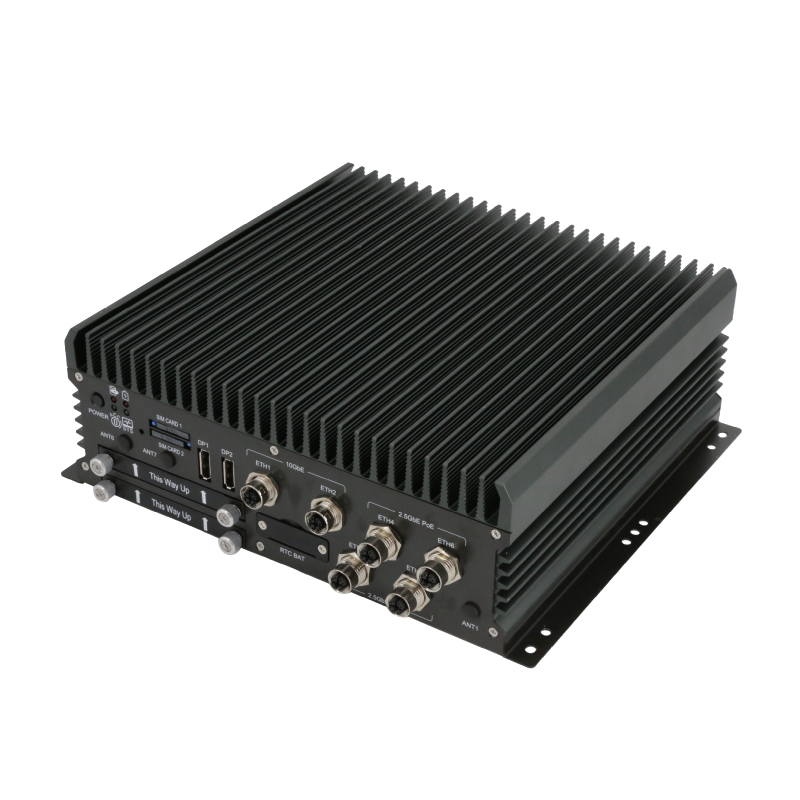

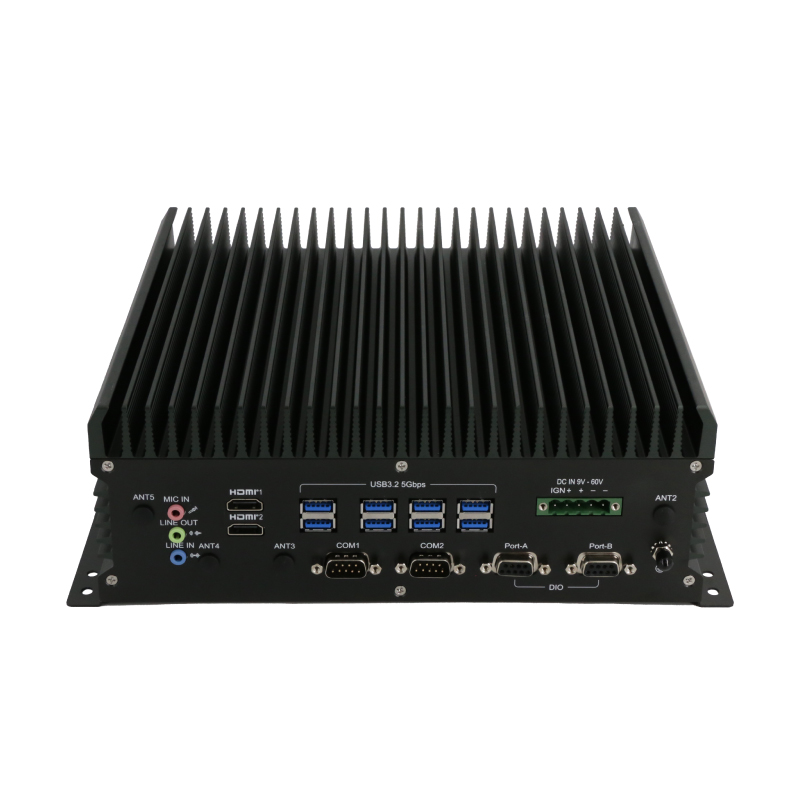

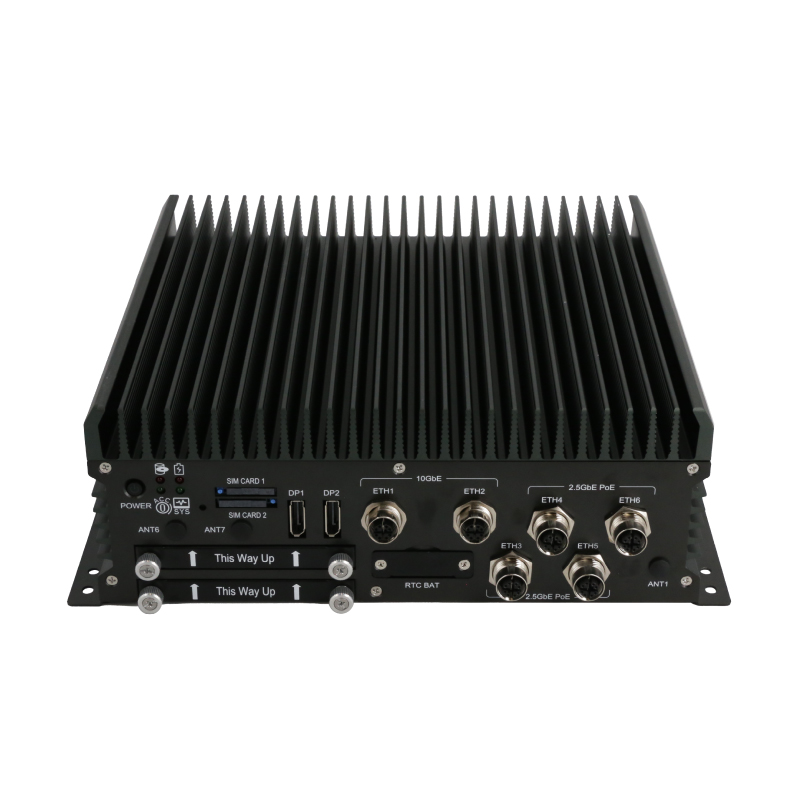

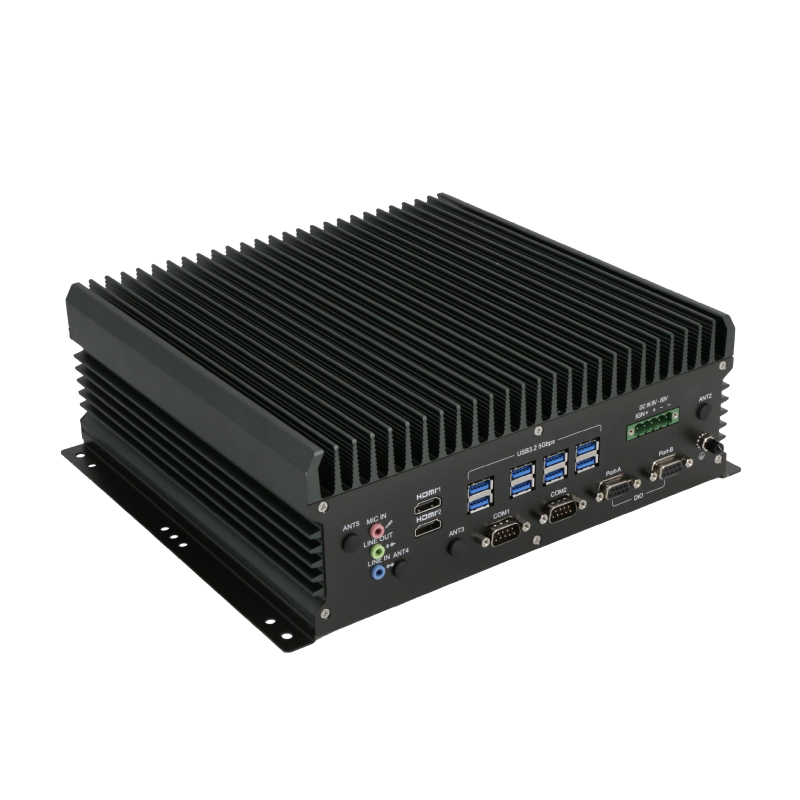

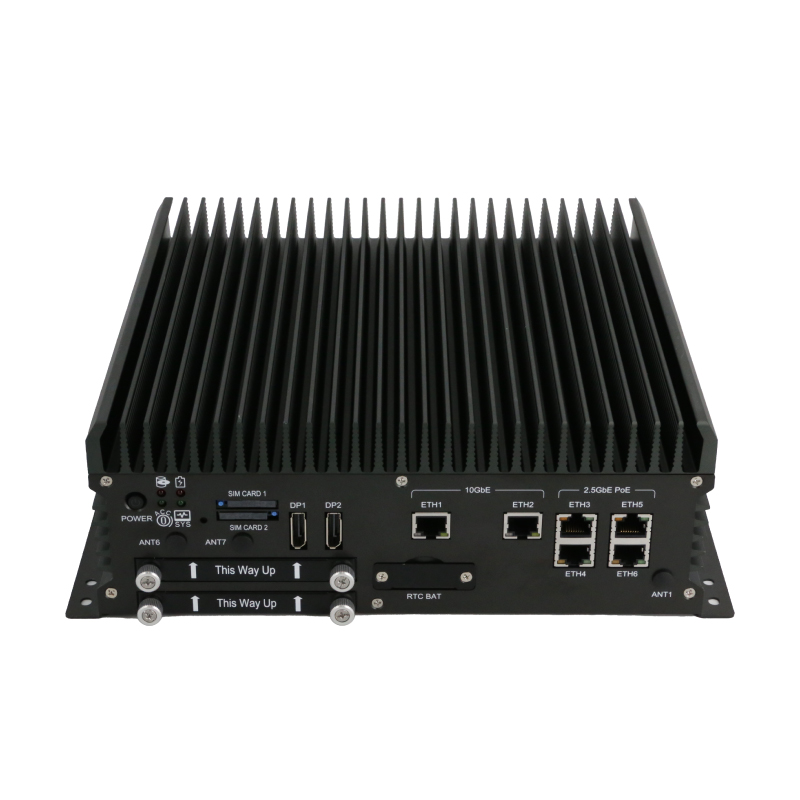

ABOX-5221

• Ayrık GPU olmadan
– HDMI 2.0b’de belirtildiği gibi maksimum 3840 x 2160 @ 60Hz çözünürlük desteğine sahip 2 x HDMI®

• Ayrık GPU ile
– Ek 2 x DP 1.4 (maksimum çözünürlük: 7680 x 4320 @ 60Hz)

• İşlemciye entegre GPU – Intel® UHD Graphics 770
• İsteğe bağlı ayrı GPU:
NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada
Intel® Arc™ A370E

Teklif Al

PDF

Sipariş Bilgileri

ABOX-5221(P)(G)(-M12X)-zz (P= w/ PoE, G=w/ Discrete GPU, M12X=w/ M12 X code connectors, zz=i7=i7-14700T, zz=i5=i5-14500T, zz=i3=i3-14100T

Gömülü GPU / AI / Görüntü İşleme PC

ABOX-5221

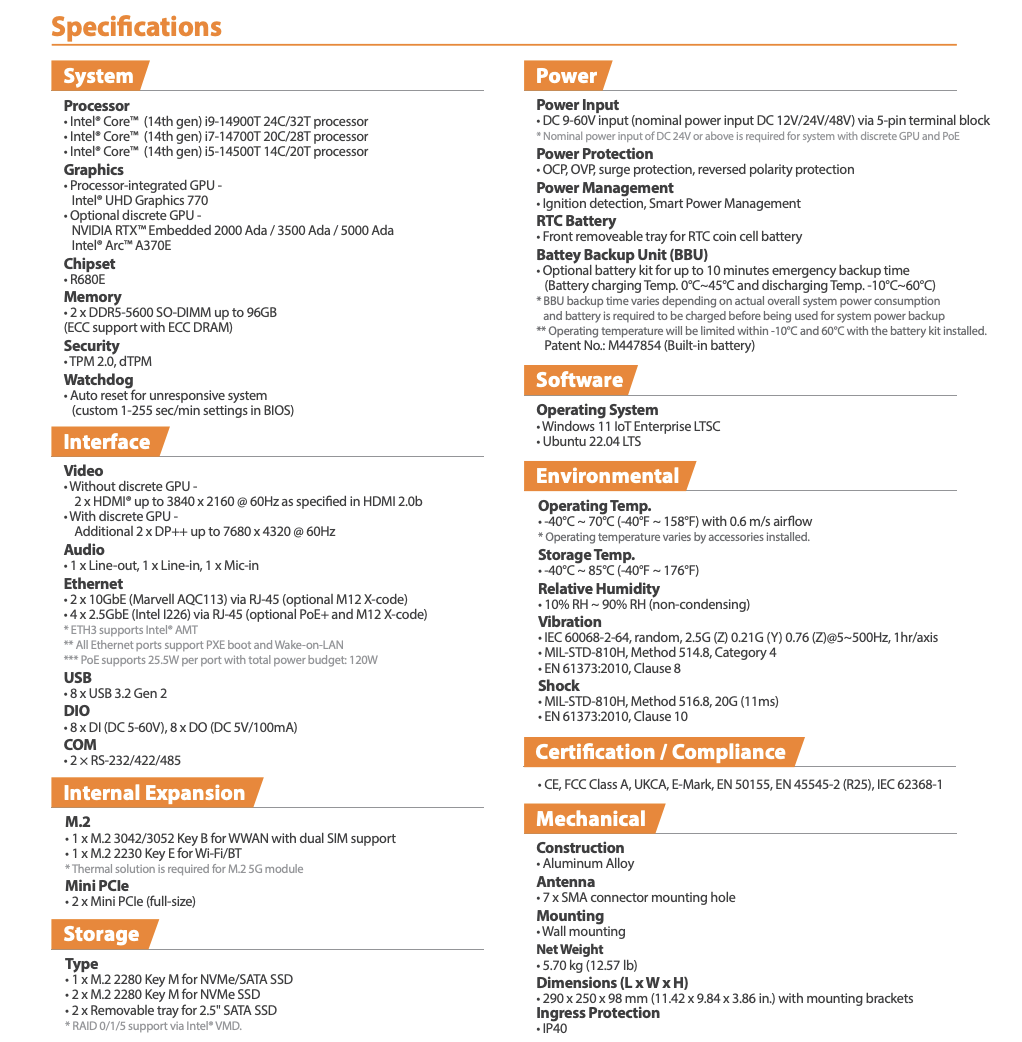

ABOX-5221 Datasheet

Daha Fazla

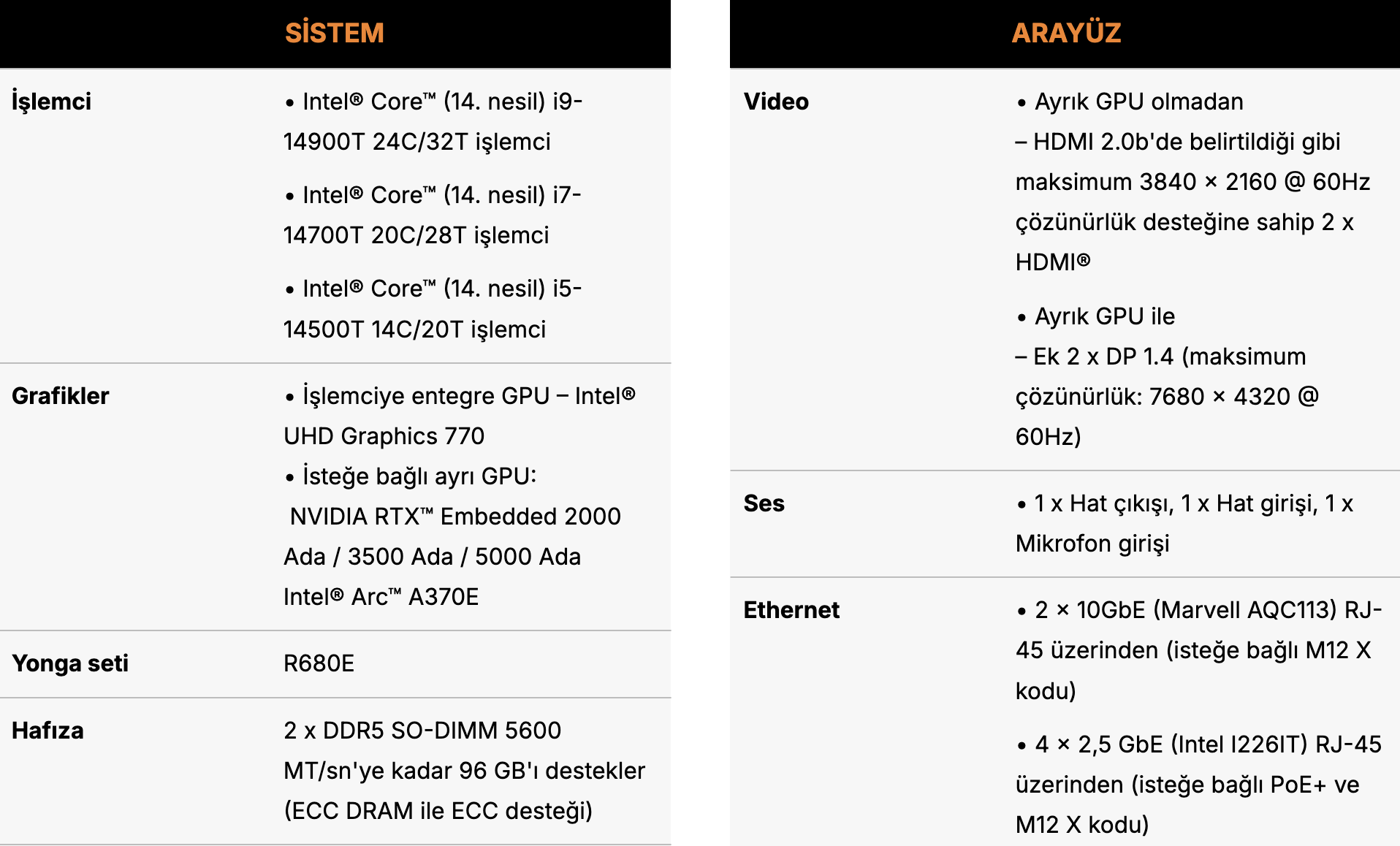

Ürün Özellikleri
