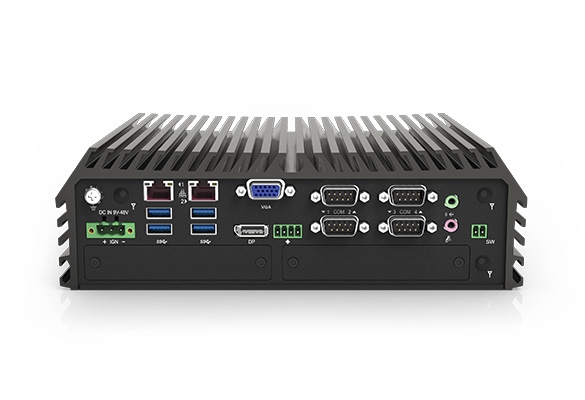

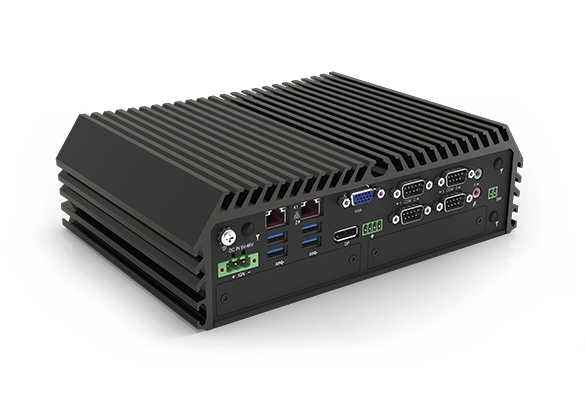

Fansız Endüstriyel PC

DX-1300

Intel® Arrow Lake-S Core™ Ultra 200S Serisi (Maksimum 65 W TDP)

• Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)

• 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB

• Wide Operating Temperature -40°C to 60°C

• Optional CMI Modules for I/O Expansion

• Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE

Destekleyen İşlemciler
  • DX-1300
  • DX-1300
  • DX-1300
DX-1300
DX-1300
DX-1300
DX-1300
Teklif Al
PDF
Fansız Endüstriyel PC

DX-1300

• Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)

• 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB

• Wide Operating Temperature -40°C to 60°C

• Optional CMI Modules for I/O Expansion

• Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE

DX-1300
DX-1300
DX-1300
DX-1300
Teklif Al
PDF
Available Models

DX-1300-R10 : Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and Compact Rugged Embedded Computer

Package Checklist

• DX-1300 Series Embedded System x1

• CPU Heatsink Pack x1

• Screw Pack x 1

• Wall Mounting Kit x1

• Power Terminal Block Connector x1

• Remote Power On/O Terminal Block Connector x 1

• Fan Terminal Block Connector x 1

• M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Fansız Endüstriyel PC

DX-1300

Daha Fazla

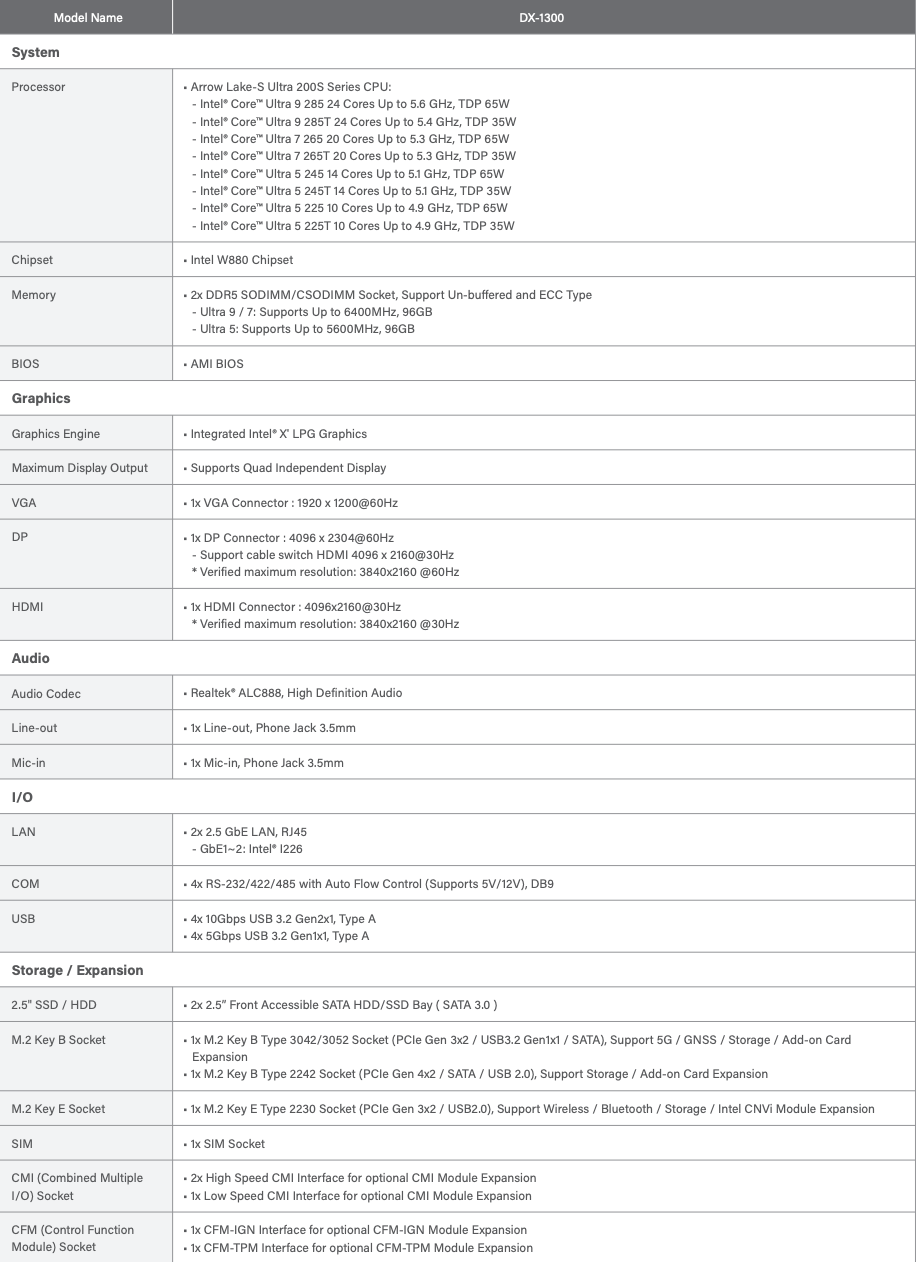

Ürün Özellikleri
