Gömülü GPU / AI / Görüntü İşleme PC

AMD EPYC™ Embedded 8004 Siena series (SP6 socket), Up to 64C/128T, single processor, TDP max 225W

• Processor: Single AMD EPYC™ Embedded 8004 Series Processor, up to 64C/128T

• Memory: 6 channel DDR5 4800 MHz with ECC, up to 576GB (96GB per DIMM)

• High-Density Expansion: Up to 4 x Dual-slot GPUs (PCIe x16) or 8 x Single-slot cards (PCIe x8)

• Front-Accessible Storage: 4 x E1.S EDSFF SSDs (9.5mm)

• Front I/O: 2 x USB USB 3.2 Gen1, Status LEDs

• Rear I/O: 2 x DP, 3 x COM, 4 x USB 3.2 Gen2, 2 x 2.5GbE, 2 x 10GbE

• Supports AMD ROCm™ software stack for AI and HPC workloads

• MicroBMC management for remote control

Teklif Al

PDF

Gömülü GPU / AI / Görüntü İşleme PC

EdgeX-6000

• Processor: Single AMD EPYC™ Embedded 8004 Series Processor, up to 64C/128T

• Memory: 6 channel DDR5 4800 MHz with ECC, up to 576GB (96GB per DIMM)

• High-Density Expansion: Up to 4 x Dual-slot GPUs (PCIe x16) or 8 x Single-slot cards (PCIe x8)

• Front-Accessible Storage: 4 x E1.S EDSFF SSDs (9.5mm)

• Front I/O: 2 x USB USB 3.2 Gen1, Status LEDs

• Rear I/O: 2 x DP, 3 x COM, 4 x USB 3.2 Gen2, 2 x 2.5GbE, 2 x 10GbE

• Supports AMD ROCm™ software stack for AI and HPC workloads

• MicroBMC management for remote control

Teklif Al

PDF

Sipariş Bilgileri

EdgeX-6000-E858000 AMD EPYC™ Embedded 8534P, 3200W PSU with NVIDIA® Quadro® A1000 MXM

EdgeX-6000-E838001 AMD EPYC™ Embedded 8324P, 2400W PSU with NVIDIA® Quadro® A1000 MXM

EdgeX-6000-E808002 AMD EPYC™ Embedded 8024P, 800W PSU

Gömülü GPU / AI / Görüntü İşleme PC

EdgeX-6000

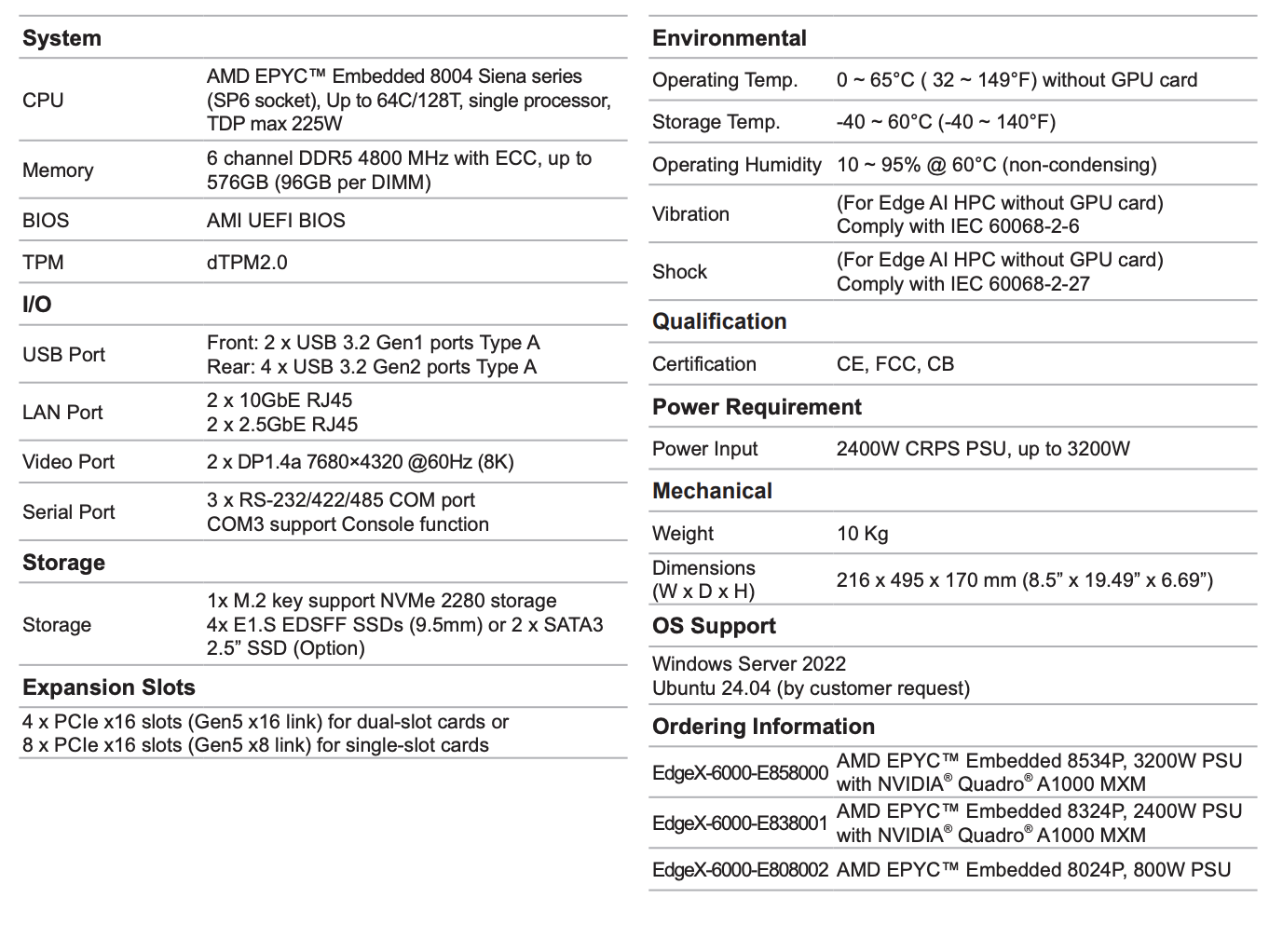

EdgeX-6000 Datasheet
