OVİS Anakart

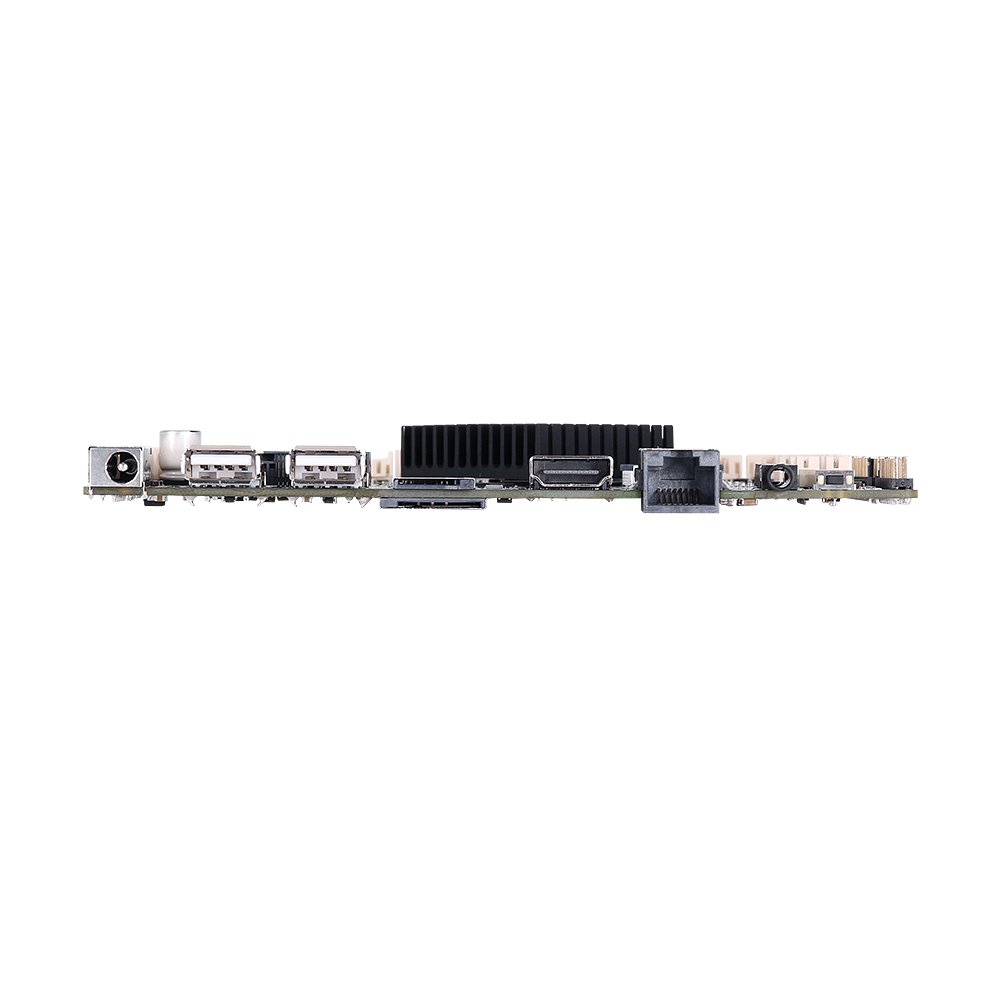

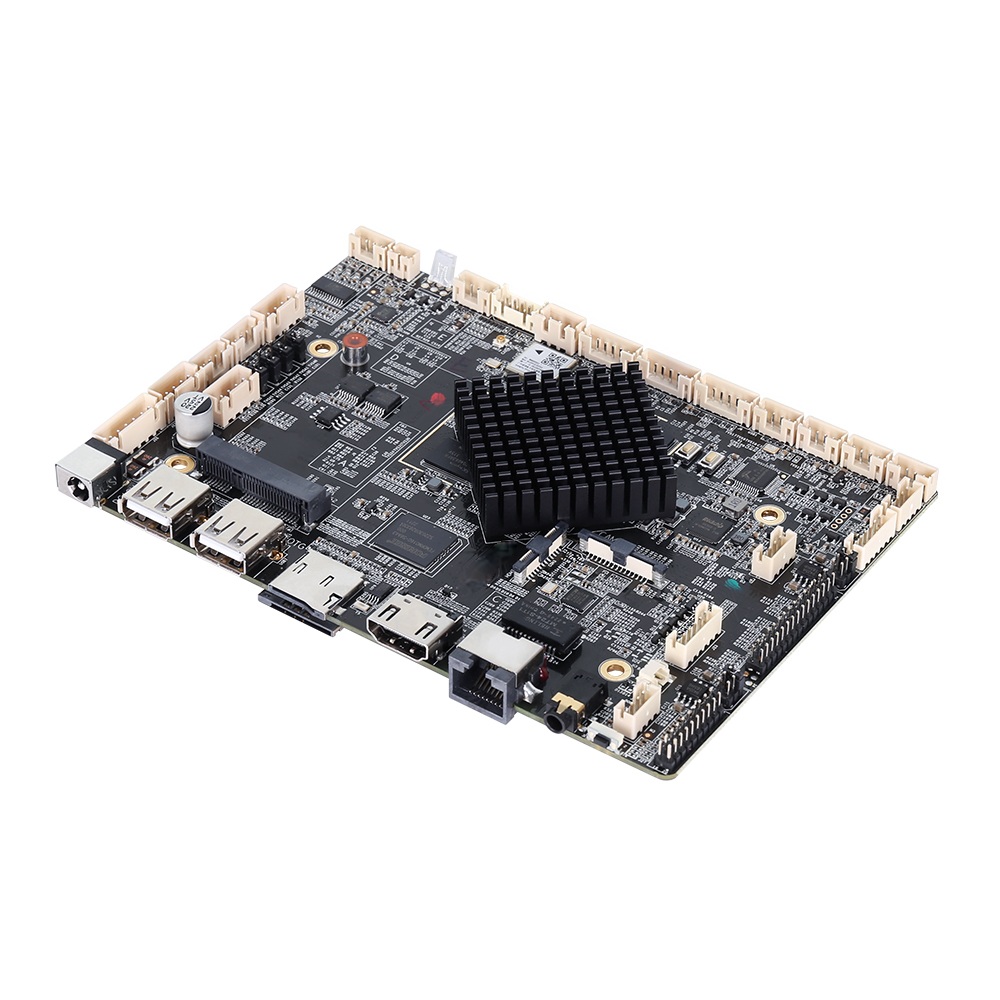

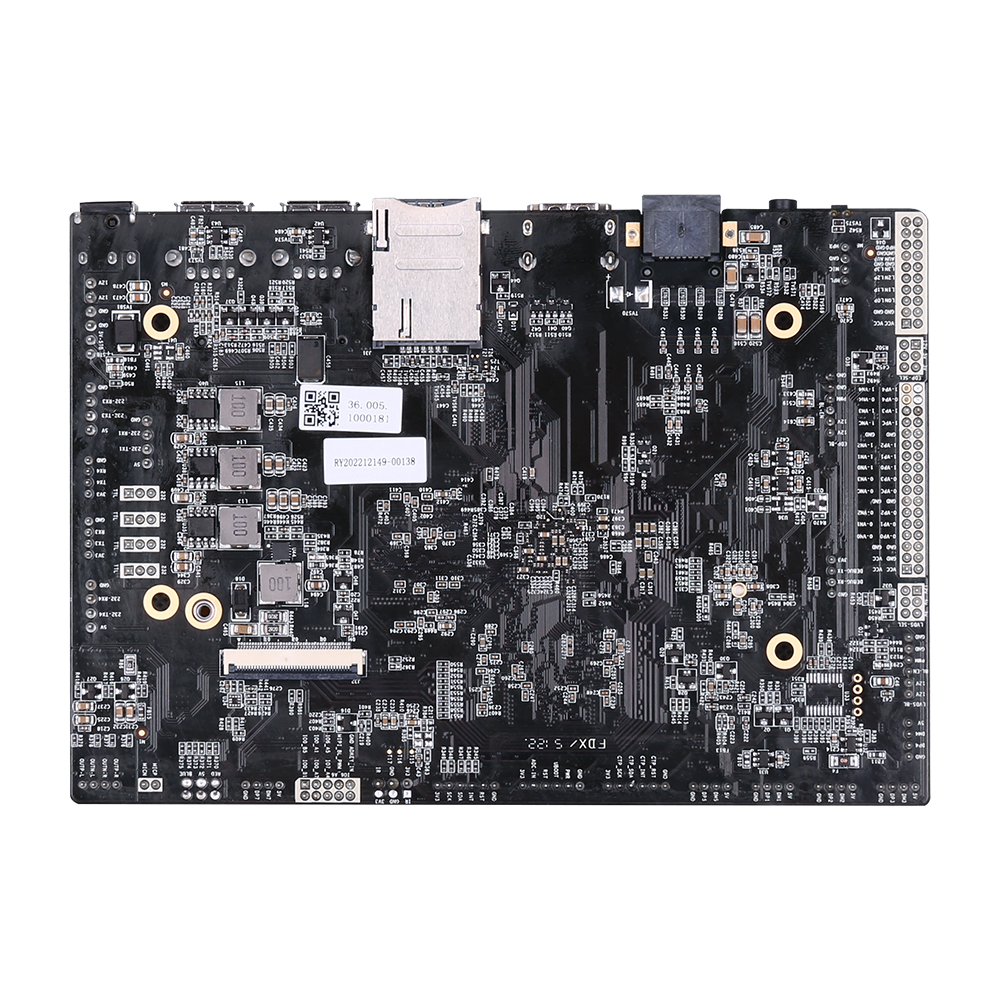

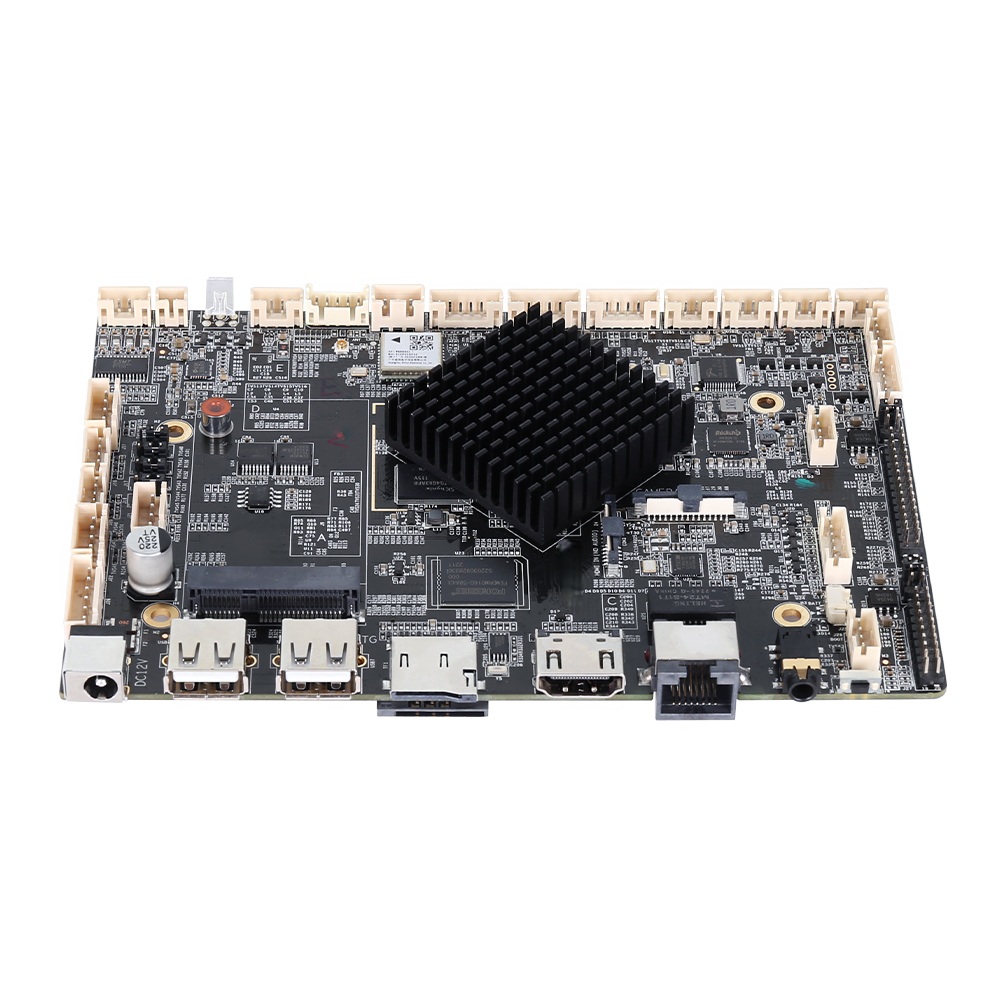

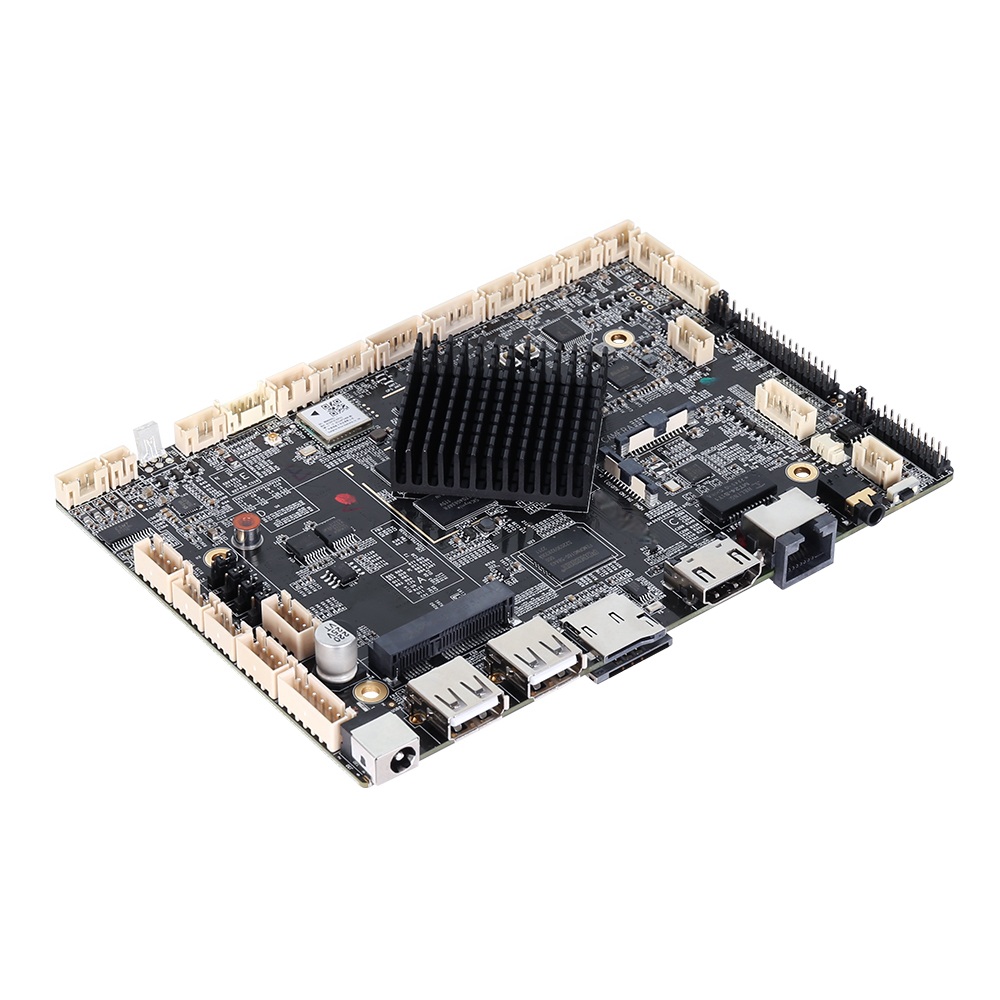

OVMB-ARM-A32I

RK3288, Quad-core, 1.6GHz

High integration, OVMB-ARM-A32I integrated LVDS/EDP/Ethernet/HDMI/WIFI/Blue tooth functions to
itself.

Built-in PCI-E 4G module. OVMB-ARM-A32I Supports PCIE 3G/4G module from HUAWEI,ZTE or other
brand, it also supports VoLTE.

Various expansion interfaces. OVMB-ARM-A32I has eight USB ports(six internal expansion ports and two
USB standard ports.), a 232 port, two switchable TTL/232 ports, it can suit your customization
requirement.

High def inition.OVMB-ARM-A32I supports 4K 3840×2160 decoding and LCD display with various
LVDS/EDP ports, it also supports Special-shaped screens of various sizes and resolutions.

Android system customization. OVMB-ARM-A32I provides system calling interface and API reference
code, it supports upper-layer application ’s development perfectly.

OVMB-ARM-A32I supports infrared, optical, capacitance, resistance and other mainstream touch screen,
it also supports drive-free HID configuration which no need to debug before using.

WIFI module supports 2.4G/5G frequency and 5.0 blue-tooth

OVİS Anakart

OVMB-ARM-A32I

OVMB-ARM-A32I uses RK3288 Cortex-A17 quad-core processor, its basic frequency is 1.6GHz,it
supports Android7.1/10.0 OS. OVMB-ARM-A32I Uses Mali-T764 GPU, it has H.265 hardware decoder to
supports 4K display. Whether it is game, test performance score or decoding, OVMB-ARM-A32I is your best
choice for human-computer interaction and industrial control projects.

Sipariş Bilgileri

OVMB-ARM-A32I

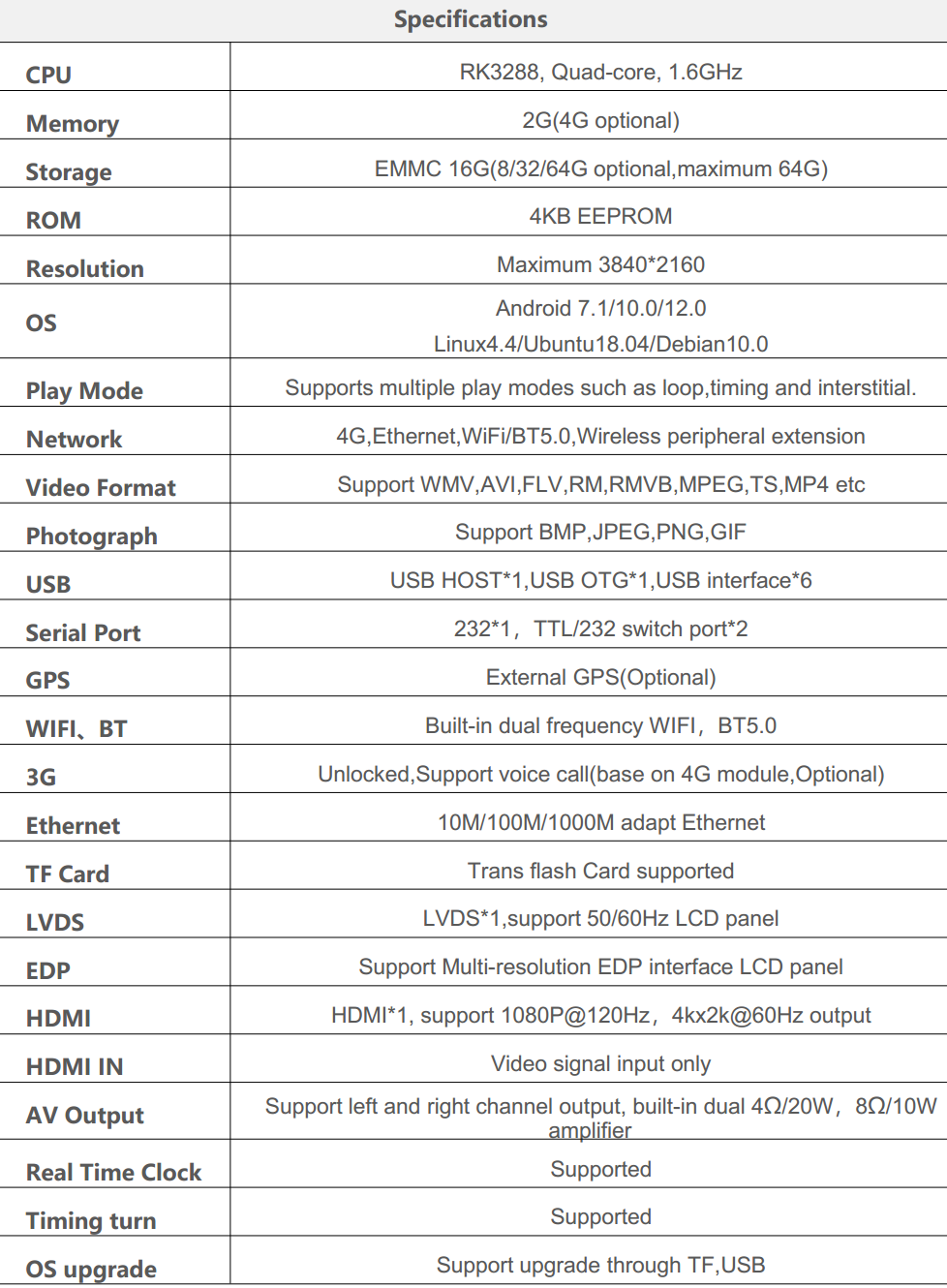

Ürün Özellikleri
