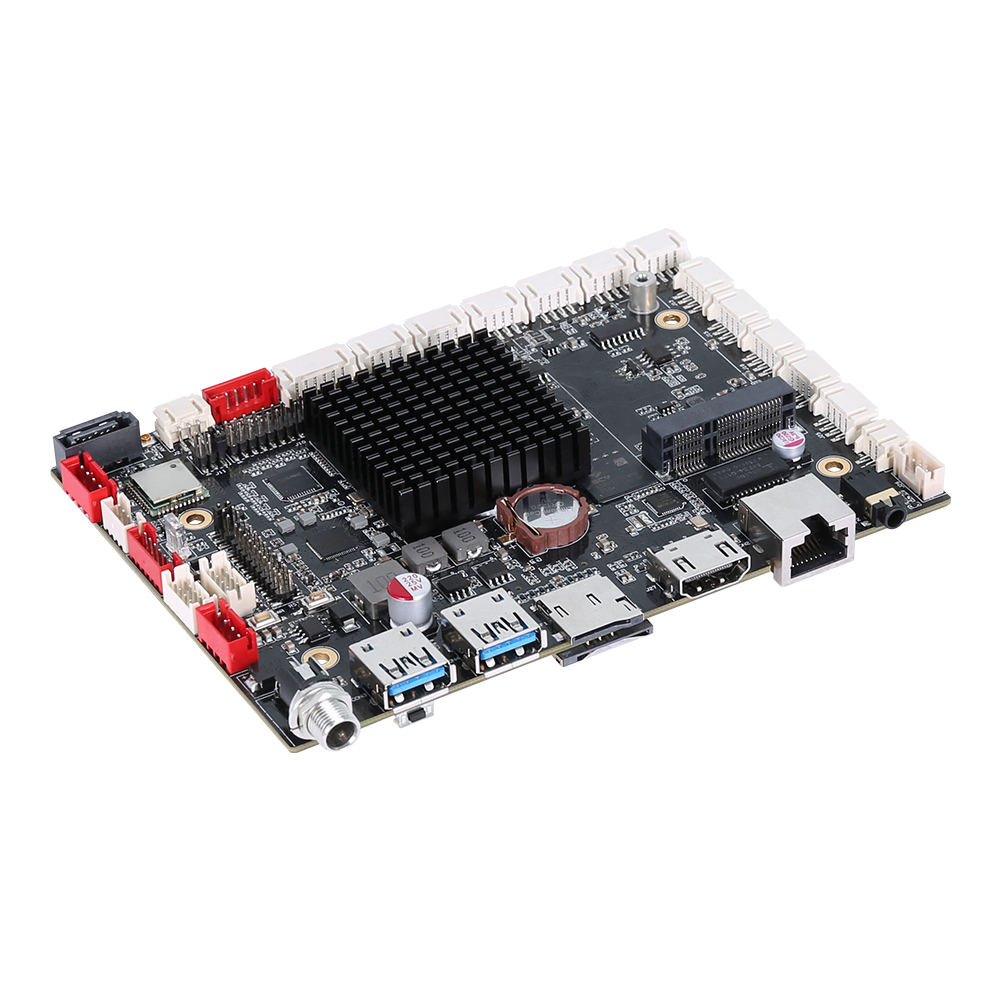

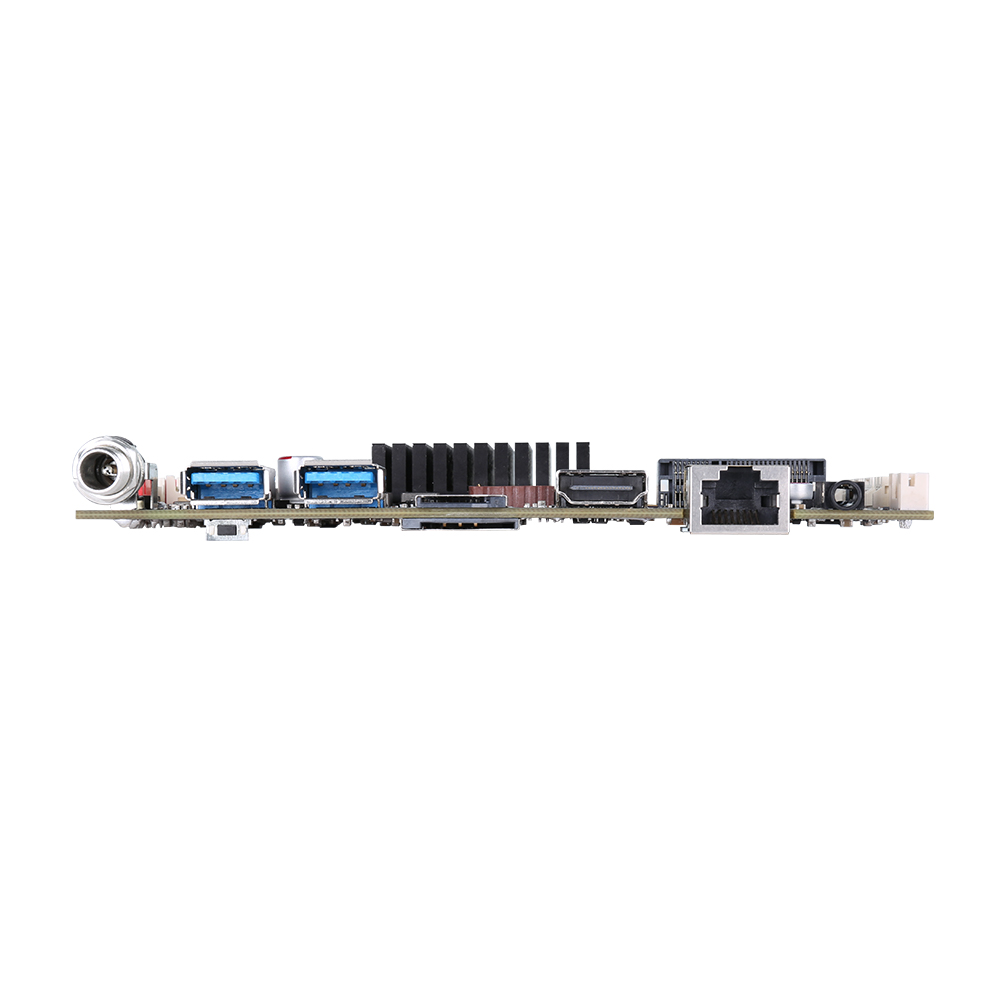

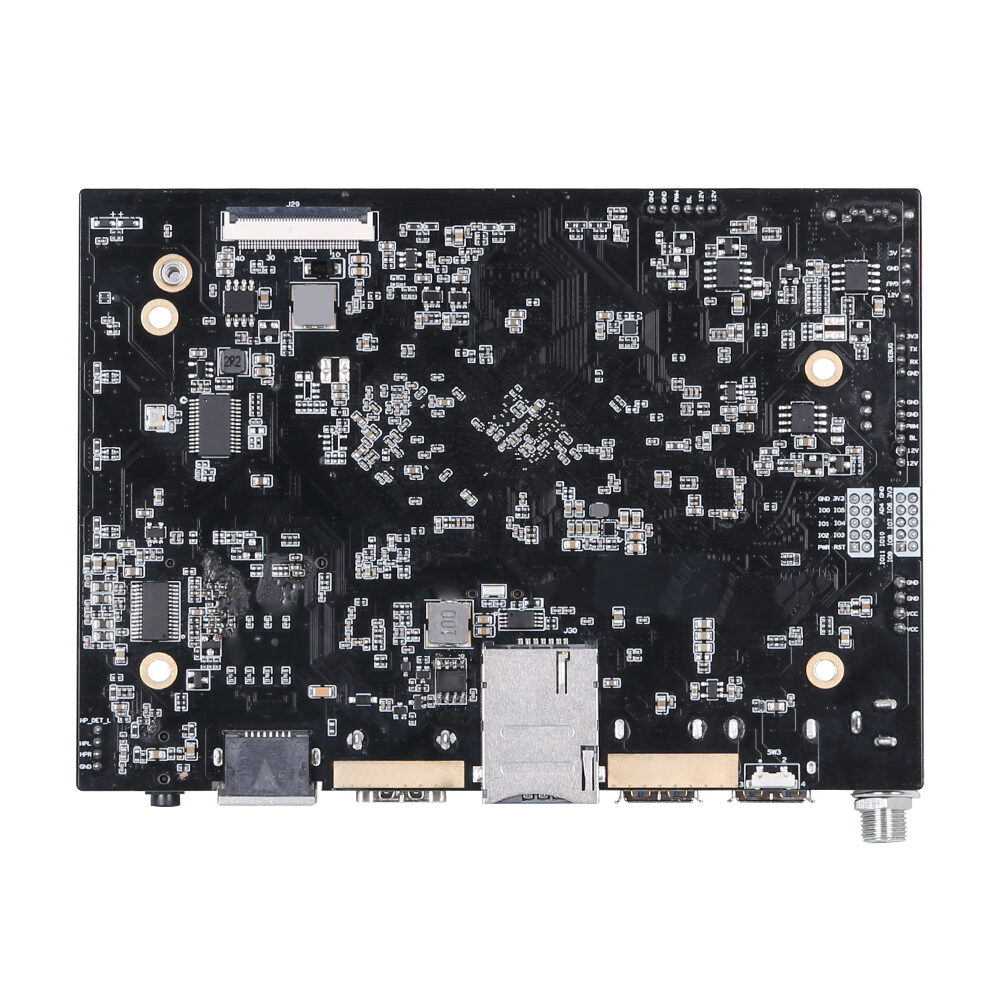

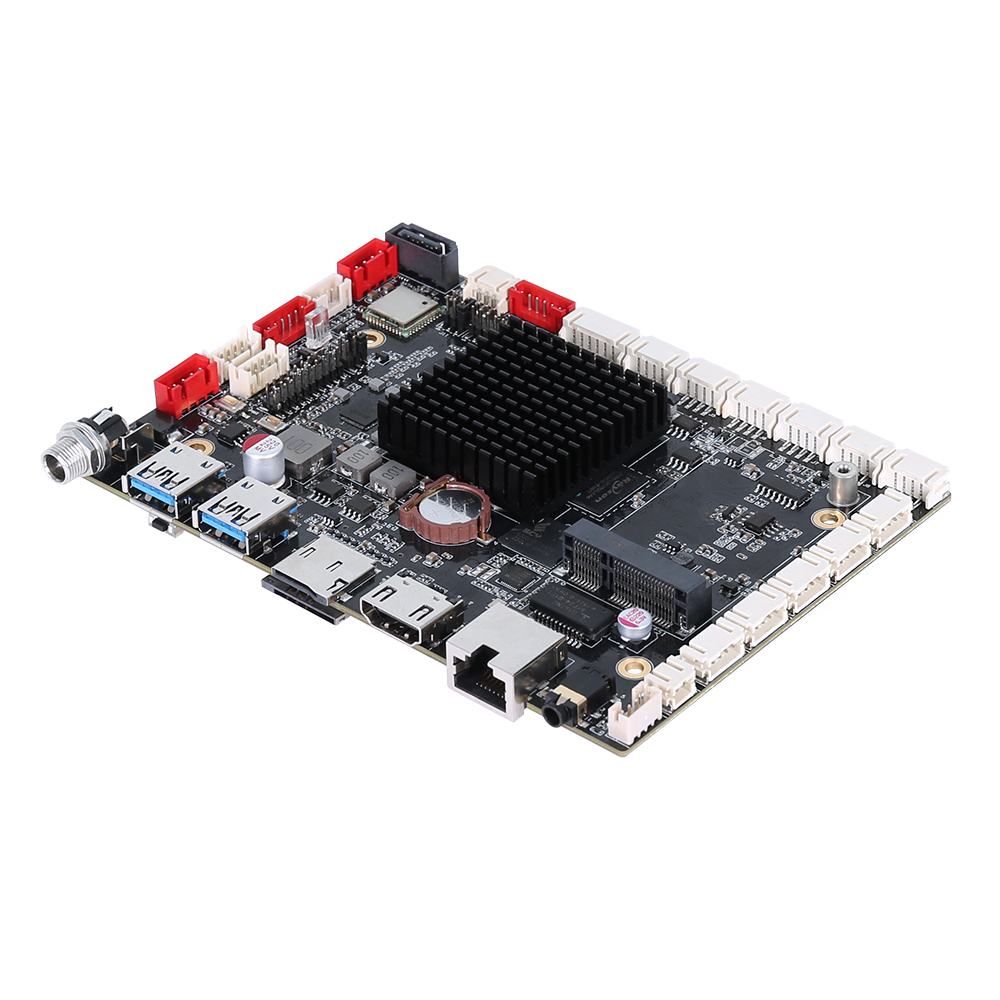

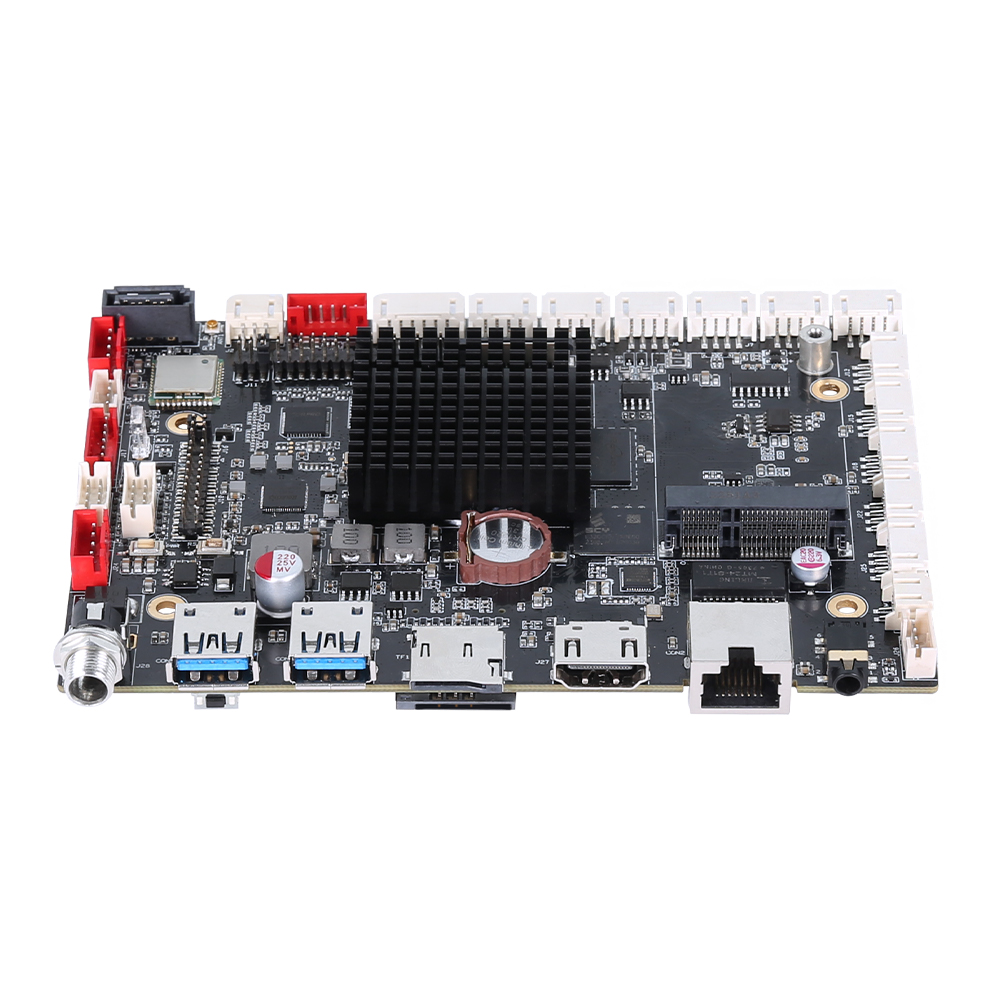

OVİS Anakart

OVMB-ARM-A3568

64Bit processor

Various display interfaces: Dual-LVDS, EDP, HDMI etc.

Various expansion interfaces. OVMB-ARM-A3568 has six USB ports(A USB3.0 HOST standard port,a
USB3.0 OTG standard port, four internal expansion ports, there expansion ports from USB_HUB,
one from CPU),two TTL serial ports, two RS232 serial ports, a 485 port, a 12I/O channel GPIO
port ,it can satisfy your customization request.

Various internet interfaces:a 1000M Ethernet interface, 2.4G WIIF and BT5.2 supported,built-in
PCI-E 4G module interfaces.

High def inition.OVMB-ARM-A3568 supports 4K/60HZ output, it also supports display screen with
LVDS/EDP/MIPI/HDMI interface.

Android system customization. OVMB-ARM-A3568 provides system calling interface and
API reference code, it supports upper-layer applications development perfectly.

OVMB-ARM-A3568 supports infrared, optical, capacitance, resistance and other mainstream touch screen.

OVİS Anakart

OVMB-ARM-A3568

OVMB-ARM-A3568 uses Android12 OS. It integrated double LVDS, eDP, MIPI, HDMI display output interfaces,
MIPI Camera, SATA hard disk, gigabit network etc, and it has built-in universal backlight board port
and screen voltage select jumper, compatible with various kinds of display; Stronger performance,
faster, richer interface, OVMB-ARM-A3568 is your best choice for human-computer interaction,
intelligent terminal, industrial control projects.

Sipariş Bilgileri

OVMB-ARM-A3568

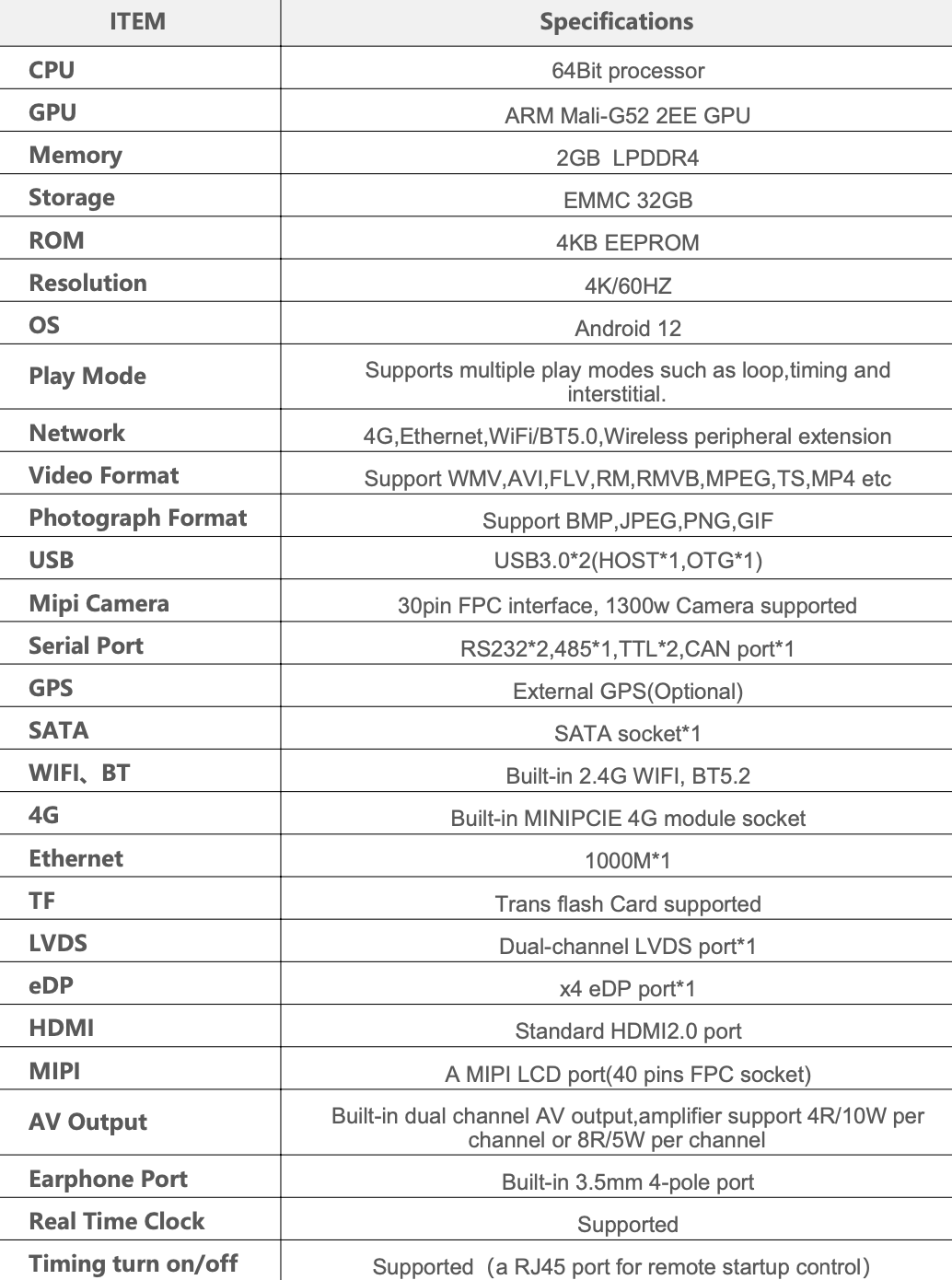

Ürün Özellikleri
