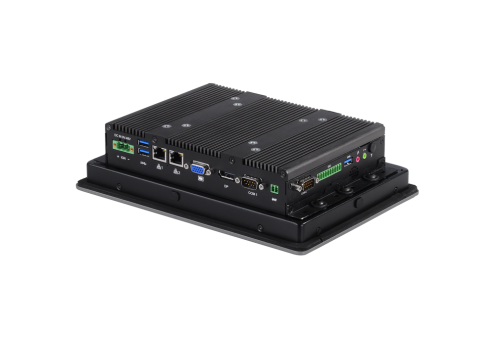

Modüler Panel PC

CV-108 / P1101 Series

• Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz

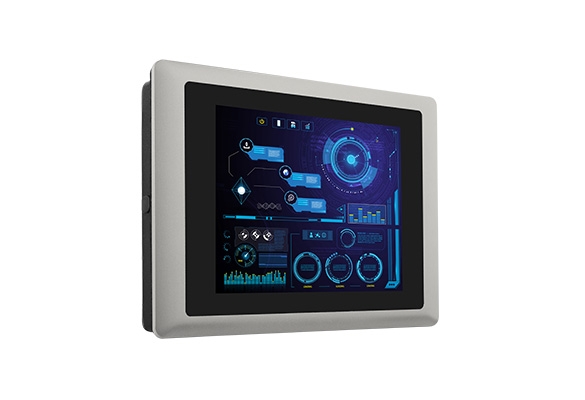

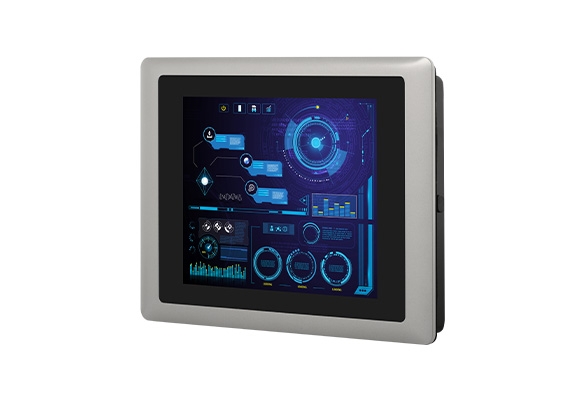

  • 8.4″ TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)

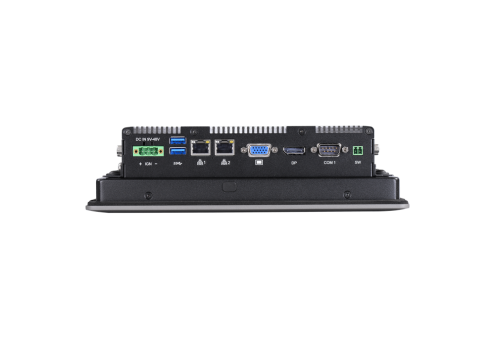

  • 2x LAN, 4x USB, 4x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket

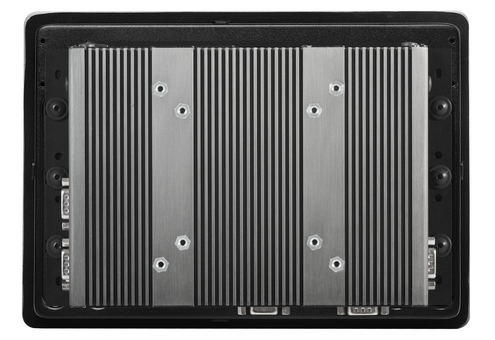

  • Designed with Aluminum Die-Casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
Destekleyen İşlemciler
  • CV-108 / P1101 Series
  • CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
Teklif Al
PDF
Modüler Panel PC

CV-108 / P1101 Series

CV-100/P1101 Series is a 8.4″ – 24″ TFT-LCD touch panel PC oering 300 nits – 400 nits high brightness and 800 x 600 1920 x 1080 resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CV-100/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also oers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections. Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-100/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically. Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-100/P1101 Series is appropriate for harsh environments and critical applications.

CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
CV-108 / P1101 Series
Teklif Al
PDF
Available Models

CV-108R-R10/P1101-E50-R10: 8.4″ TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch

CV-108C-R10/P1101-E50-R10: 8.4″ TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch

CV-108R-R10/P1101-N42-R10: 8.4″ TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch

CV-108C-R10/P1101-N42-R10: 8.4″ TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch

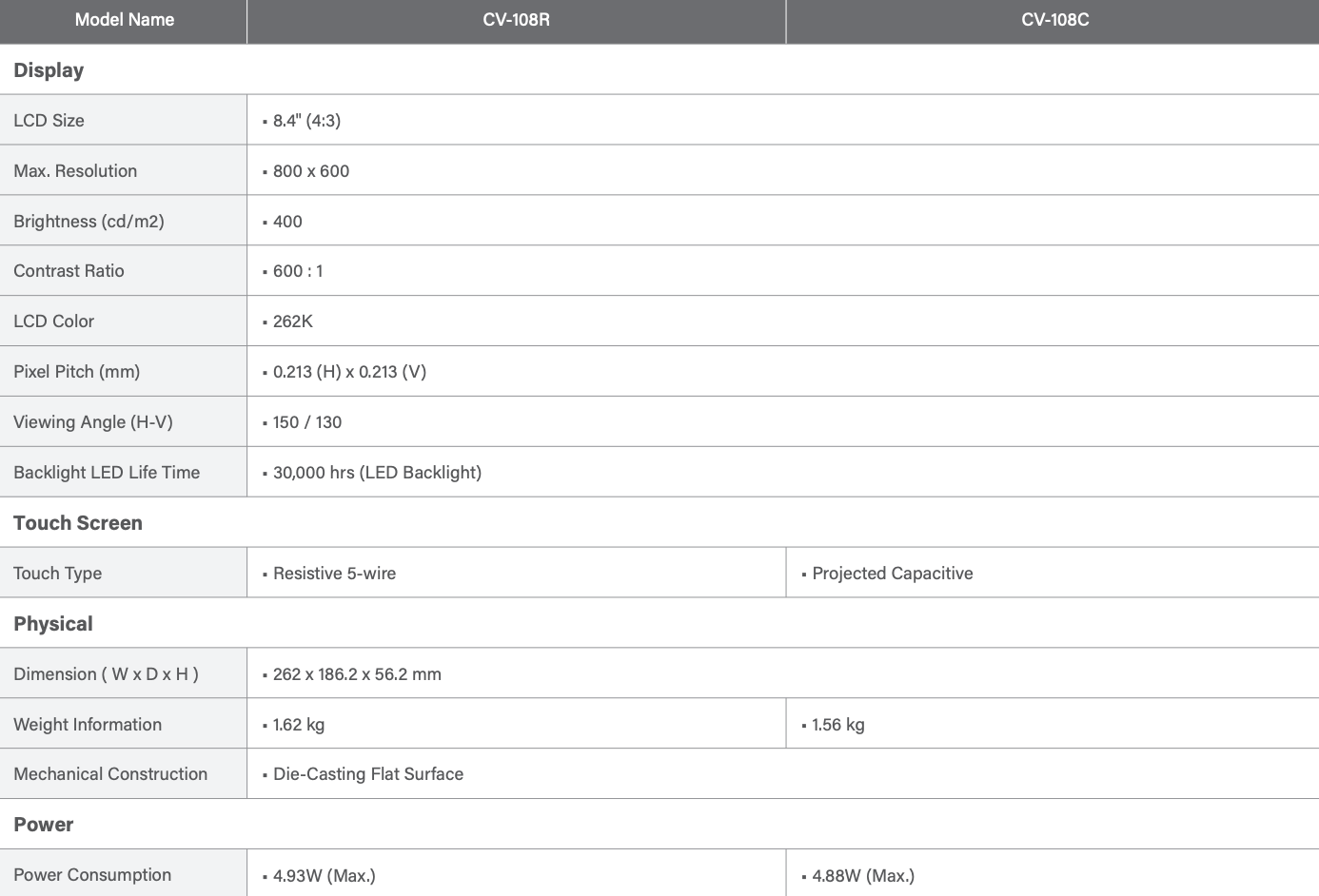

Model Configuration

CV-108R/P1101-E50

CV-108C/P1101-E50

CV-108R/P1101-N42

CV-108C/P1101-N42

Package Checklist

• CV-108/P1101 Series Panel PC x 1

• Panel Mounting Kit x 1

• DIO Terminal Block Connector (Female) x 1

• Thermal Pad (for CPU Thermal Block) x 1

• Power Terminal Block Connector (Female) x 1

• Screw Pack x 1 • Remote Power On/O Terminal Block Connector x 1
