Endüstriyel Mobil Bilgisayar

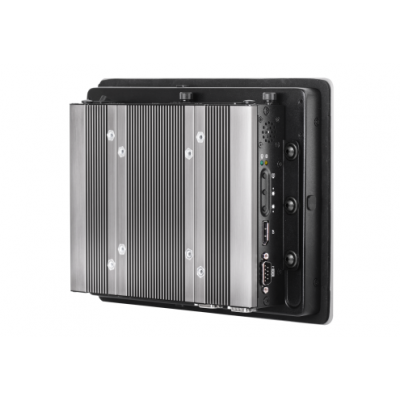

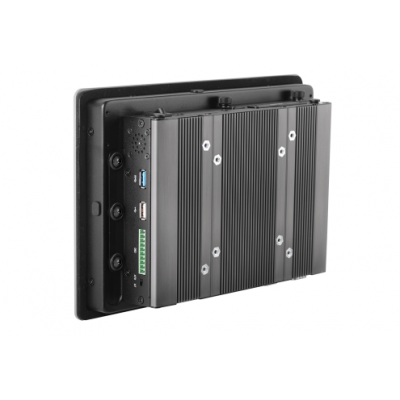

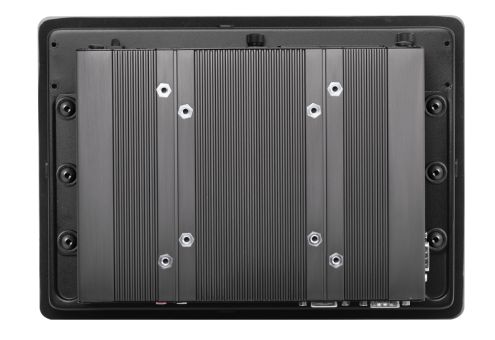

CV-112H/P1001

Intel® Atom™ E3845, SoC

ÜRÜN ÖZELLİKLERİ

  • 12.1″ TFT XGA 4:3 LCD with Resistive 5-wire / Projected CapacitiveTouch
  • Designed with Aluminum Die-Cast Front Frame
  • Onboard Intel® Atom™ E3845 Processor Quad Core 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • 1x 2.5” SATA HDD Bay 1x CFast Card and 1x SIM Card Socket
  • 2x LAN 4x USB 2x COM 1x VGA 1x DisplayPort 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket
  • IP 65 Compliant Front Panel
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 2W Internal Speakers
Endüstriyel Mobil Bilgisayar

CV-112H/P1001

The 12.1″ all-in-one panel PC offers LED backlight LCD with resolution up to 1024×768 (XGA) and 500 nits brightness. CV-112H/P1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame with rugged body structure that can be able to apply in industrial applications. CV-112H/P1001 supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001 carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001 offers extensive I/O including 4x USB, 2x S232/422/485, 1x VGA, 1x DisplayPort and 4 DI / 4DO.

CV-112H/P1001 supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5″ SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001 can be deployed and powered for various industrial applications.

Available Models
Model No. Product Description
CV-112HR/P1001 12.1″ TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
CV-112HC/P1001 12.1″ TFT SVGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
Package Checklist
CV-112H/P1001
√ CV-112H/P1001 Panel PC x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 1
√ Power Terminal Block Connector x 1
√ HDD Screw Pack x 1
√ Mini PCIe Screw Pack x 1
Optional Accessories
Model No. Description
GSM60A12-CIN Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3

Ürün Özellikleri

Model Name CV-112H/P1001
Display
LCD Size 12.1″ (4:3)
Max. Resolution 1024 x 768
Brightness (cd/m2) 500
Contrast Ratio 700 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.24 (H) x 0.24 (V)
Viewing Angle (H-V) 160 / 160
Backlight MTBF 30000 hrs (LED Backlignt)
Touch
Resistive 5-wire V
Projected Capacitive V
Processor System
CPU Intel Atom E3845
Core Number 4
Frequency 1.91 GHz
Cache 2 MB
Watts 10W
Memory
Transfer Rate DDR3L 1066/ 1333MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 1x 204-Pin SODIMM
Graphics
Chipset Intel® HD Graphics
Dual Display VGA + DP

VGA + CDS

DP + CDS

Audio
Interface Realtek ALC888-GR, High Definition Audio
I/O Interface
VGA 1x DB-15 connector, CH7517, Up to 1920×1080@60Hz
DP 1x DP connector, Up to 1920×1080@60Hz
LAN 2x 10/100/1000 Mbps, RJ45

GbE1: Intel I210AT

GbE2: Intel I210AT

Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE

POE+
Serial Port 2x RS-232/422/485, DB9

Support 5V/12V

USB 3.0 1x USB 3.0, Type-A
USB 2.0 3x USB 2.0, Type-A
DIO 4 in/4 out
Line-Out 1x Phone Jack 3.5mm
Mic-In 1x Phone Jack 3.5mm
Power on/off switch V
Reset Button V
AT/ATX Switch V
Remote Power On/Off Connector
External FAN Connector
Storage
SSD/HDD 1x Internal SATA port for 2.5” HDD/SSD
mSATA
CFast 1
Expansion
PCI
PCIe
CFM Interface

(Control Function Module)

Mini PCI Express 1x Full-size Mini PCIe
Universal I/O Bracket
SIM Socket 1(internal)
Antenna Holes 2
Other Function
CDS Function V
OSD Function LCD On/Off, Brightness Up/Down

(With Display Module)

Power Ignition Sensing
Internal Speaker AMP 2W + 2W
Super Cap
Instant Reboot V
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement
Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Physical
Dimension (WxHxD) 345 x 265.3 x 65.5 mm
Weight Information 4.5 kg
Construction Front Panel Die-cast Flat Surface
Mounting Panel/ Wall/Arm/ VESA Mounting
Fanless Design V
Cable-less Design
Jumper-less Design
Protection
Reverse Power Input Protection V
Over Voltage Protection V
Over Current Protection V
ESD Protection V
Operating Stystem
Windows Windows® 10

Windows® 8.1

Windows® 7

Linux Linux® Kernel 3.X
Environment
Operating Temperature Ambient with air flow: -20°C to 70°C

(with Industrial Grade Peripherals)

StorageTemperature -30°C to 80°C
Relative Humidity 90% RH @ 40°C (Non-Condensing)
IP Level IP 65 Compliant Front Panel
EMC CE/ FCC Class A
