Modüler Panel PC

CV-110 / P1301 Series

Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E

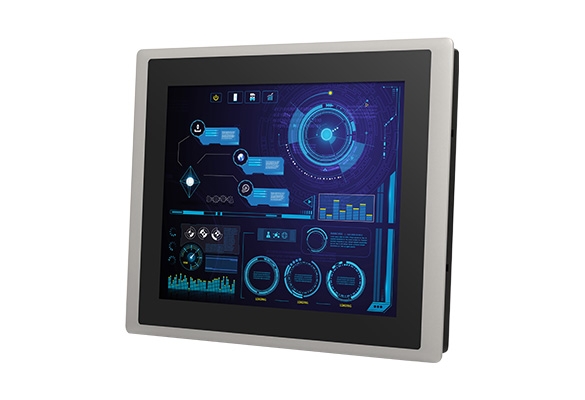

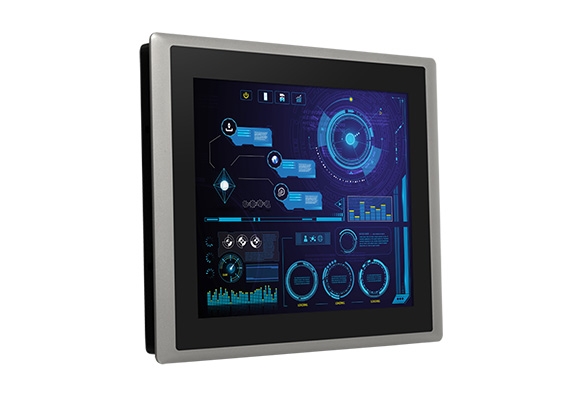

  • 10.4″ TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
  • 1 x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
  • 1 x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
  • 1 x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
  • Front Panel IP65 Compliant
  • Designed with Rugged Aluminum Die-casting Front Bezel

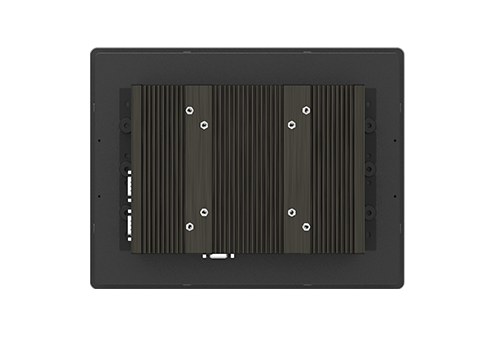

  • Supports Panel / VESA / Rack Mount
  • Supports Cincoze Patent CDS Technology (Patent No. M482908)
Destekleyen İşlemciler
  • CV-110 / P1301 Series
  • CV-110 / P1301 Series
CV-110 / P1301 Series
CV-110 / P1301 Series
CV-110 / P1301 Series
CV-110 / P1301 Series
Teklif Al
PDF
Modüler Panel PC

CV-110 / P1301 Series

Available Models
CV-110R-R10/P1301-N97-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and Resistive 5-wire Touch
CV-110C-R11/P1301-N97-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch
CV-110R-R10/P1301-X7425E-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and Resistive 5-wire Touch
CV-110C-R11/P1301-X7425E-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch
CV-110R-R10/P1301-i3-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and Resistive 5-wire Touch
CV-110C-R11/P1301-i3-R10 10.4″ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch
Package Checklist

• CV-110/P1301 Series Panel PC x 1

• Thermal Pad (for CPU Thermal Block) x 1

• Screw Pack x 2

• Panel Mounting Kit x 6

• Power Terminal Block Connector x 1

• Remote Function Terminal Block Connector x 1

• DIO Terminal Block Connector x 1

• M.2 Key B Type 3052 to 3042 Adapter Bracket x 1

Model Configuration
CV-110R CV-110C P1301-N97 P1301-X7425E P1301-i3
CV-110R/P1301-N97 V — V — —
CV-110C/P1301-N97 — V V — —
CV-110R/P1301-X7425E V — — V —
CV-110C/P1301-X7425E — V — V —
CV-110R/P1301-i3 V — — — V
CV-110C/P1301-i3 — V — — V
