CV-W115 / P2102 Series

Ürünlere Dön

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

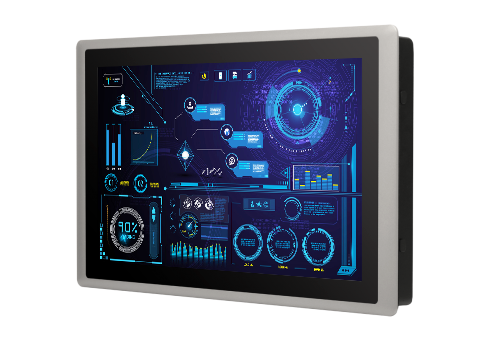

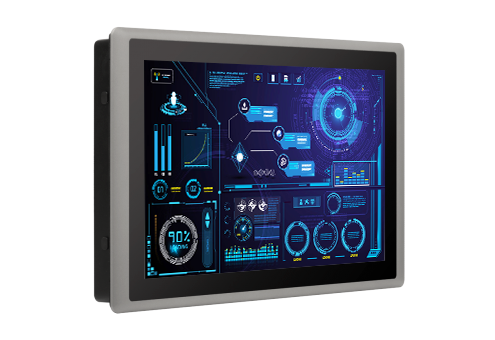

Yüksek Performanslı Panel PC

Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE

15.6″ 1366 x 768 (WXGA) TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch
Onboard 8th Generation Intel® Core™ U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting

Destekleyen İşlemciler

Teklif Al

PDF

Yüksek Performanslı Panel PC

CV-W115 / P2102 Series

The CV-100/P2102 Series is a 12.1″ – 24″ TFT-LCD panel PC with Intel® 8th generation Core™ U Series Processor and is suitable for the high-performance requirement in factory and machine automation applications. The processor brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the panel PC is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. With its slim design, the CV-100/P2102 Series oers extensive I/O to fulfill dierent connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CV-100/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CV-100/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-100/P2102 Series is appropriate for harsh environments and critical industrial applications.

Teklif Al

PDF

Available Models

CV-W115R-R10/P2102-i5-R10: 15.6″ WXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch

CV-W115R-R10/P2102E-i5-R10: 15.6″ WXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch

CV-W115C-R11/P2102-i5-R10: 15.6″ WXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch

CV-W115C-R11/P2102E-i5-R10: 15.6″ WXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch

CV-W115R-R10/P2102-i3-R10: 15.6″ WXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch

CV-W115R-R10/P2102E-i3-R10: 15.6″ WXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch

CV-W115C-R11/P2102-i3-R10: 15.6″ WXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch

CV-W115C-R11/P2102E-i3-R10: 15.6″ WXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch

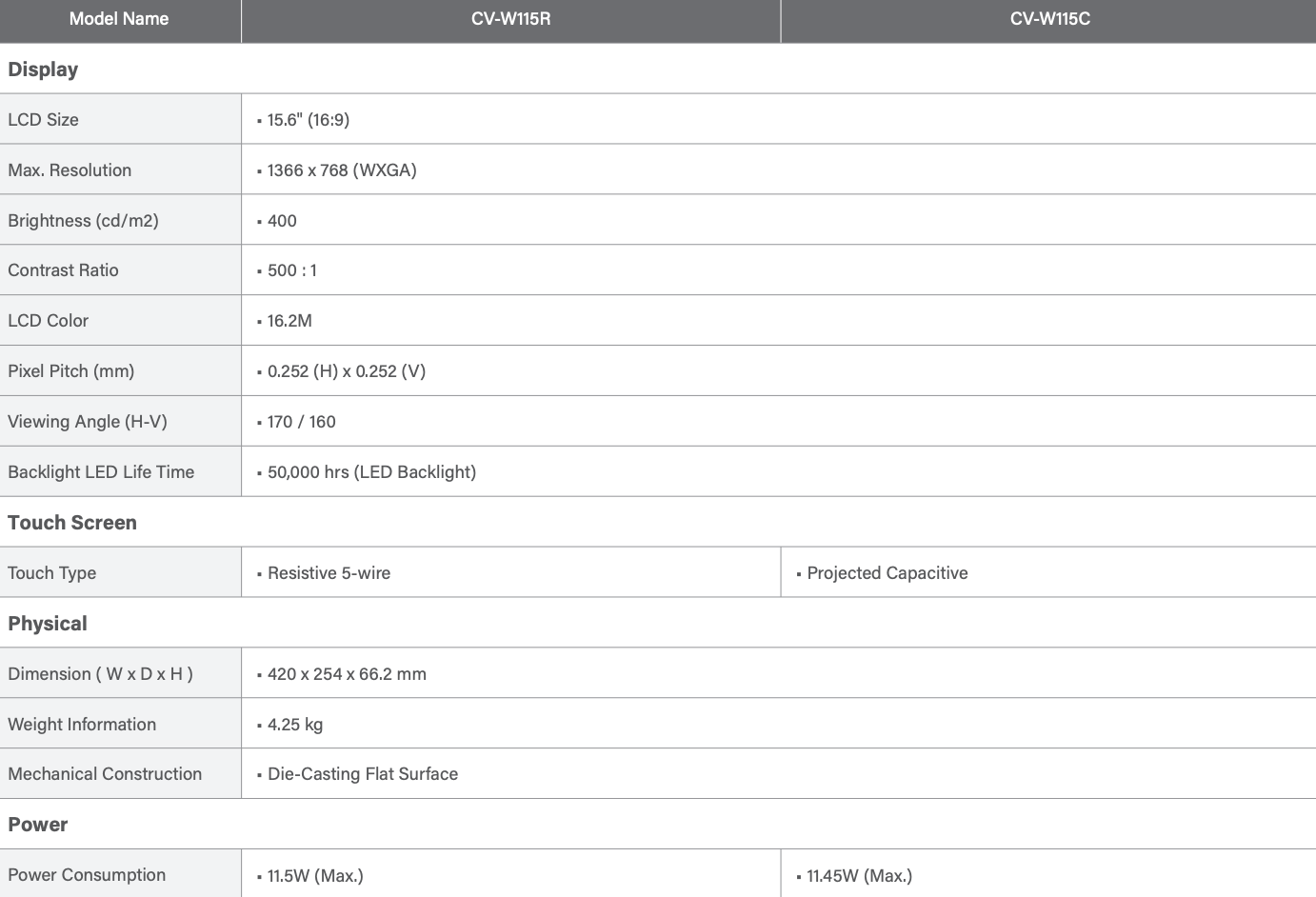

Model Configuration

CV-W115R/P2102

CV-W115C/P2102

CV-W115R/P2102E

CV-W115C/P2102E

Package Checklist

• CV-W115/P2102 Series Panel PC x 1

• Panel Mounting Kit x 1

• DIO Terminal Block Connector (Female) x 2

• PCI / PCIe Card Installation Kit x 1(For P2102E only)

• Power Terminal Block Connector (Female) x 1

• Screw Pack x 5

• Remote Power On/O Terminal Block Connector x 1

• Thermal Pad (for CPU Thermal Block) x 1
