Yüksek Performanslı Panel PC

Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE

17″ TFT SXGA 5:4 LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
Onboard Intel® Alder Lake-P U-Series Core™ Processor
2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
Quad Independent Display (CDS / HDMI / DP / VGA)
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Designed with Aluminum Die-cast Front Bezel
Front Panel IP65 Compliant

Destekleyen İşlemciler

Teklif Al

PDF

Yüksek Performanslı Panel PC

CV-117 / P2202 Series

The CV-100/P2202 series is a high-performance modular industrial panel PC with an Intel® Core™ U-series (Alder Lake-P) processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (1 GbE LAN, USB 3.2 Gen 2×1, COM, and DIO), has Mini PCIe, M.2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements. The rugged CV-100/P2202 series can meet the diverse applications of equipment machine HMI and production process visualization.

Teklif Al

PDF

Ordering Information

CV-117R-R10/P2202-i5-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch

CV-117R-R10/P2202E-i5-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch

CV-117C-R11/P2202-i5-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch

CV-117C-R11/P2202E-i5-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and without Touch

CV-117G-R10/P2202-i5-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and without Touch

CV-117G-R10/P2202E-i5-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch

CV-117R-R10/P2202-i3-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch

CV-117R-R10/P2202E-i3-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

CV-117C-R11/P2202-i3-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

CV-117C-R11/P2202E-i3-R10: 17″ TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and without Touch

CV-117G-R10/P2202-i3-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and without Touch

CV-117G-R10/P2202E-i3-R10: 17″ TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and without Touch

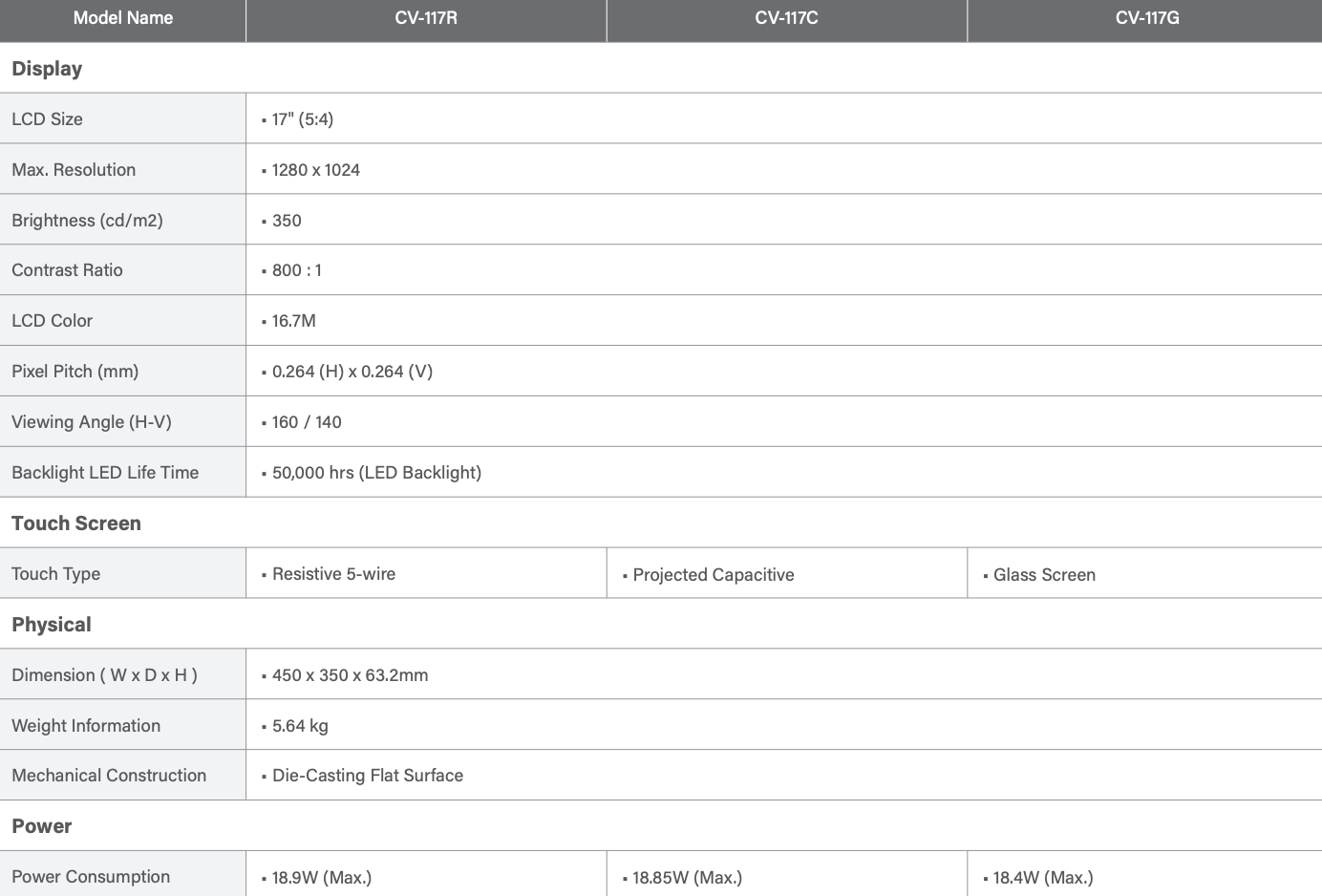

Model Configuration

CV-117R/P2202

CV-117C/P2202

CV-117G/P2202

CV-117R/P2202E

CV-117C/P2202E

CV-117G/P2202E
