1) Modüler Panel Bilgisayarlar

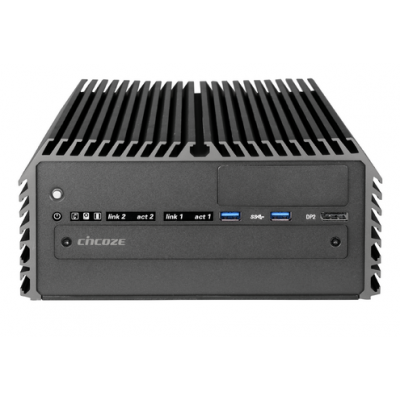

DS-1101

6th Generation Intel® Core™ i3 / i5 / i7 (Skylake-S) High Performance, Modular and Expandable Rugged Embedded Computer with One PCI/PCIe Expansion Slot

ÜRÜN ÖZELLİKLERİ

  • Supports 6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
  • 2x DDR4 SO-DIMM Socket 2133MHz Supports Up to 32 GB
  • Triple Independent Display (DVI-I DP DP/HDMI)
  • 2x 2.5″ SATA HDD/SSD bay (Gen3) Supports RAID 0/1
  • 1x PCI/PCIe Slot with Different Combination of Interfaces
  • 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
  • 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
  • Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 / EN50121-3-2 Certified for Railway Application
  • E-Mark (E13 No.10R-0514229) Certified
1) Modüler Panel Bilgisayarlar

DS-1101

Cincoze DS-1100 Series is a high-performance fanless embedded computer powered by 6th generation Intel® Core™ platform (Skylake-S) supporting a wide range of desktop CPUs (socket-type, LGA1151), and accommodates two DDR4 sockets up to 32 GB which allows DS-1100 Series to fulfill all kinds of high-end computing requirements. DS-1100 Series provides powerful functionalities such as rich I/Os, Power over Serial, Electrical Isolated Serial Ports, Optical Isolated Digital I/O, multiple LAN, Power over Ethernet, M12 connectors, RAID 0/1, Power Ignition Sensing and Instant Reboot. Thanks to Cincoze’s CMI & CFM Technology, it allows you to configure DS-1100 Series according to your specific needs with ready-to-use modules. DS-1100 Series also supports maximum 2 PCI/PCIe expansion slots withdifferent combination of interfaces for expanding all kinds of application add-on cards. DS-1100 Series is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and the integrated SuperCap for battery-free operation. DS-1100 Series is suitable to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.

Available Models
Model No. Product Description
DS-1101 6th Gen. Intel® Core™ i3 / i5 / i7 (Skylake-S) High Performance, Modular and Expandable Rugged Embedded Computer with One PCI/PCIe Expansion Slot
Package Checklist
√ DS-1100 Embedded System x1 √ DVI-I TO VGA Adaptor
√ Utility DVD Driver x1 √ Screw Pack x 1
√ Power Terminal Block Connector x1 √ Wall Mounting Kit x1
√ Remote Power On/Off Terminal Block Connector x2 √ Heat Sink Pack x 1
√ FAN Terminal Block Connector x1
Optional Accessories
Model No. Description
CFM-IGN101 CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm)
CMI-CD100/FB21 CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1101 Front Bezel
CMI-ICD100/FB21 CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1101 Front Bezel

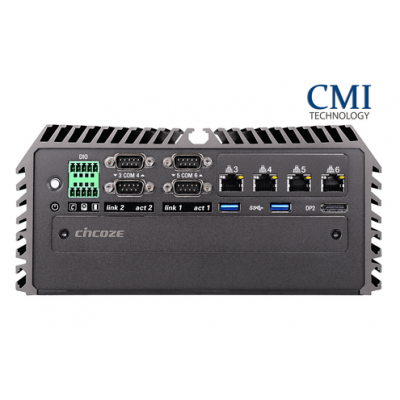

CMI-LAN104/UB0612 CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket (67 x 15 mm)
CMI-PoE104/UB0612 CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket (67 x 15 mm)

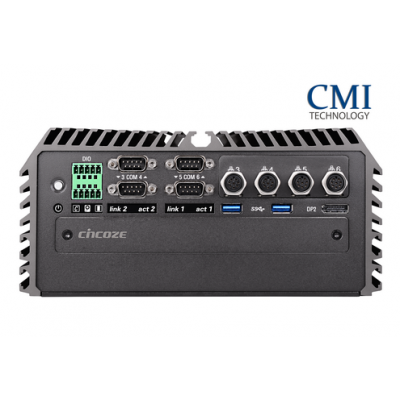

CMI-M12LAN104/UB0610 CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket (67 x 15 mm)
CMI-M12PoE104/UB0610 CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket (67 x 15 mm)
FAN-EX100 External Fan with 4pin Terminal Block Plug, Mounting Bracket
MEC-COM-M212/UB0303 Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (65 x 16 mm)
MEC-FIR-M003/UB0301 Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (65 x 16 mm)
MEC-LAN-M002-R1/UB0311 Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (65 x 16 mm)
MEC-USB-M002/UB0314 Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (65 x 16 mm)
PAH-101 Power Adapter Holder for GS120A24 (200 x 78 x 46 mm)
PAH-201 Power Adapter Holder for GS220A24 (243 x 95 x 57 mm)
GS120A24-CIN1 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, TUBES
GS220A24-CIN1 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES
RC-E16-01 Riser Card with 1x PCIex16 Slot
RC-PI-01 Riser Card with 1x PCI Slot

Ürün Özellikleri

Model Name DS-1101
System
Processor
  • Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP)
  • Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP)
  • Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP)
  • Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP)
  • Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP)
  • Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP)
  • Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP)
  • Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP)
  • Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP)
  • Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)
Chipset Intel Q170
Memory 2x DDR4 2133 MHz SO-DIMM, Up to 32 GB (Un-buffered and Non-ECC)
Graphics
  • Integrated Intel® HD Graphics
  • Three Independent Display
Audio Realtek ALC888-GR, High Definition Audio
BIOS AMI 16 Mbit SPI BIOS
I/O Interface
DVI 1x DVI-I connector, Up to 1920×1080@60Hz
DP 1x DP connector, Up to 3840 x 2160
DP/HDMI 1x DP/HDMI connector, Up to  3840 x 2160
LAN 2x 10/100/1000 Mbps, RJ45

GbE1: Intel I219LM

GbE2: Intel I210AT

Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE

Optional Module

  • .4x 10/100/1000 Mbps, RJ45 Port
  • .4x 10/100/1000 Mbps, M12 Port
PoE+ Optional Module

  • .4x PoE+, Individual port 25.5W, RJ45 Port
  • .4x PoE+, Individual port 25.5W, M12 Port
Serial Port 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9

Optional Module

  • 4x RS-232/422/485, DB9 Connector
  • 4x Electrical Isolated RS-232/422/485, DB9 Connector
USB
  • 6x USB 3.0, Type-A
  • 2x USB 2.0, Type-A
PS/2 Port 1x PS/2, 6-pin mini-DIN Female Connector
Isolated DIO Optional Module

.8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block

Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector 1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block
Storage
SSD/HDD 2x 2.5″ SATA HDD/SSD bay (Gen3)

One Internal, One Front Accessable

Support RAID 0/1, Hot Swap

mSATA 3x mSATA (Shared by Mini-PCIe Socket) (Gen2)
Expansion
PCI/ PCIe 1x PCI/PCIe Expansion slot

Optional Riser Card

.1x PCIex16

.1x PCI

CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 2x CMI Interface for CMI Modules
Mini PCI Express 3x Full-size Mini PCIe

Supports Wireless &  I/O Expansion

Universal I/O Bracket 2x Universal I/O Bracket
SIM Socket 1x SIM Socket
Antenna Holes 2x Antenna Holes
Other
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

.CFM with Delay Time Management and Selectable 12V/24V, Dip Switch

Super Cap Super Cap integrated for CMOS Battery Maintenance-free
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement
Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 24V/5A, 120W
  • AC/DC 24V/9.2A, 220W
Physical
Dimension (WxDxH) 227 x 261 x 108 mm
Weight Information 5.22 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Protection
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3000W
Operating Stystem
Windows Windows 10

Windows 8.1

Windows 7

Linux Kernel 4.4
Environment
Operating Temperature
  • i7-6700TE, i5-6500TE, i3-6100TE, G4400TE, G3900TE (35W TDP): -40°C to 70°C
  • i7-6700, i5-6500, i3-6100, G4400, G3900 (51~65W TDP):-40°C to 50°C                                                          (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 with Extended Temperature Peripherals; Ambient with Air Flow)
Storage Temperature -40°C to 85°C
Relative Humidity 40°C @ 95% RH (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No.10R-0514229) Certified
