Endüstriyel Mobil Bilgisayar

DS-1000

4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset

ÜRÜN ÖZELLİKLERİ

  • Support 4th Gen. Intel® Core™ i3 / i5 / i7 Desktop Processor (LGA1150)
  • Support Intel® Q87 Chipset
  • 2x DDR3 / DDR3L SO-DIMM Max. up to 16 GB
  • Three Independent Display from 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE Port Support Wake-on-LAN and PXE
  • 4x USB 3.0 and 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay
  • 2x mSATA (1x Shared by Mini-PCIe Socket)
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi GSM or I/O Expansion
  • Power Ignition
  • Compliant with EN50155 for Rail Transportation Applications
Endüstriyel Mobil Bilgisayar

DS-1000

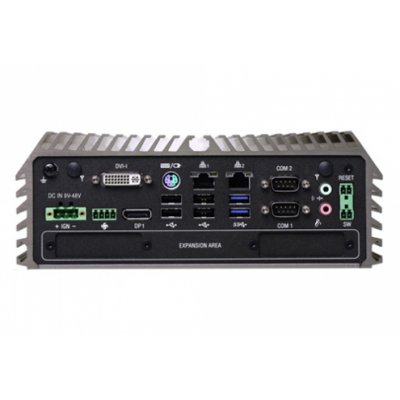

DS-1000 series is a fanless embedded system integrated with 4th generation Intel® Core™ i3 / i5 / i7 LGA1150 socket type processor, Intel® Q87 express chipset, rich I/O, and supports wide range (9~48V) DC power input. The front access designed provides fast change capability of hard drive, CMOS battery, CFast card and SIM card. With flexible installation of internal or external fan, mounting kit, and various interface expansion modules makes DS-1000 series a functional system meets versatile requirements and different usages. In addition, DS-1000 series is a ruggedized and safety system features completely cable-less designed, special heat dissipation, anti-vibration, build in voltage protection, reliable DC power input, reverse power protection, and industrial components selection. Combining superior performance and innovative mechanical design, DS-1000 series is an ideal choice for industrial applications.

Available Models
Model No. Product Description
DS-1000 4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset
Package Checklist
DS-1000
√ DS-1000 Embedded System x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ External Fan Terminal Block Connector x 1
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1
√ Heat Sink Kit x 1
Optional Accessories
Model No. Description
GS120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
59381560000E MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM
N0307-140507-01 DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm

Ürün Özellikleri

Model Name DS-1000
Processor System
CPU Intel® 4th Generation

G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported

Frequency 2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz
Core Number 2 / 2 / 2 / 4
BIOS AMI 128Mbit SPI
Chipset Intel® Q87
Memory
Technology DDR3 / DDR3L 1333MHz / 1600MHz

(un-buffered and non-ECC)

Max. Capacity 16 GB
Socket 2x 204-Pin SO-DIMM
Display
VGA Yes (with optional split cable)
DDI (HDMI/DVI/DisplayPort) 1x DVI

2x DisplayPort

Multiple Display Triple
Expansion
PCI
PCIe
Mini PCIe 2x Full-size Mini PCIe
Ethernet
Controller GbE1: Intel® 82583V

GbE2: Intel® i217LM

Support Wake-on-LAN and PXE

PoE
Speed 10/100/1000 Mbps
Audio
Codec Realtek ALC888S
Connector 1x Mic-in

1x Speak-out

WatchDog Timer Software Programmable

Supports 1~255 sec. System Reset

Storage
SSD / HDD 2x 2.5″ SATA SSD/HDD Bay
mSATA 2x mSATA (1x Shared by Mini-PCIe Socket)
CompactFlash/CFast 1x CFast
SIM Socket 1
I/O Ports
USB 3.0 4
USB 2.0 4
DIO 4 in / 4 out
COM Port 6x RS-232/422/485
PS/2 1x KB/MS
Antenna Hole 2
Power Switch 1
AT/ATX Switch 1
External Fan Connector Yes
Remote Power On/Off and Remote Power Reset Yes
Universal I/O Bracket 2
Power
Power Type AT, ATX
Power Supply Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 24V/5A, 120W
Environment
Operating Temperature Ambient with air flow: -10°C to 60°C  (with Industrial Grade Peripherals)
Storage Temperature -20°C to 80°C
Relative Humidity 10%~95% (non-condensing)
Physical
Dimension (WxDxH) 227 x 261 x 85.8 mm
Weight 4.7 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall
Operating System
  • Windows® 10
  • Windows® 8
  • Windows® Embedded 8 Standard
  • Windows® 7
  • Windows® Embedded Standard 7
  • Ubuntu 14.04
Certification
  • CE
  • FCC Class A
  • EN 50155
  • EN 50121-3-2
