VBOX-3121

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

Intel Gen 6 Core i7-6600U
Wireless support LTE, WLAN, GPS, GSM/GPRS, BT (Option)
9V – 36V DC Power Input
Smarter Vehicle Power Ignition for Variety Vehicle
4 x RS-232/422/485 (for i7 and i5)
2 x DI / 2 x DO (12V / 100mA)

Destekleyen İşlemciler

Teklif Al

PDF

Endüstriyel Mobil PC

VBOX-3121

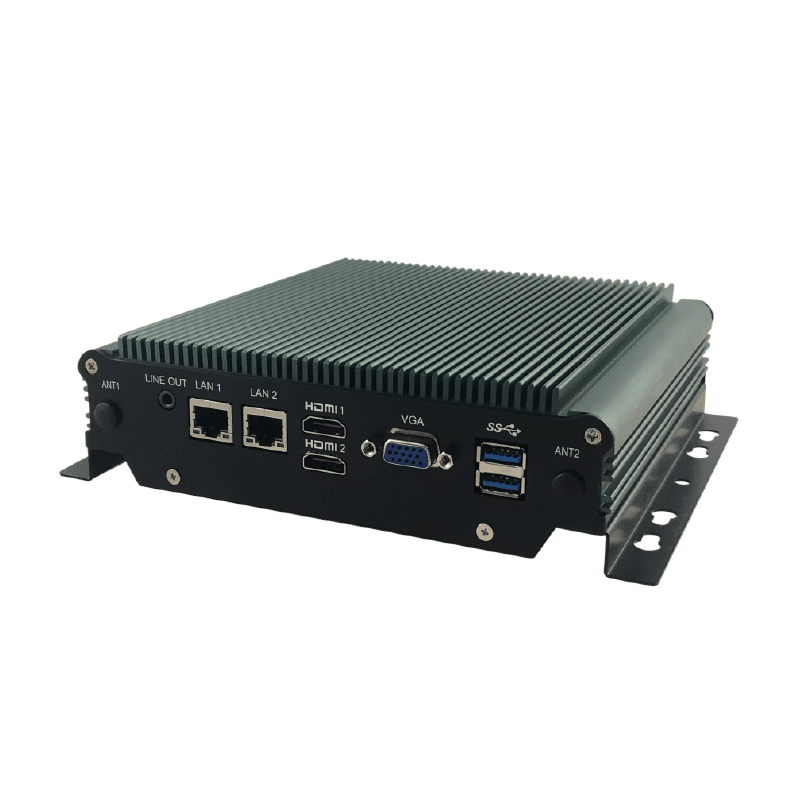

The VBOX-3121 is powered by Intel Gen 6 i7-6600U with HD Graphic 520/2 x LAN/2 x HDMI®/VGA with 3 x RS-232/DC 9-36V Input, and up to 16GB DDR4 SO-DIMM In-Vehicle Computer. It provides high-performing, yet cost-effective, multi-purpose devices for public transportation, police patrol and railway management. Additionally, VBOX-3121 is designed for fleet management, mobile DVR, driver behavior record and in-vehicle digital signage. It can effectively support vehicles in bad weather and extreme working conditions, such as snowplow, train, and stacker operations. Furthermore, there are two options for the case size based on the customers’ needs: 250 x 167.6 x 54 mm (for i7 and i5) and 182 x 167.6 x 54mm (for i3 and C1).

Teklif Al

PDF

Sipariş Bilgileri

VBOX-3121

Endüstriyel Mobil PC

VBOX-3121

VBOX-3121 Datasheet

Daha Fazla

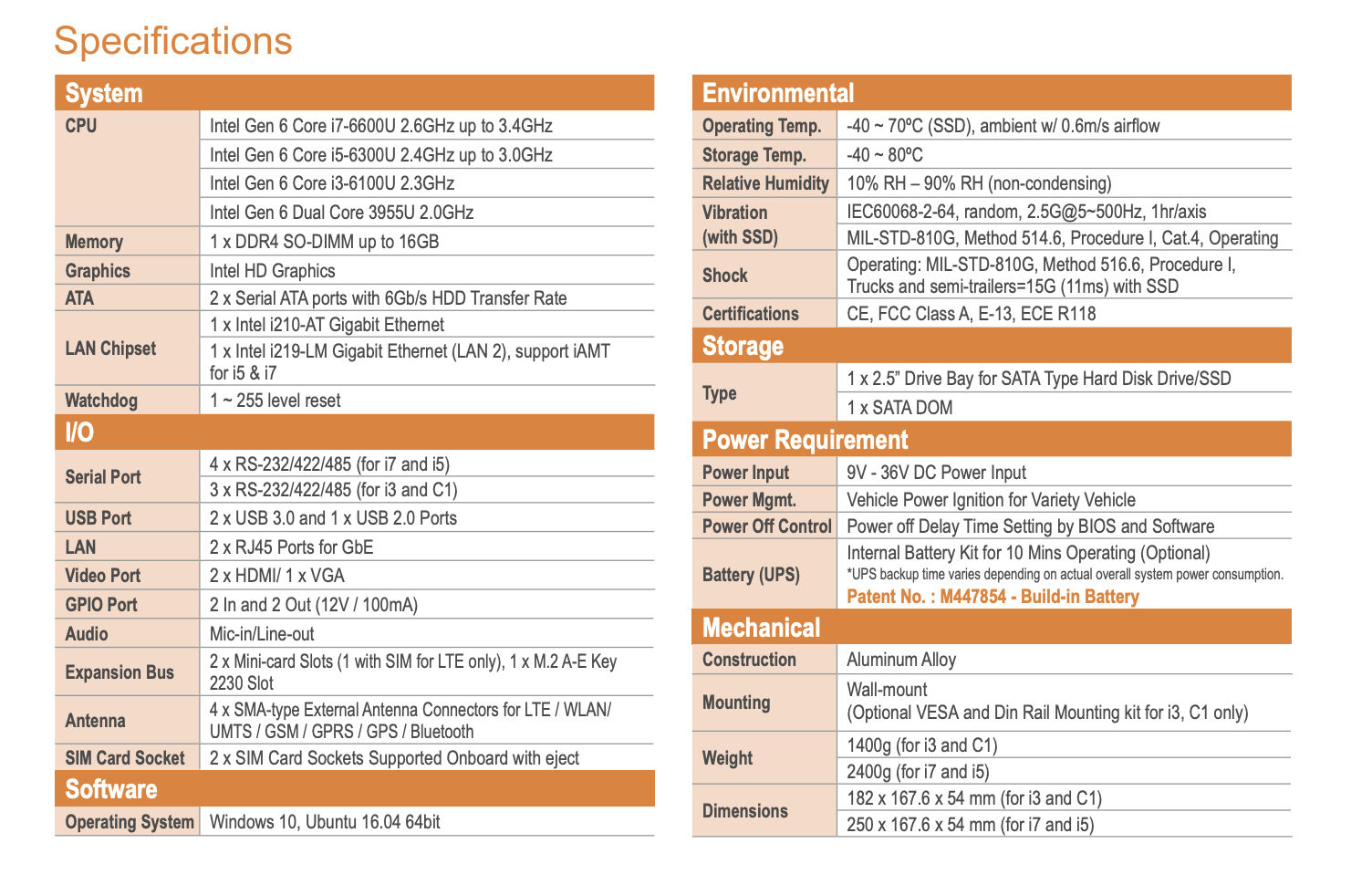

Ürün Özellikleri

Benzer Ürünlerimiz

VBOX-3611-4L-D5G

Intel Gen 6 (Skylake-U) Core i7-6600U CPU Intel Gen 6 (Skylake-U) Core i5-6300U CPU Intel Gen 6 (Skylake-U) Core i3-6100U CPU Intel Gen 6 (Skylake-U) Celeron 3955U CPU CPU Socket type : FCBGA1356

VBOX-3611-4L-D5G, as an In-Vehicle Computer, is powered by Intel Gen 6 Core i7-6600U CPU and features wide range 9~48V DC power inputs, smart vehicle power ignition, and adjustable power management.

VBOX-3611-POEX

Intel® Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel® Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel® Gen 6 Core i3-6100U 2.3GHz Intel® Gen 6 Dual Core 3955U 2.0GHz

The VBOX-3611-POEX System is powered by Intel Gen 6 Core i7-6600U with 4x POE ports In-Vehicle Computer, wireless support LTE, 3.5G w/ Dual SIM cards (Auto-switch).

VBOX-3611-4L

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

The VBOX-3611-4L is powered by Intel Gen six Core i7-6600U CPU with four GbE LAN In-Vehicle Comptuer.

VBOX-3131-2S

Intel® N3060 Dual Core CPU up to 2.48GHz

VBOX-3131 is an ultra-compact size fanless In-Vehicle Computer with 5G connectivity. It utilizes Intel® Celeron® N3060 Dual-Core CPU up to 2.48GHz.

VBOX-3620-M12X

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

The VBOX-3620-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated input In-Vehicle Computer.

VBOX-3611-IP65

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

The VBOX-3611-IP65 is powered by Intel Gen6 Core i7-6600U CPU In-Vehicle Computer. With CE, FCC Class A and E-13 certifications, the VBOX-3611-IP65 is designed and manufactured to withstand dust, moisture, and temperature changes.

VBOX-3611

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

Wireless Support LTE, 3.5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, GSM/GPRS, Bluetooth

RBOX-1000-M12X

Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz 2 Cores/ 4 Threads Benchmark Score up to 4867 (Based on PerformanceTest V9) VT-x and VT-d Supported

The RBOX-1000-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE(optional PoE) In-Vehicle Computer / EN50155 Railway Applications.

VBOX-3121

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

The VBOX-3121 is powered by Intel Gen 6 i7-6600U with HD Graphic 520/2 x LAN/2 x HDMI®/VGA with 3 x RS-232/DC 9-36V Input, and up to 16GB DDR4 SO-DIMM In-Vehicle Computer.

VBOX-3611-M12X

Intel® Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel® Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel® Gen 6 Core i3-6100U 2.3GHz Intel® Gen 6 Dual Core 3955U 2.0GHz

Wireless support LTE, 3.5G w/ Dual SIM Card, WLAN, GPS Dead Reckoning, GSM/GPRS, BT 9V~36V DC Power Input

VBOX-3630RP-M12X

11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz 11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz 11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz

VBOX-3630R(P)-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz.

VBOX-3630P

11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz 11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz 11th Gen Intel® Core™ i3-1115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz

VBOX-3630 is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz.

IBOX-500

NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3) Integrated 4 x Arm Cortex@-A35 Cores Up to 1.2 GHz 1 x Am Cortex@-M4F Core Up to 264 MHz

IBOX-500 is an ultra-compact fanless in-vehicle Computer with 5G or LTE connectivity. It utilizes NXP i.MX 8QuadXPlus Automotive AEC-Q100 Grade 3 Processor up to 1.2 GHz.

VBOX-3630RP-M12X

VBOX-3630R(P)-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz.

VBOX-3630

Intel® 11th Gen Core™ i7-1185G7E 1.8GHz up to 4.4GHz Intel®11th Gen Core™ i5-1145G7E 1.5GHz up to 4.1GHz Intel® 11th Gen Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz

VBOX-3630 is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz.

VBOX-3121-NX

Intel® Core™ i3-6100U 2.3GHz Intel® Celeron® Processor 3955U 2.0GHz

The VBOX-3121-NX is powered by Intel Gen 6 processor with HD Graphic 520 /2 x LAN/2 x HDMI/VGA with 2 x RS-232/ DC 9-60V Input, and up to 16GB DDR4 SO-DIMM In-Vehicle Computer.

VBOX-3122

Intel® 11th Gen Core™ i7-1185G7E up to 2.8 GHz* Intel® 11th Gen Core™ i5-1145G7E up to 2.6 GHz* Intel® 11th Gen Core™ i3-1115G4E up to 3.0 GHz* Intel® Celeron® 6305E 1.8 GHz *CPU TDP is configured at 15W as the default setting.

The VBOX-3122 Series is a robust line of in-vehicle computers designed for high-performance and reliable operation in challenging mobile environments.

VBOX-3123-R2312

AMD Ryzen™ Embedded R2312 2C/4T Processor

The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics.

GM-1100

BTL-S/14/13/12. Nesil Intel® Core™ Serisi Gömülü GPU Bilgisayar, 1x MXM 3.1 GPU Genişletme Soketini Destekler

Supports 1x MXM 3.1 Type A/B form factor GPU module expansion. 1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector 1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion

DV-1100

14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion

DX-1200

14/13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB Quad Independent Display (HDMI / DP / DVI-I) 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module

DS-1400
DS-1401
DS-1402

BTL-S/14/13/12. Nesil Intel Core Serisi İşlemciler, Yüksek Performanslı ve PCIe Genişletilebilir Dayanıklı Gömülü Bilgisayar, 2 adede kadar PCI/PCIe Genişletme Kartını Destekler

2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB 2x GbE LAN and optional 2x 10GbE LAN 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD Up to 2x PCI/PCIe expansion slots

DX-1000

7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

The Cincoze DX-1000 is a rugged workstation series based on LGA 1151 socket and Intel® C236 chipset supporting 7th/6th generation Intel® Xeon® and Intel® Core™ Processors, DX-1000 Series supports 4K resolution through Intel® Gen9 graphics engine with two DDR4 SO-DIMM sockets up to 64GB memory which delivers outstanding computing performance for high-end applications.

VBOX-3130

Intel® N3710 Quad Core CPU up to 2.56GHz Intel® N3160 Quad Core CPU up to 2.24GHz Intel® N3060 Dual Core CPU up to 2.48GHz

The VBOX-3130 is an in-vehicle computer that is powered by Intel® Pentium® Processor with 9~36V DC power input.

VBOX-3600-M12 (EOL)

Intel Celeron / Core i3/i7

VBOX-3600 (EOL)

Intel Gen3 Core i7 CPU 1.7GHz with HD 4000 GPU On-Board Computer

VBOX-3200 (EOL)

AMD G-T56N Dual Core APU with Radeon HD 6320 On-Board Computer

VBOX-3200-IP65 (EOL)

AMD G-T56N Dual Core APU with Radeon HD 6320 IP65 On-Board Computer

VBOX-3150 (EOL)

Intel Haswell Celeron 2980U/i3-4010U CPU with 2 x PoE/ 1 x GbE with vPro/ 4 x COM In-Vehicle Computer

VBOX-3120 (EOL)

Intel Haswell Dual Core 2980U 1.6GHz CPU In-Vehicle Computer with 9~36V DC Input

VBOX-3120-3S (EOL)

Intel Haswell Dual Core 2980U 1.6GHz

3 x RS-232 (COM1 & COM2 with RS-232/422/485) ,2 x USB 3.0 and 1 x USB 2.0 Ports , 2 x RJ45 ports for GbE, 1 x HDMI and DVI-I ,2 In and 2 Out (12V / 100mA), e-Mark Certificate

VBOX-3110 (EOL)

Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with 9~32V DC Input In-Vehicle Computer
