VBOX-3123-R2312

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

AMD Ryzen™ Embedded R2312 2C/4T Processor

• AMD Ryzen™ Embedded R2312 2C/4T Processor
• Dual HDMI® supports resolution specified in HDMI® 2.0b
• 1 x M.2 2280 M Key supports NVMe or SATA SSD
• 1 x M.2 3042/52 B Key supports USB 3.2 for WWAN w/ Dual SIM
• 1 x M.2 2230 E Key supports PCIe and USB 2.0 for Wi-Fi/BT
• 9 – 60VDC Wide Power Input

Teklif Al

PDF

Endüstriyel Mobil PC

VBOX-3123-R2312

The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU core count¹, Radeon™ graphics supporting up to 4 independent 4K displays and up to 2X the I/O connectivity² targeting Industrial and Robotics Systems, Machine Vision, IoT, Thin Clients and more.

With thermal design power (TDP) spanning from 12W to 54W, AMD Ryzen™ Embedded R2000 Series SoCs provide thermal agility for compact system designs to help streamline design efficiencies and BOM costs. They provide pin-to-pin package compatibility and a common software foundation with legacy AMD Ryzen™ Embedded R1000 and V1000 Series SoCs while delivering significant performance and connectivity boosts from previous R-Series families.

Teklif Al

PDF

Sipariş Bilgileri

VBOX-3123-R2312

Endüstriyel Mobil PC

VBOX-3123-R2312

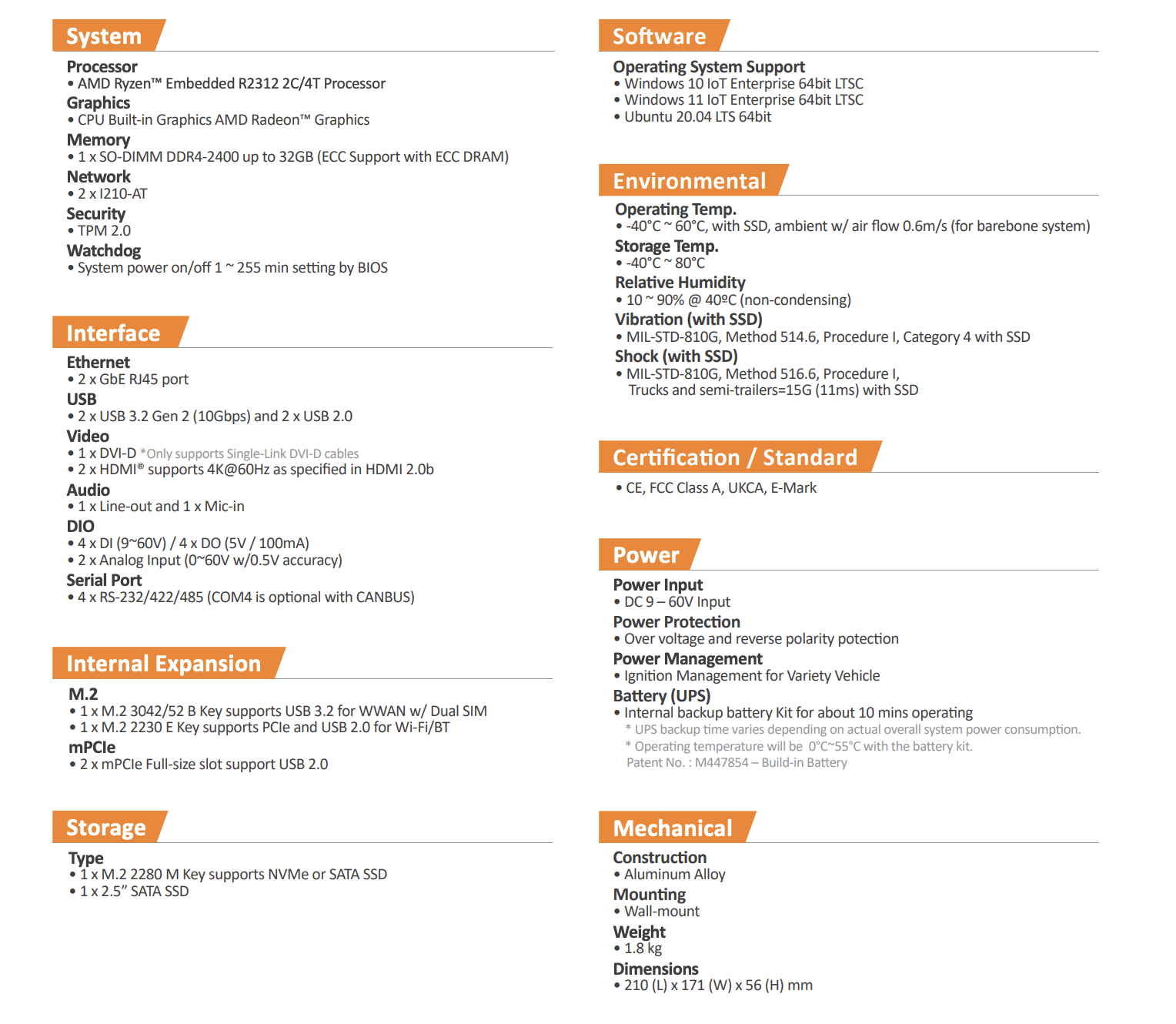

VBOX-3123-R2312 Datasheet

Daha Fazla

Ürün Özellikleri
