VBOX-3620-M12X

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz

Intel Core i7-6600U / i5-6300U / i3-6100U
Wireless support LTE w/ SIM Card, WLAN, GPS Dead Reckoning, BT (Option)
3 x GbE Including 1 with iAMT
Isolated wide Input Range 9 – 36VDC
Max. 8 x SIM card Sockets
Dual Hot Swappable SATA Storage, RAID 0, 1, 5
EN50155 Tx temperature and class S2 interruption
E-13 and ECE-R118 Certified

Destekleyen İşlemciler

Teklif Al

PDF

Endüstriyel Mobil PC

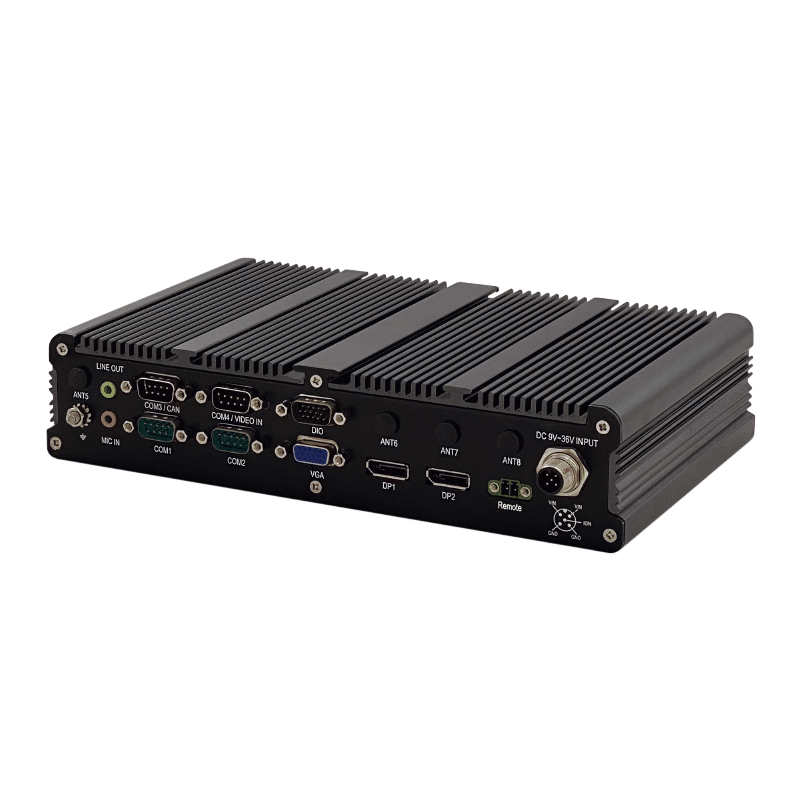

VBOX-3620-M12X

The VBOX-3620-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated input In-Vehicle Computer. VBOX-3620-M12X provides three GbE, including one with iAMT. It offers wireless support LTE with SIM Card, GPS, and BT (optional). It features smart vehicle power ignition for a variety of vehicles, and it can be adapted to all kinds of vehicle management systems like those with GPS, fleet monitoring systems, and vehicle repairing systems. It can manage a vehicle’s internal capabilities to accurately assess and track a vehicle’s internal hardware and software states, forward-thinking usage, and all fleet movements.

Teklif Al

PDF

Sipariş Bilgileri

VBOX-3620-M12X

Endüstriyel Mobil PC

VBOX-3620-M12X

VBOX-3620-M12X Datasheet

Daha Fazla

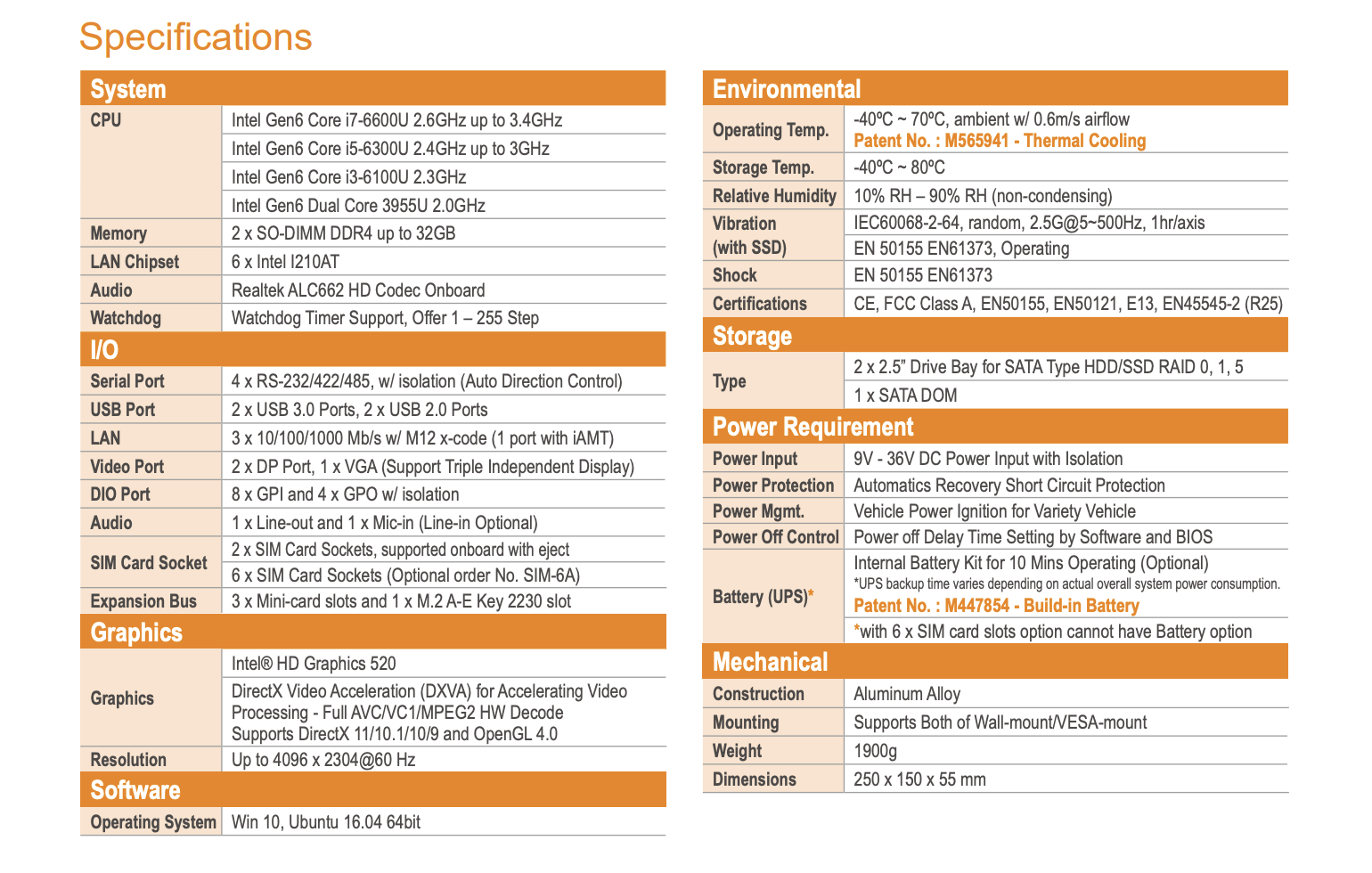

Ürün Özellikleri
