DS-1000

DS-1000

4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset

GENEL BAKIŞ

DS-1000 series is a fanless embedded system integrated with 4th generation Intel® Core™ i3 / i5 / i7 LGA1150 socket type processor, Intel® Q87 express chipset, rich I/O, and supports wide range (9~48V) DC power input. The front access designed provides fast change capability of hard drive, CMOS battery, CFast card and SIM card. With flexible installation of internal or external fan, mounting kit, and various interface expansion modules makes DS-1000 series a functional system meets versatile requirements and different usages. In addition, DS-1000 series is a ruggedized and safety system features completely cable-less designed, special heat dissipation, anti-vibration, build in voltage protection, reliable DC power input, reverse power protection, and industrial components selection. Combining superior performance and innovative mechanical design, DS-1000 series is an ideal choice for industrial applications.

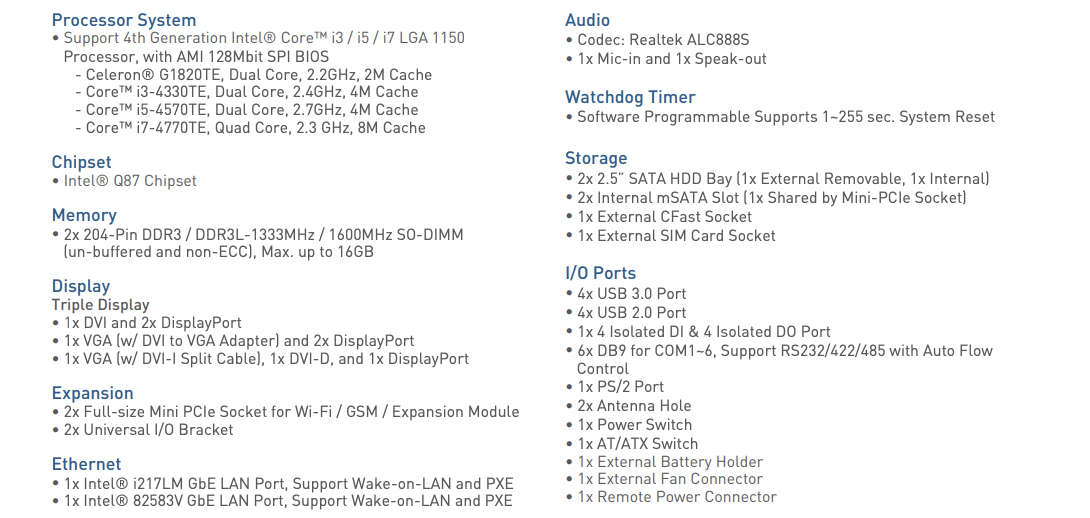

ÖZELLİKLER

Model Name

DS-1000

Processor System



CPU

Intel® 4th Generation

G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported

Frequency

2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz

Core Number

2 / 2 / 2 / 4

BIOS

AMI 128Mbit SPI

Chipset

Intel® Q87

Memory



Technology

DDR3 / DDR3L 1333MHz / 1600MHz

(un-buffered and non-ECC)

Max. Capacity

16 GB

Socket

2x 204-Pin SO-DIMM

Display



VGA

Yes (with optional split cable)

DDI (HDMI/DVI/DisplayPort)

1x DVI

2x DisplayPort

Multiple Display

Triple

Expansion



PCI

-

PCIe

-

Mini PCIe

2x Full-size Mini PCIe

Ethernet



Controller

GbE1: Intel® 82583V

GbE2: Intel® i217LM

Support Wake-on-LAN and PXE

PoE

-

Speed

10/100/1000 Mbps

Audio



Codec

Realtek ALC888S

Connector

1x Mic-in

1x Speak-out

WatchDog Timer

Software Programmable

Supports 1~255 sec. System Reset

Storage



SSD / HDD

2x 2.5" SATA SSD/HDD Bay

mSATA

2x mSATA (1x Shared by Mini-PCIe Socket)

CompactFlash/CFast

1x CFast

SIM Socket

1

I/O Ports



USB 3.0

4

USB 2.0

4

DIO

4 in / 4 out

COM Port

6x RS-232/422/485

PS/2

1x KB/MS

Antenna Hole

2

Power Switch

1

AT/ATX Switch

1

External Fan Connector

Yes

Remote Power On/Off and Remote Power Reset

Yes

Universal I/O Bracket

2

Power



Power Type

AT, ATX

Power Supply Voltage

9~48VDC

Connector

3-pin Terminal Block

Power Adaptor

Optional AC/DC 24V/5A, 120W

Environment



Operating Temperature

Ambient with air flow: -10°C to 60°C  (with Industrial Grade Peripherals)

Storage Temperature

-20°C to 80°C

Relative Humidity

10%~95% (non-condensing)

Physical



Dimension (WxDxH)

227 x 261 x 85.8 mm

Weight

4.7 kg

Construction

Extruded Aluminum with Heavy Duty Metal

Mounting

Wall

Operating System

  • Windows® 10
  • Windows® 8
  • Windows® Embedded 8 Standard
  • Windows® 7
  • Windows® Embedded Standard 7
  • Ubuntu 14.04

Certification

  • CE
  • FCC Class A
  • EN 50155
  • EN 50121-3-2

SİPARİŞ BİLGİLERİ

Available Models

Model No.

Product Description

DS-1000

4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset


Package Checklist

DS-1000

√ DS-1000 Embedded System x 1

√ Utility DVD Driver x 1

√ DIO Terminal Block Connector x 2

√ Power Terminal Block Connector x 1

√ Remote Power Terminal Block Connector x 2

√ External Fan Terminal Block Connector x 1

√ DVI-I to VGA Adapter x 1

√ Screw Pack x 1

√ Wall Mount Kit x 1

√ Heat Sink Kit x 1


Optional Accessories

Model No.

Description

GS120A24-CIN

Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch

SL2-SL3

US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M

SL6-SL3

EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M

QP026-SL3

UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M

59381560000E

MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM

N0307-140507-01

DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm







İNDİRMELER
Dosya Adı Eklenme Tarihi Dosya
DS-1000 Datasheet 01.08.2017
